User's Guide
SPS-2460-xx
External Power Supply
24-60 VDC and 24-42 VAC rms
SPS-2460-CC
SPS-2460-PS
The Transition Networks SPS-2460-xx external power supply provides a wide range of
input power (24-60 VDC and 24-42 VAC rms) to accommodate most industrial, telecom,
and commercial applications. The SPS-2460-xx can deliver 12 watts of power, enough to
power all Transition Networks stand-alone media converters as well as the single-slot (p/n
CPSMC0100-20x) and the dual-slot (p/n CPSMC0200-2xx) chassis.
The 24-60 VDC and 24-42 VAC rms inputs allow installing the SPS-2460-xx external
power supply in all popular telecom, commercial, industrial applications, as well as HVAC
and building control environments.

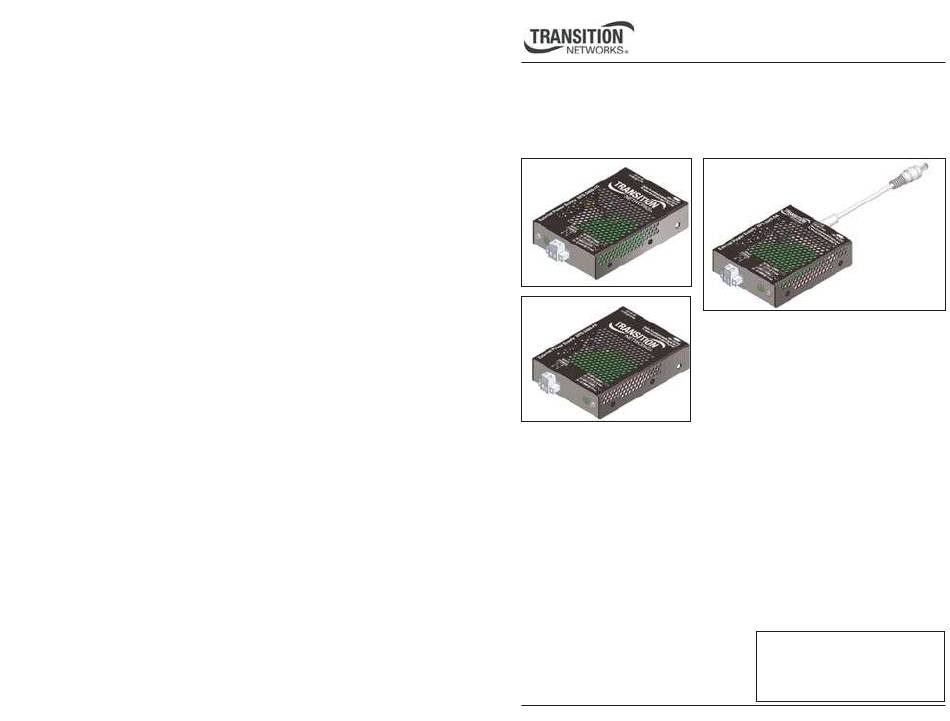

The 'piggy-back' feature of the SPS-2460-PS, and SPS-2460-CC allows these power
supplies to physically attach directly to the media converter chassis, eliminating the power
cable commonly found between the power supply and the media converter.
o SPS-2460-CC (Conversion Center™)
o SPS-2460-PS (PointSystem™)
o SPS-2460-SA (Stand-Alone)
SPS-2460-SA
Installation . . . . . . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . . .9
Compliance Information . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . . . .11
Advertisement
Table of Contents
Related Manuals for Transition Networks SPS-2460 Series
Summary of Contents for Transition Networks SPS-2460 Series
-
Page 1: Table Of Contents
(24-60 VDC and 24-42 VAC rms) to accommodate most industrial, telecom, and commercial applications. The SPS-2460-xx can deliver 12 watts of power, enough to power all Transition Networks stand-alone media converters as well as the single-slot (p/n CPSMC0100-20x) and the dual-slot (p/n CPSMC0200-2xx) chassis. -
Page 2: Installation
SPS-2460-xx Installation Installation — Continued Required disconnect All Installation and service must be performed by qualified service personnel. Read and follow all warning notices and instructions marked on the power supply or WARNING: A readily accessible, suitable National Electrical Code (NEC) or local included in the manual. - Page 3 Connect the barrel connector on the SPS-2460-SA to the barrel connector of the media converter as shown below. The SPS-2460-SA is designed to plug into any style Transition Networks stand-alone media converter. Barrel Connector SPS-2460 Stand-Alone (SA) Media Converter The SPS-2460-CC is designed to mate with Transition Networks Conversion Center™...
- Page 4 SPS-2460-xx Installation — Continued Installation — Continued Supplying Power to the SPS-2460-xx SPS-2460-CC (Conversion Center™) CAUTION: TURN OFF the main power source before making connection to the SPS- Remove the left-rear and right-rear screws from the Conversion Center™ 2460-xx external power supply. Failure to observe this caution could result in damage media converter.
-
Page 5: Maintenance
SPS-2460-xx Technical Specifications Maintenance For use with Transition Networks Model SPS-2460-xx or equivalent. Replacing the Fuse Dimensions: SPS-2460-SA - 3.8L x 3.1W x 1.0 in H (96.5 x 79 x 25 mm) CAUTION: The external power source must be TURNED OFF when replacing the SPS-2460-CC - 4.5L x 3.1W x 1.04 in H (114 x 79 x 26 mm) -
Page 6: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Purpose: To declare that the SPS-2460-xx to which this declaration refers is in Parliament and of the Council of 27 January 2003, Transition Networks will conformity with the following directive(s) and standard(s): accept post usage returns of this product for proper disposal. - Page 7 © 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means – graphic, electronic, or mechanical – without written permission from Transition Networks. Printed in the U.S.A.
