The Transition Networks CPSMP-130 power supply is a 48-VDC slide-in-module
that provides optional, redundant power to the CPSMC1310-100 13-slot
PointSystem™ chassis and any installed media converter slide-in-modules and
management modules.
The Transition Networks CPSMP-140 power supply is a 24-VDC slide-in-module
that provides optional, redundant power to the CPSMC1320-100 13-slot
PointSystem™ chassis and any installed media converter slide-in-modules and
management modules.

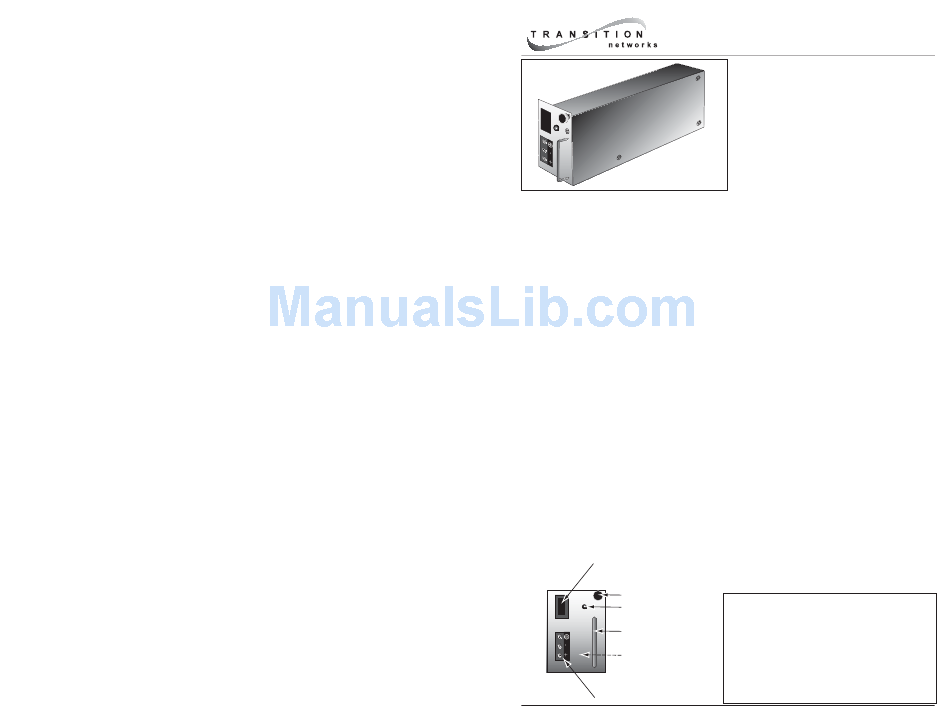

The figure below illustrates the components of both types of power supplies:
•
An On/Off switch that, when set to "I", allows the power supply module
to supply power to the chassis, and any installed modules.
•
A panel fastener screw that secures the power supply module to the
chassis.
•
A power LED indicator.
•
A handle for installing and removing the power supply module to/from
the chassis.
•
A fuse installed on the circuit board inside the power supply module's
housing.
•
A set of three (3) external power connectors that distribute power from an
external DC outlet to a chassis ground connector, a positive (+)
connector, and a negative (-) connector on the power supply module.
On/Off Switch
Panel Fastener Screw
I
Power LED
0
Handle
Fuse
(on the circuit board
External Power Connectors
User's Guide
CPSMP-130
48-VDC Power Supply Module
CPSMP-140
24-VDC Power Supply Module
13-Slot PointSystem™ Accessory
Connect to External Power . . . . . . . . .4
Replace the Fuse . . . . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .10
Troubleshooting . . . . . . . . . . . . . . . .11
Contact Us . . . . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . . . . .12
