Transition Networks CPSMP-120 User Manual

Ac power supply module
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

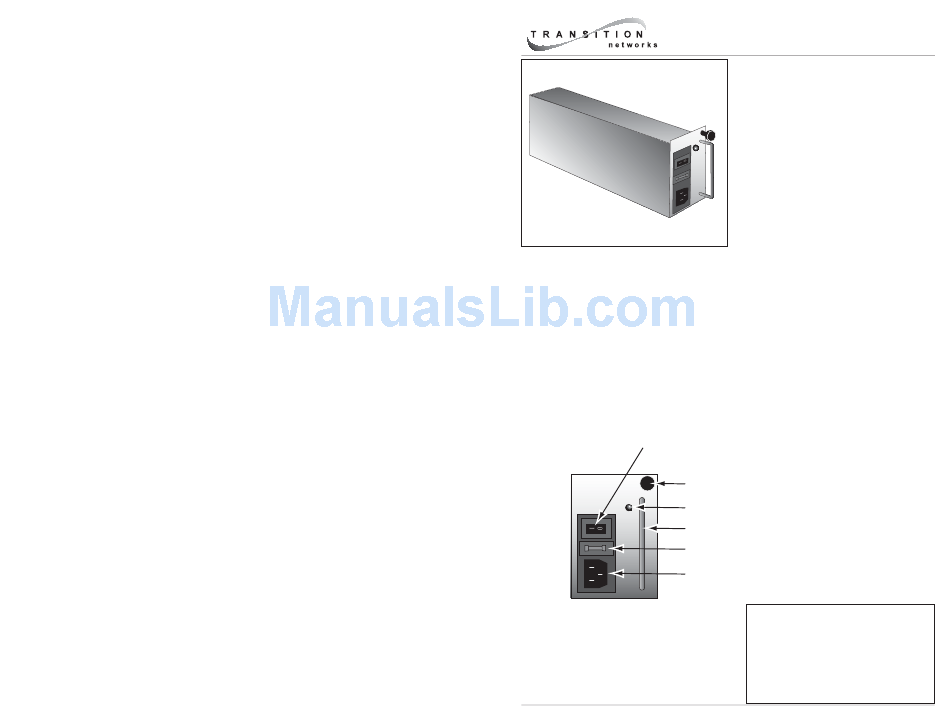

The figure below illustrates the components of the CPSMP-120 power supply:
•
An On/Off switch that, when set to "I", allows the power supply module
to supply power to the chassis, and any installed modules.
•
A panel fastener screw that secures the power supply module to the
chassis.
•
A power LED indicator.
•
A handle for installing and removing the power supply module to/from
the chassis.
•
A fuse installed in a fuse holder.
•
An external power connector that supplies power from a standard AC
wall outlet.
On/Off Switch
Panel Fastener Screw
Power LED
Handle
Fuse Holder
External Power Connector
User's Guide
CPSMP-120
AC Power Supply Module
• PointSystem™
• CPSMC13xx-100 Accessory
The Transition Networks CPSMP-120
power supply is an AC slide-in-module
that provides optional, redundant
power
to
the
CPSMC13xx-100
PointSystem™ 13-slot chassis and any
installed media converter slide-in-
modules and management modules.
Install the CPSMP-120 . . . . . . . . .3
Connect to External Power . . . . . .4
Replace the CPSMP-120 . . . . . . . .5
Replace the Fuse . . . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPSMP-120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CPSMP-120

Summary of Contents for Transition Networks CPSMP-120

  • Page 1 Handle Fuse Holder External Power Connector Install the CPSMP-120 ..3 Connect to External Power ..4 Replace the CPSMP-120 ..5 Replace the Fuse ... . .7 Technical Specifications .
  • Page 2 CPSMC1300-100 13-slot chassis to become the optional, redundant power supply. AC Power Second Supply Installation Slot NOTE: The CPSMP-120 power supply module may also be installed as the redundant power supply in either DC-powered 13-slot chassis: • CPSMC1310-100 (48-VDC chassis) • CPSMC1320-100 (24-VDC chassis) For more information, see the user’s guide for the CPSMC13xx-100 13-slot...

  • Page 3: Connect To External Power

    “0”. Failure to observe this caution could result in damage to, and subsequent failure of, the power supply module. NOTE: The CPSMP-120 power supply module may be “hot swapped” (i.e., replaced while the chassis is in operation) provided the module to be replaced has been disconnected from its external power source and the module’s On/Off switch has been set to “0”.

  • Page 4: Replace The Fuse

    “0”. Failure to observe this caution could result in damage to, and subsequent failure of, the power supply module. NOTE: The CPSMP-120 power supply module may be “hot swapped” (i.e., Panel serviced while the chassis is in operation) provided the module to be serviced Fastener has been disconnected from its external power supply and the module’s...

  • Page 5: Technical Specification

    *Manufacturer’s rated ambient temperature: Tmra range for this power supply module depends on the physical characteristics and the installation configuration of the Transition Networks PointSystem™ chassis in which this power supply will be installed. For the most up-to-date information on the CPSMP-120 power supply module, view the user’s guide on-line at: www.transition.com.

  • Page 6: Compliance Information

    CPSMP-120 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CPSMP-120 to which this declaration refers is in conformity with the following standards. EN 55022:1998+A1:2000 Class A; EN 55024:1998; FCC Part 15 Subpart B; UL 1950; EN 61000-3-2:2000; EN 61000-3-3:1995+A1:2001; 21CFR Subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
  • Page 7 All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2001, 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
