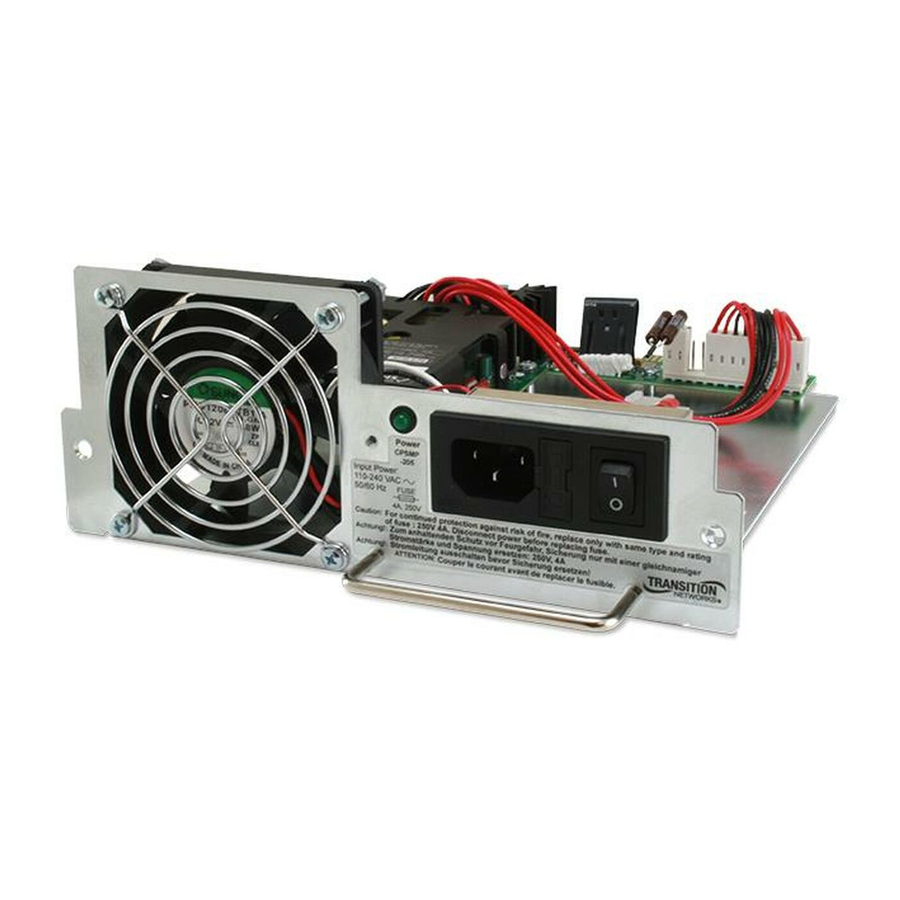

The Transition Networks CPSMP-200 power supply is a slide-in-module that
provides optional, redundant AC power to the CPSMC18xx-xxx and the
CPSMC19xx-100 PointSystem™ chassis.

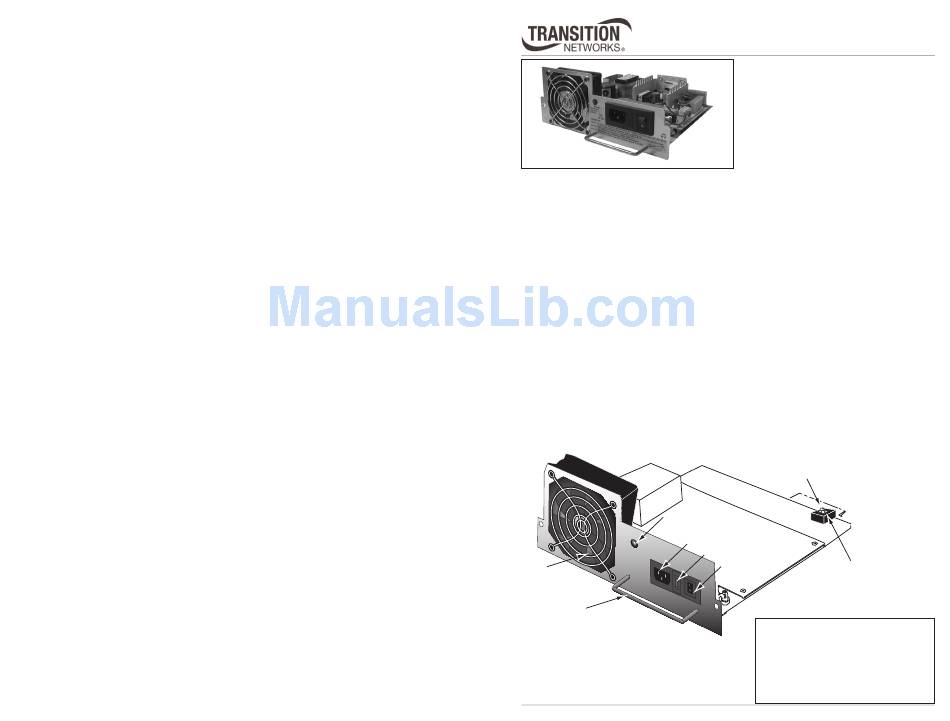

The figure below illustrates the components of the CPSMP-200 power supply:
•
A power LED indicator.
•
An AC power connector that supplies power from an AC wall outlet.
•
A fuse installed in a fuse holder.
•
An On/Off switch that, when set to "I", allows the module to supply
power to the PointSystem™ chassis.
•
A Primary/Secondary switch that allows the module to be configured as
the "primary" or as the "secondary" power supply.
•
A Management/Manual switch that allows the PointSystem™ software to
control and override the physical setting of the Primary/Secondary switch.
•
A fan to cool the interior of the PointSystem™ chassis.
•
A handle for installing and removing the power supply module.
Power LED
AC Power Connector
Fan
Handle
User's Guide
CPSMP-200
AC Power Supply Module
• PointSystem™
• CPSMC18xx-xxx Accessory
• CPSMC19xx-100 Accessory
Primary/Secondary
Switch
Fuse Holder
On/Off Switch
Management/Manual
Switch
Installation . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . .11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPSMP-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CPSMP-200

Summary of Contents for Transition Networks CPSMP-200

  • Page 1: Table Of Contents

    The Transition Networks CPSMP-200 power supply is a slide-in-module that provides optional, redundant AC power to the CPSMC18xx-xxx and the CPSMC19xx-100 PointSystem™ chassis. The figure below illustrates the components of the CPSMP-200 power supply: • A power LED indicator. •...

  • Page 2: Installation

    Installation The CPSMP-200 AC power supply module may replace an existing AC module, or it may be installed as the redundant power supply module in either an AC-powered or a DC-powered PointSystem™ chassis.

  • Page 3: Connect To External Power

    On/Off switch has been set to “0”. To install the CPSMP-200 as the redundant power supply module into either the CPSMC18xx-xxx or the CPSMC19xx-100 PointSystem™ chassis: Remove and retain the two (2) screws that secure the protective plate to the rear of the chassis and pull the plate away from the chassis.

  • Page 4: Maintenance

    Maintenance Replace the CPSMP-200 NOTE: The CPSMP-200 power supply module may be “hot swapped” (i.e., replaced while the chassis is in operation) provided the module to be replaced has been disconnected from its external power source and the module’s On/Off switch has been set to “0”.

  • Page 5: Replace The Fuse

    “0”. Failure to observe this caution could result in damage to, and subsequent failure of, the power supply module. NOTE: The CPSMP-200 power supply module may be “hot swapped” (i.e., serviced while the chassis is in operation) provided the module to be serviced has been disconnected from its external power supply and the module’s...

  • Page 6: Troubleshooting

    CPSMP-200 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CPSMP-200 to which this declaration refers is in conformity with the following standards. CISPR 22:1997+A1:2000; EN 55022:1998 + A1:2000 Class A&B; EN 55024:1998; FCC Part 15 Subpart B; EN61000-3-2:1995+A14:2000; EN61000-3-3:1995 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 7: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2000, 2004-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
