User Guide
SPS-2460-xx
External Power Supply (24-60 VDC and 24-42 VAC
RMS) for:
• SPS-2460-PS Piggy-back for use with stand-alone media converters 3.25" wide

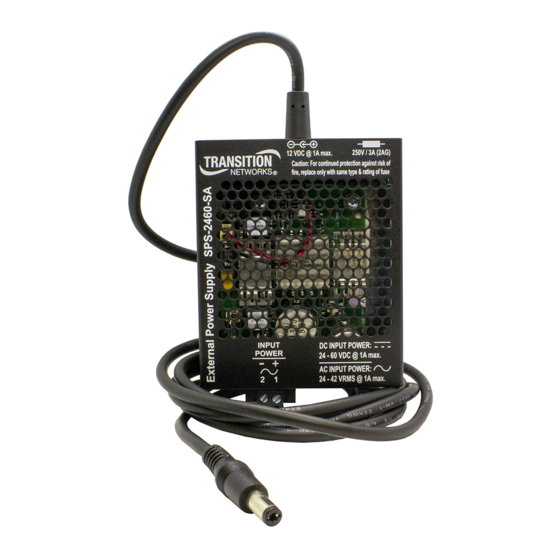

• SPS-2460-SA Stand-alone for use with all stand-alone media converters
Contents
Introduction ................................................................................................................................................................1
Ordering Information .................................................................................................................................................2
Installation ..................................................................................................................................................................2
Power Source Circuit Requirements ......................................................................................................................2
Grounding ..............................................................................................................................................................2
Required Disconnect ..............................................................................................................................................3
SPS-2460-SA and SPS-2460-PS Differences ............................................................................................................3
SPS-2460-SA (Stand Alone) Installation .................................................................................................................4
SPS-2460-PS (Piggy-Back) Installation ....................................................................................................................4
Supplying Power to the SPS-2460-xx .....................................................................................................................5
Maintenance ...............................................................................................................................................................6
Replacing the Fuse .................................................................................................................................................6
Specifications ..............................................................................................................................................................7
For More Information .................................................................................................................................................7
Compliance Information .............................................................................................................................................8
Declaration of Conformity......................................................................................................................................8
CE Mark ..................................................................................................................................................................8
Contact Us ..................................................................................................................................................................9
Record of Revisions ....................................................................................................................................................9
Introduction
Transition Networks' wide input external power supplies allow you to provide a wide range of input voltages to
power your stand-alone converters and chassis. Input voltages of 24-60 VDC and 24-42VRMS allow for
installation of any of Transition Networks' standalone media converters in most industrial, telecom and
commercial applications, as well as HVAC and building controlled environments.
Multiple form factors allow flexibility to meet your application. The stand-alone (-SA model) can be used with all
Transition Networks' stand-alone media converters. The -PS model allows the power supply to attach directly to
the converter and eliminate the power cable commonly found between the power supply and the converter.
Once the piggy back supply is attached to the converter, the combined assembly is much easier to wall mount or
attach to DIN Rail environments than using a separate supply.
33455 Rev. B
www.transition.com/
