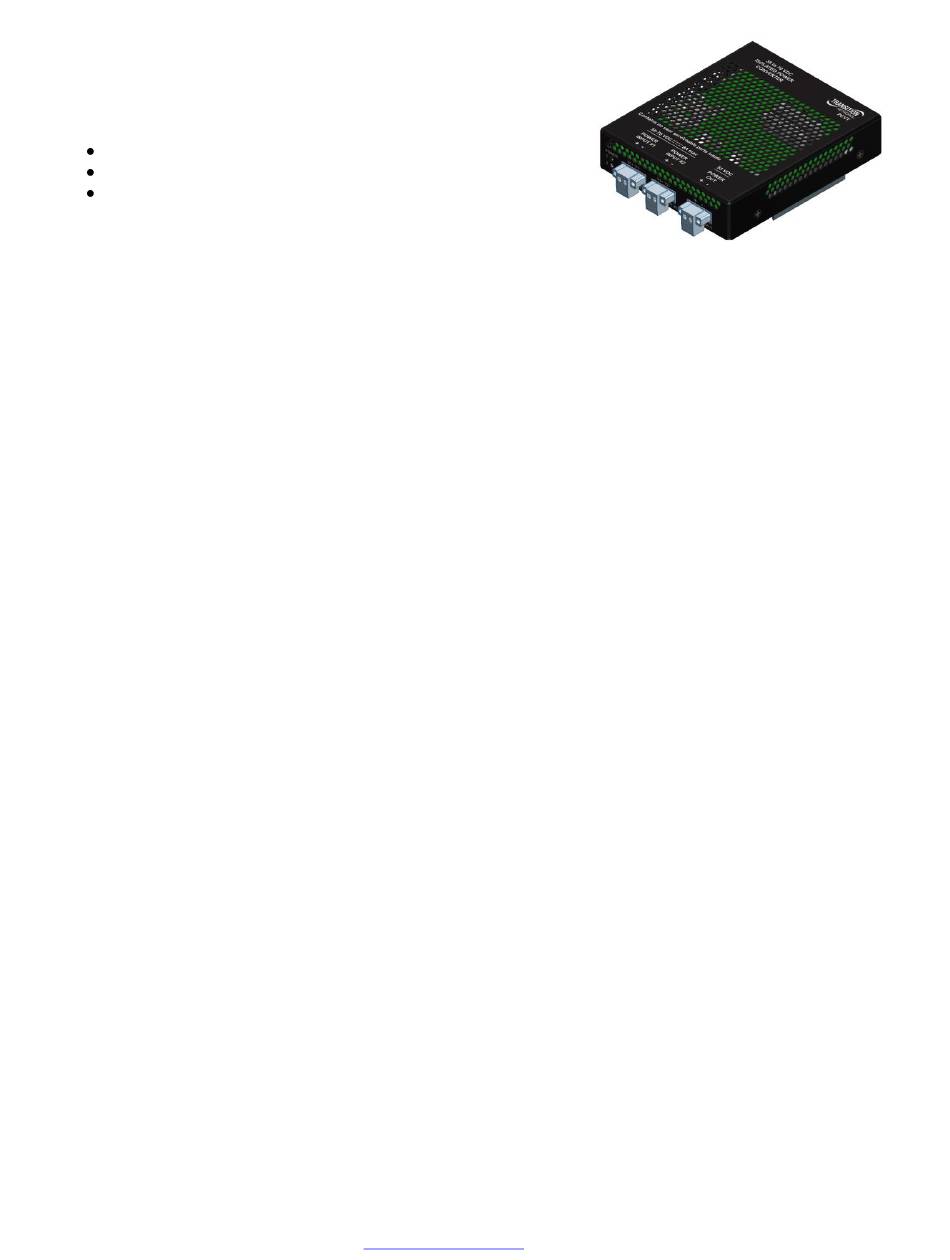

PCVT-48VDC-53VDC Power Converter
Install Guide
Provides VDC power conditioning and isolation.
Accepts 38-70 VDC Inputs.
Provides 53 VDC output.
Contents
Introduction and Description ......................................................................................................................... 2
Model Numbers ............................................................................................................................................. 2
Safety ............................................................................................................................................................ 3
Cautions and Warnings ............................................................................................................................ 3
Restricted Access Note ............................................................................................................................ 4
Compliance Information ................................................................................................................................ 5
Declaration of Conformity ......................................................................................................................... 5
UL Component Recognition ...................................................................................................................... 5
CE Mark .................................................................................................................................................... 5
FCC Regulations ...................................................................................................................................... 5
Canadian Regulations .............................................................................................................................. 5
European Regulations .............................................................................................................................. 5
Electrical Safety Warnings ........................................................................................................................ 7
Unpacking ..................................................................................................................................................... 8
Ship Kit Contents ...................................................................................................................................... 8
Mounting........................................................................................................................................................ 9
Installation ................................................................................................................................................... 10
Front Panel ............................................................................................................................................. 10
Connect POWER INPUT #1 ................................................................................................................... 10
Connect POWER INPUT #2 ................................................................................................................... 10
Connect the POWER OUTPUT .............................................................................................................. 10
Optional Terminal Block (Euro Block) Connection ................................................................................. 11
Terminal Block Power Source ............................................................................................................ 11
Grounding the PCVT-48VDC-53VDC ..................................................................................................... 12
Grounding Procedure ......................................................................................................................... 13
Operation..................................................................................................................................................... 14
Power In Status LEDs ............................................................................................................................. 14
Technical Specifications and Standards ..................................................................................................... 15
Dimensions ............................................................................................................................................. 16
Troubleshooting .......................................................................................................................................... 17
Maintainance ............................................................................................................................................... 18
Observe ESD Precautions ...................................................................................................................... 18
Contact Us................................................................................................................................................... 18
Record of Revisions .................................................................................................................................... 18
33568 Rev. A
www.transition.com/
Page 1 of 18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks PCVT-48VDC-53VDC
Summary of Contents for Transition Networks PCVT-48VDC-53VDC
-
Page 1: Table Of Contents
Connect POWER INPUT #2 ........................10 Connect the POWER OUTPUT ......................10 Optional Terminal Block (Euro Block) Connection ................. 11 Terminal Block Power Source ......................11 Grounding the PCVT-48VDC-53VDC ..................... 12 Grounding Procedure ......................... 13 Operation..............................14 Power In Status LEDs ..........................14 Technical Specifications and Standards ..................... -
Page 2: Introduction And Description
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Introduction and Description Transition Networks’ PCVT-48VDC-53VDC is a 53 VDC Out Isolated Power Converter that provides: Isolation for the connected device from the power source. Redundant power inputs. Single power output. Single mounting option: enclosed in a DIN Rail mountable enclosure. -
Page 3: Safety
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Safety Before installing the PCVT, read this section and ensure that the requirements noted are met. Cautions and Warnings Definitions Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. -
Page 4: Restricted Access Note
Rail. Failure to observe this warning could result in an electrical shock or death. Warning: Do not work on the PCVT-48VDC-53VDC, connect, or disconnect cables during a storm with lightning. Failure to observe this warning could result in an electrical shock or death. -
Page 5: Compliance Information
à l’utilsateur de prende les measures spécifiques appropriées. In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this 33568 Rev. A www.transition.com/... - Page 6 Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’ portion of this document. CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network.
-
Page 7: Electrical Safety Warnings
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal nstallers I overensstemmelse med sikkerhedsadvarslerne. -
Page 8: Unpacking
Place the PCVT and related materials in the desired install location. Figure 2: PCVT-48VDC-53VDC Unpacking Save the PCVT 10x9x4 Box and Insert for future use. Ship Kit Contents The PCVT-48VDC-53VDC is shipped with several standard items. Make sure you have received the following: One PCVT-48VDC-53VDC Power Converter ... -
Page 9: Mounting
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Mounting The PCVT must be mounted vertically using a DIN Rail mounting bracket. Typically the Terminal Blocks will be facing upward, as shown in the views below. Figure 3: DIN Rail Mounting 33568 Rev. A www.transition.com/... -
Page 10: Installation
PCVT-48VDC-53VDC Install Guide Installation Front Panel The figure below shows the front panel of the PCVT-48VDC-53VDC power converter. Figure 4: Front Panel The PCVT front panel provides two power input connectors and one power output connector. Make the power connections as described below. -
Page 11: Optional Terminal Block (Euro Block) Connection
1. Reinstall the terminal block into the primary location on the chassis. 2. Tighten the two screws to secure the terminal block to the chassis. 3. Verify that the wiring to the ‘primary’ ( ) of the PCVT-48VDC-53VDC is connected correctly, as shown in Figure 5 below. 33568 Rev. A www.transition.com/... -
Page 12: Grounding The Pcvt-48Vdc-53Vdc
The PCVT-48VDC-53VDC comes equipped with grounding lugs located on the back panel. They require a grounding conductor wire terminated with a two-hole, compression-type, grounding connector. The grounding wire -- which must be a copper conductor -- is not included with the PCVT-48VDC-53VDC and must be provided by the customer/installer. -
Page 13: Grounding Procedure
1. Obtain one (1) grounding conductor (12 AWG copper wire gauge or larger) with a two-hole, compression-type, grounding connector. 2. Attach the grounding conductor to the PCVT-48VDC-53VDC by placing the two-hole connector onto the grounding lugs and fasten with the enclosed lock-washers / lug-nuts at the proper torque (per the manufacturer’s specification at the... -
Page 14: Operation
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Operation Power In Status LEDs Use the LEDs to monitor PCVT Power Input status. POWER 1 LED Lit = Connected to POWER INPUT # 1 POWER 2 LED Lit = Connected to POWER INPUT # 2 Figure 8: Front Panel 33568 Rev. -
Page 15: Technical Specifications And Standards
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Technical Specifications and Standards The Transition Networks PCVT48-53VDC is designed to these specifications and standards. EMC Emission FCC Class A; EN55022 EMC Immunity EN55024 Safety CE Mark, UL 60950, TUV EN60950-1 Vibration: IEC60068-2-6 Free Fall:... -
Page 16: Dimensions
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Dimensions Figure 9: Dimensions 33568 Rev. A www.transition.com/ Page 16 of 18... -
Page 17: Troubleshooting
Transition Networks, Inc. PCVT-48VDC-53VDC Install Guide Troubleshooting If the PCVT fails, isolate and correct the failure by determining the answers to the following questions, and then taking the indicated action: Is the PCVT POWER 1 LED lit? Is there a power connector plugged into the POWER 1 terminal block? -
Page 18: Maintainance
All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks. Note that this manual contains links to third party web sites for which Transition Networks is not responsible. 33568 Rev. A www.transition.com/...
