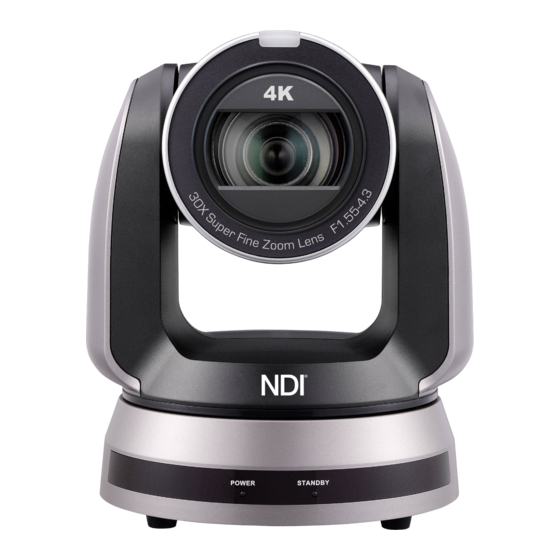

Lumens VC-A71P-HN Quick Installation Manual

VC-A71P-HN Quick Installation Guide

1. Connecting the Product

Router/ Switch
Kensington
Lock Port
LAN Port
IR
Select
DC Input
RS-232 Output
Camera (Serial
connection)

2. Instruction on SWITCH setting

2.1 OUTPUT SWITCH

*
The factory setting for the resolution
is 2160p/59.94
* When setting 2160p, 3G-SDI will
adjust to 1080P output based on the
ratio.

2.2 IR SELECT

When Camera IR SELECT setting is done,
the camera can be switched in turn and
controlled by Camera Select on remote
control.
ID
1 2 3
1
2
3
5100469-50 SEP. 2022
Computer Monitor
USB 3.0
HDMI/ SDI Output
RS-232 Input Audio Input Synchronizing Signal
Microphone
Synchronizing Signal
Controller
Setting Output Mode
0 2160p/59.94
1 2160p/50
2 2160p/29.97
3 2160p/25
4 1080p/59.94
5 1080p/50
6 1080p/29.97
7 1080p/25
8 720p/59.94
Setting
9 720p/50
A 720p/29.97
B 720p/25
C 1080i/59.94
D 1080i/50
E Reserved
F Reserved

3. Installation Step

3.1 Please adjust the resolution on DIP SWITCH prior to installation.

(Please refer to
3.2 Remove 4 pieces of foot pads on the bottom of the camera by
Controller
rotating the foot pads counterclockwise.
RS-422 Input
*Please keep the foot pads properly after removal and store them for future use.

3.3 Fix the metal plate A on the machine base with 4 M3 silver screws.

Output
Switch
Converter

3.4 Lock the metal plate B on ceiling mounted hanger

*Caution:
(1) Please use the hanger that has obtained UL security approval.
(2) Please reserve the hole for the connecting wires of the camera.

3.5 Combine the metal plate A and the metal plate B

▼Push the metal plate A up to the ceiling and then to the right to latch
the metal plate B.
▼And then secure with 2 M3 silver screws and 1 M3 black screw.
www.MyLumens.com
2. Instruction on SWITCH setting
metal plate A
black
screw
)
