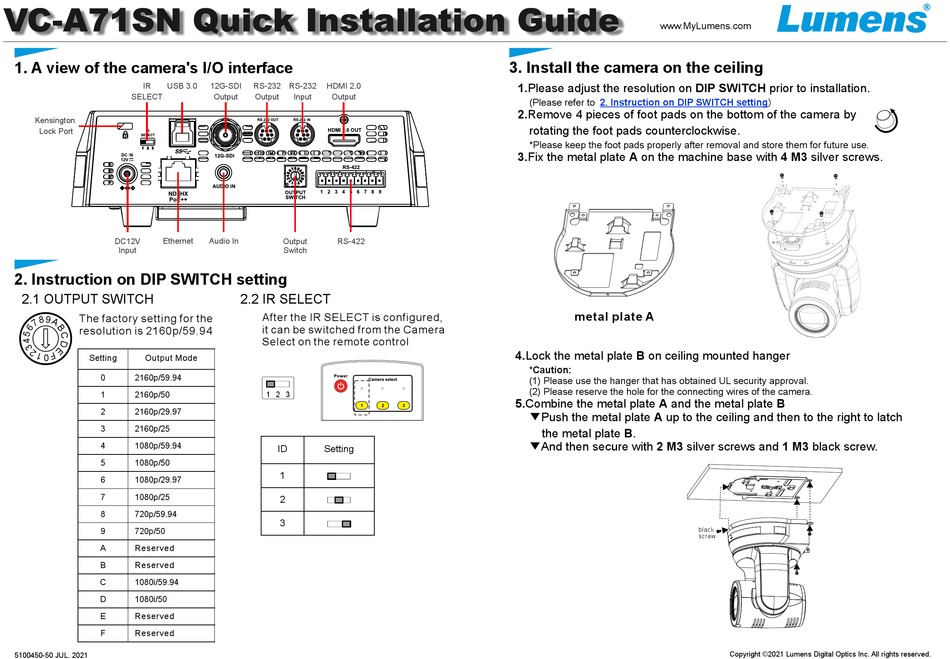

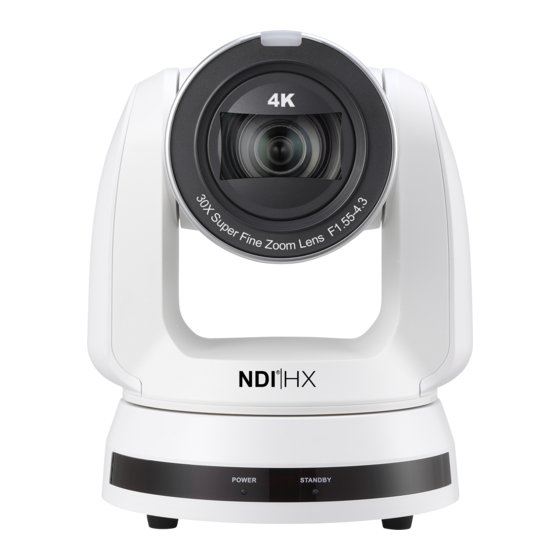

VC-A71SN Quick Installation Guide
1. A view of the camera's I/O interface
IR USB 3.0
SELECT
Kensington
Lock Port
DC12V Ethernet
Input
2. Instruction on DIP SWITCH setting
2.1 OUTPUT SWITCH
The factory setting for the
resolution is 2160p/59.94
Setting Output Mode
0 2160p/59.94
1 2160p/50
2 2160p/29.97
3 2160p/25
4 1080p/59.94
5 1080p/50
6 1080p/29.97
7 1080p/25
8 720p/59.94
9 720p/50
A Reserved
B Reserved
C 1080i/59.94
D 1080i/50
E Reserved
F Reserved
5100450-50 JUL. 2021
12G-SDI RS-232 RS-232 HDMI 2.0
Output Output Input Output
Audio In Output RS-422
Switch
2.2 IR SELECT
After the IR SELECT is configured,
it can be switched from the Camera
Select on the remote control
1 2 3
ID Setting
1
2
3
www.MyLumens.com
3. Install the camera on the ceiling
1.Please adjust the resolution on DIP SWITCH prior to installation.
(Please refer to 2. Instruction on DIP SWITCH setting
2.Remove 4 pieces of foot pads on the bottom of the camera by
rotating the foot pads counterclockwise.
*Please keep the foot pads properly after removal and store them for future use.
3.Fix the metal plate A on the machine base with 4 M3 silver screws.
metal plate A
4.Lock the metal plate B on ceiling mounted hanger
*Caution:
(1) Please use the hanger that has obtained UL security approval.
(2) Please reserve the hole for the connecting wires of the camera.
5.Combine the metal plate A and the metal plate B
▼Push the metal plate A up to the ceiling and then to the right to latch
the metal plate B.
▼And then secure with 2 M3 silver screws and 1 M3 black screw.
)
black
screw
