Summary of Contents for Transition Networks E-TBT-HB-0403

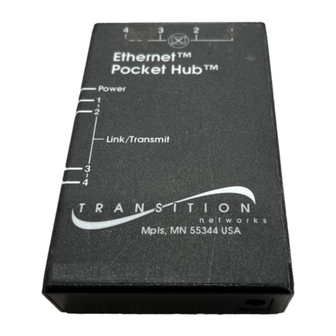

- Page 1 ™ ™ Ethernet Pocket Hub Model 0403 (E-TBT-HB-0403) 7356.C For assistance in installing, using, or maintaining the TRANSITION Networks Model 0403 Ethernet Pocket Hub, contact TRANSITION Networks Technical Support (800) 260-1312 or contact your local distributor.
- Page 2 Compliance Information UL Listed FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Warranty Statement A. Five Year Warranty Transition Networks, Inc. (TN) warrants, for a period of five years, that TN products (with the exception of power supplies and fans that TN warrants for two years) will be free from defects in materials and workmanship, and will be in conformity with TN’s specifications. TN’s warranty on products manufactured by or assembled for TN in accordance with a customer’s specifications, is a five-year warranty that the goods conform to such specifications. -
Page 4: Introduction
LANs, is assumed. The 0403 Ethernet Pocket Hub The Model 0403 10BaseT 4-Port Ethernet Hub (E-TBT-HB-0403), is a low cost Ethernet repeater. Designed to meet IEEE 802.3 10BaseT standards, the 0403 Pocket Hub is a fully functional repeater in a compact (4.80"... -
Page 5: Networking The 0403 Pocket Hub
Model 0403 Ethernet Pocket Hub Specifications Dimensions 4.80" X 2.77" X 0.95" (122mm x 70mm x 24mm) Environment Temperature: 0-50°C, Humidity 10-90%, non condensing, Altitude 0-10,000 feet. Power Supply Adapter AC Input: Requirement Location 3518 120 volts, 60 hertz, 28 watts USA/Canada/Mexico 3516 230 volts, 50 hertz, 28 watts... -
Page 6: 0403 Ethernet Pocket Hub Connectors
0403 Ethernet Pocket Hub Connectors and Status LEDs RJ-45 Connectors Four (4) 10BaseT RJ-45 jack connectors are located at one end of the 0403 Pocket Hub. The RJ-45 jacks support connection to shielded or unshielded 100 ohm twisted pair 10BaseT cable. RJ-45 Connectors BNC and Power Supply Adapter Connectors An external power supply... -
Page 7: Operation
4. OPERATION The 0403 Pocket Hub normally requires no intervention beyond occasionally monitoring the Power and Link/Transmit LEDs. Power LED Link/Transmit LEDs Monitoring Power LED The green Power LED is illuminated when the Pocket Hub is connected to power. Monitoring Link/Transmit LEDs Each of the green Link/Transmit LEDs , associated with one of the eight RJ-45 ports: •... -
Page 8: Ensuring Compliance With Ethernet 802.3
Ensuring Compliance with Ethernet 802.3 Ethernet 802.3 specifications define segment number, as well as cable characteristics. (A segment is the cable connection between cable interfaces in an Ethernet LAN. Up to thirty 10Base2 connections can be made in one segment.) When connecting Pocket Hubs, the transmission path between any two Data Terminating Equipment (DTE) terminals can consist of no more than five segments. -
Page 9: Ensuring Correct 10Baset Configuration
Connecting 10BaseT Cable (continued) Connecting to External Hub through Wall Outlet Use a crossover cable to connect Pocket Hub to the wall plate. Use a straight through cable to connect Pocket Hub to terminal devices. Straight-through 10BaseT Crossover 10BaseT Connecting two Pocket Hubs Use a crossover cable to connect Pocket Hubs. -
Page 10: Connecting 10Baset Cable
Unpacking the 0403 Pocket Hub The 0403 Ethernet Pocket Hub packing contents should include the following: Item Part Number 0403 Pocket Hub E-TBT-HB-0403 Power Supply Adapter 3518, 3517, 3516, 3515, or 3514, (depending upon power configuration in country where installed) User’s Guide...
