Transition Networks HSTR-CF-01(SC) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
IEEE 802.5, 802.5t
Delay
400ns round trip
Case dimensions
4.7" x 3.0" x 1.0"
Shipping Weight
3 lbs
Environment
Temperature:
Humidity
Altitude
Maximum number
media converters in series: 2
Warranty
Five years
Power Supply Requirements
Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kg)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33105.A
High-Speed Token Ring Copper/Fiber

Media Converter

HSTR-CF-01(SC), HSTR-CF-01(SM)
USER'S GUIDE

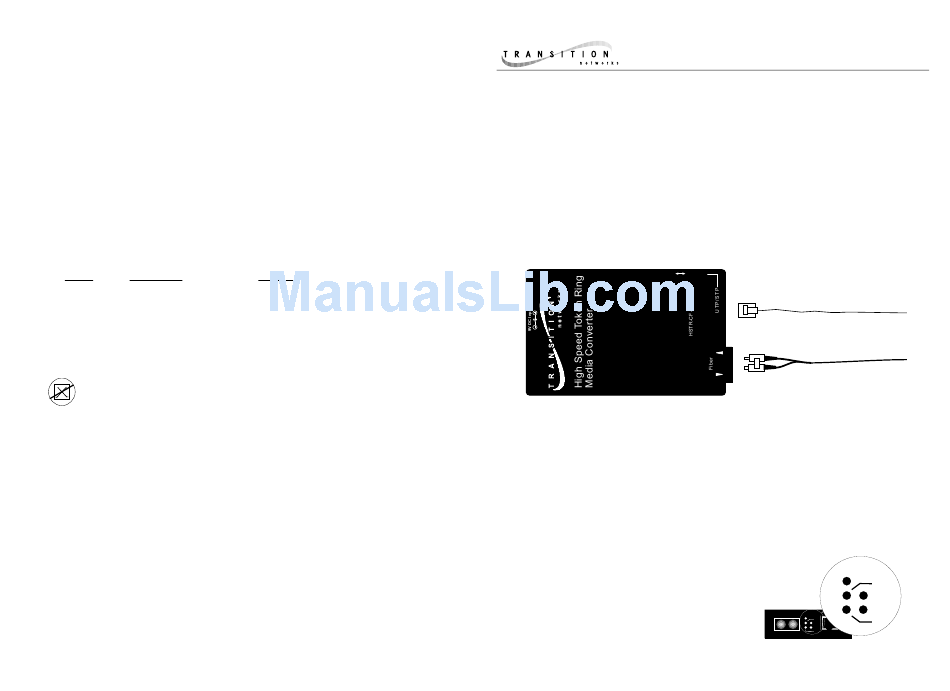

The TRANSITION Networks High-Speed Token Ring copper-to-fiber media
converters connect either unshielded or shielded High-Speed Token Ring
twisted-pair copper cable to High-Speed Token Ring multimode fiber-optic
cable (HSTR-CF-01(SC)) OR to High-Speed Token Ring singlemode fiber-
optic cable (HSTR-CF-01(SM)).
Lobe Station
HSTR-CF-01(SC)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
multimode fiber-optic cable.
Status LEDs:
Power Illuminated green LED indicates connection to external AC power.
SDF Signal Detect/Fiber: Steady green LED indicates fiber port is
connected to device.
SDC Signal Detect/Copper: Steady green LED indicates
RJ-45 port is connected to device.
RXC Receive/Copper: Flashing green LED
indicates packets are seen on RJ-45
port.
RXF Receive/Fiber: Flashing green LED
indicates packets are seen on fiber port.
Minneapolis, MN 55344 USA
UTP/STP Copper
1300 nm Fiber
HSTR-CF-01(SM)
Provides an RJ-45 twisted pair
100BASE-TX connector and an RX
(receive) and TX (transmit) SC
100BASE-FX connector to 1300 nm
singlemode fiber-optic cable.
Power
SDF
SDC
RXC
TX RX Power
SDF RXF
SDC
RXC
RXF
Fiber UTP/STP
