Amano Pioneer Eclipse PE350BU Operator's Manual

Uhs battery burnisher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UHS Battery Burnisher
PE350BU
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer Eclipse PE350BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano Pioneer Eclipse PE350BU

Summary of Contents for Amano Pioneer Eclipse PE350BU

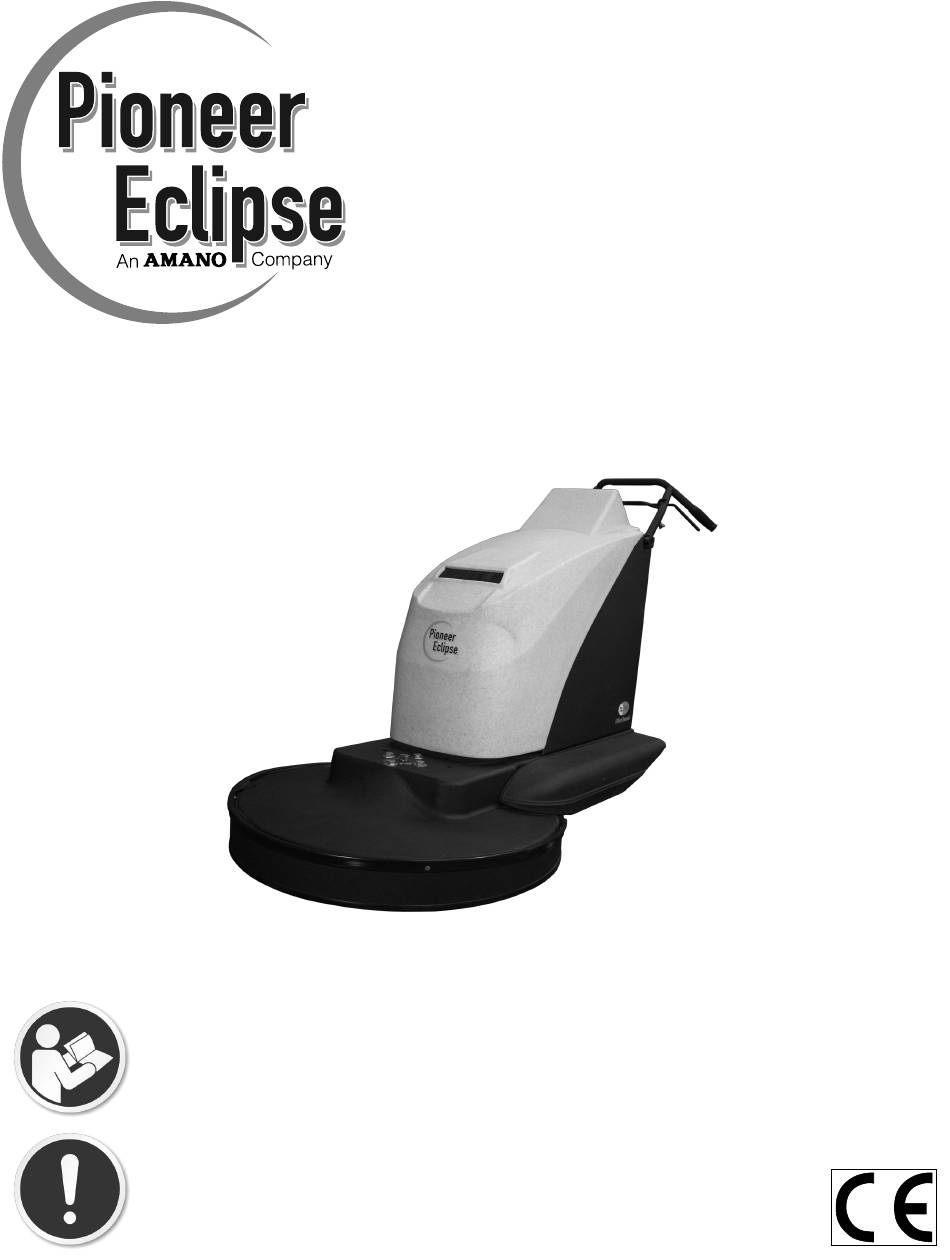

  • Page 1 UHS Battery Burnisher PE350BU Operator’s Manual...
  • Page 2 Each operator must be trained in the operation of this machine before being allowed to use it. Contact Amano Pioneer Eclipse Customer Service at 1-800-367-3550 or +1-336-372-8080 or an authorized Amano Pioneer Eclipse Distributor to inquire about training or to request a replacement manual.
  • Page 3 ! FOR YOUR SAFETY ! DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any or other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number...

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions ............6 Machine Preparation ............8 Machine Components ............. 10 Battery Charger Fault Codes .......... 13 Operating the Machine ............ 14 Maintenance ..............16 Controller Errors .............. 17 Troubleshooting ............... 18 Machine Specifications ............ 19 Parts Manual ..............
  • Page 5 Motor Brush Kit: MP433200 Your Authorized Amano Pioneer Eclipse Distributor: _____________________________________ Authorized Amano Pioneer Eclipse Distributor Phone Number: _____________________________ Amano Pioneer Eclipse Phone Number: +1-336-372-8080 WARNING! The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of California, as identified in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm.

  • Page 6: Safety Precautions

    DO NOT make unauthorized modifications or alterations replacement parts supplied by Amano Pioneer Eclipse to this machine. Amano Pioneer Eclipse assumes or a Amano Pioneer Eclipse Authorized Distributor or no liabilities for injury or damage resulting from an Service Center.
  • Page 7 Keep your machine regularly maintained by following the maintenance information in this manual. Order parts Test for Hand-Arm Vibration at the Grip and supplies only from an Authorized Amano Pioneer Surface of Hand-Guided Machinery Eclipse Distributor. Use the parts illustration section Amano Pioneer Eclipse measures and rates the of your manual when ordering parts.

  • Page 8: Machine Preparation

    Machine Preparation Unpacking the Machine 4. Make sure burnisher is cleaned properly by wiping machine down with damp cloth before storing. The machine is shipped boxed on a wooden pallet. To unpack machine: CAUTION! NEVER PRESSURE WASH MACHINE! 1. Cut and remove bands holding the box to the pallet. 5.
  • Page 9 Connecting the Battery 1. Remove the two screws that secure the battery cover. Raise the cover. 2. Connect the battery with the black cable connected to the black terminal and the red cable connected to the red terminal. 3. To disconnect the battery, depress button on side of black connector and remove from battery terminal.

  • Page 10: Machine Components

    Machine Components Controls and Instruments Traction 350BU 6. Hour Meter: The hour meter record the number of hours the 1. Key Switch - Turns the machine on/off. machine has been powered ON. The hour meter 2. Handle Bail - When the handle bail is engaged the reading is used to mark recommended maintenance pad will start turning.
  • Page 11 Over Current Protection Pressing the arrow button will take you to the Preferred Language page. You may select English, The burnish motor controller automatically reduces the Spanish, or French. Select the preferred language. motor speed if the motor current is above a preset limit. If the controller is unable to keep the motor current in a working range, or if there is an electrical short, a 100 amp circuit breaker will trip.
  • Page 12 Onboard Battery Charger Stage 2: Constant Current Charge (Bulk) To charge the batteries, push the machine to a flat, dry, 1. If the Pre-Test is successful, the charger enters the well-ventilated area. Turn off the machine. Bulk Stage. The charger is now operating at full Unwrap the charging cord and plug into a wall socket.

  • Page 13: Battery Charger Fault Codes

    Batter Charger Fault Codes Code Description Battery current is over setpoint (10% over target after limiting) Under minimum current during LC Bulk stage Under minimum current during Bulk stage Under minimum current during Absorption stage Under minimum current during Finish stage Output current limited because hardware limitations Battery voltage over maximum limit Battery voltage under minimum limit...

  • Page 14: Operating The Machine

    How the Machine Works Operation on Inclines The Burnish components of the machine are: CAUTION! When the machine is traversing on an incline, up or down, move slowly. l Burnish pad holder CAUTION! Do not run burnish pad on an incline. The l Burnish pad maximum rated climb and descent incline is 6°.
  • Page 15 Empty & Replace Dust Bag 8. Remove the center device by turning counter- clockwise and carefully remove the old pad from the 1. Remove the dust bag cover by lifting upward on the Velcro material. back of the cover. 2. Remove the dust bag by working the elastic over the lip of the rubber grommet and pulling toward the rear of the machine.

  • Page 16: Maintenance

    Inspect drive belt Check / Replace dust skirt edging Replace drive belt As Required These items must be performed with the proper tools and training. Contact a Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency.

  • Page 17: Controller Errors

    Body & Battery Cover CAUTION!: Do not use solvents or degreasers to clean the machine. The body may be cleaned with a damp cloth to remove dust and scuff marks. More stubborn scuff marks on the tank exterior can be removed with a vinyl cleaner. Controller Errors Error Code Cause...

  • Page 18: Troubleshooting

    Machine Troubleshooting Problem Possible Cause Action Breaker Tripped Reset Breaker Incorrect Battery Connection Check Battery Connection Machine will not turn on On-Board charger plugged in Unplug charging cord Keyswitch Failure Check Key Switch operation and connection Failed Fuse Check fuse, replace if neccesary Pad Change Safety switch Check safety switch and connections Bail Switch...

  • Page 19: Machine Specifications

    Machine Specifications Feature Imperial Metric Burnish Width 28" 71 cm Productivity Rate 36,400 sqft/hr 3382 sqm/hr Voltage Battery Type 1 x 48V 177Ah; 8.5kWh 2 x 48V 177Ah; 8.5kWh Operating Time 2 hrs 2 hrs Onboard Battery Charger Standard Standard Circuit Protection 100 Amp Circuit Breaker 100 Amp Circuit Breaker...

  • Page 20: Parts Manual

    PE350BU Battery Burnisher Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...

  • Page 21: Electrical Schematic

    Electrical Schematic - Pad Assist...
  • Page 22 Electrical Connections 9 (GREEN) 5 (GREEN) 8 (BLUE) 11 (WHITE) 12 (GREEN) 13 (BLACK) 13 (BLACK) 11 (WHITE) 12 (GREEN) 11 (WHITE) 13 (BLACK) 12 (GREEN) Parts List REF. ITEM DESCRIPTION NUMBER MP551200 CABLE, CAN-BUS, 7 PIN MP551700 HARNESS, 350BU, LCD TO CONTROL MP551800 CABLE, 350BU, POWER MP551900...
  • Page 23 Electrical Connections (Continued) MP537100 MOTOR (TOP VIEW) MP543900 BATTERY Parts List PART ITEM DESCRIPTION NUMBER MP549801 CABLE, 2 AWG, 1/4 X 5/16 X 12 MP549802 CABLE, POS. 2 AWG, 1/4 X 5/16 MP549803 CABLE, NEG, 2 AWG, 1/4 X 5/16 MP549804 CABLE, 2 AWG, 1/4X5/16 X 16.8"...
  • Page 24 Electrical Connections (Continued) 8 (BLUE) 9 (GREEN) NOT USED Parts List 5 (GREEN) PART ITEM DESCRIPTION NUMBER MP228800 BREAKER, CIRCUIT, 100A, 48V 37 (BLACK) MP318400 SWITCH, MICRO, 12V, 15A, 1" LEVER MP544000 RELAY 48V, 200A 36 (RED) MP544800 CONTROLLER, 48V, 350A MP544901 CHARGER, 48V LI BATTERY RF090600...
  • Page 25 Deck Assembly RF086200 10/14/22...
  • Page 26 Deck Assembly (Continued) Parts List PART ITEM DESCRIPTION NUMBER 962216 SCREW 3/8-16 X 1 1/4 HEX 962288 BOLT 3/8-16 X 1.00 HEX HD MP7235 SPINDLE, W/ 7.25" PULLEY, ASM. MP067400 COVER, BAG, VACUUM, SPEEDSTAR MP071800 TENSIONER, BELT, W/4" PULLEY MP075200_B 1.1 ft FOAM, SKINNED, 1/2"...
  • Page 27 Cover Assembly Parts List ITEM PART NUMBER DESCRIPTION MP544101 ASSY., DISPLAY, 350BU MP544200 ASSY, KEY SWITCH MP546800 SPACER, 350BU SWITCH MP548900 COVER, 350BU ASSY NB007100 WASHER, FLAT, #6 NB9200 SCREW, MACHINE, ROUND HD, 6-32 X 5/8 NB020800 NUT, LOCK, NYLON, 6-32 RF086100 10/14/22...
  • Page 28 Rear Assembly RF086500 10/14/22...
  • Page 29 Rear Assembly (Continued) Parts List PART ITEM DESCRIPTION NUMBER 81217A NUT, 1/4-20 X .218H, NYLOK 85383A SCREW 10-32 X 3/4 PAN HD 87701A 5/16 - 18 x 5/8, BHCS 962870 SCR 3/8 -16X1 BT ST ALLEN LX2105 CLIP, HITCH PIN, STRAIN RELIEF MP5410XX WLDMT, LI BUFFER HANDLE MP5427XX...
  • Page 30 Pad Holder and Skirt Assembly Parts List PART ITEM DESCRIPTION NUMBER MP032500 PADHOLDER, 28", COMPLETE ASM. MP139400 SKIRT, STEEL, 28", ASM. 97.4 in MP139800 EDGING, WEAR, SKIRT, STEEL MP195300 SPACER, BEARING, RIGHT MX1045 NUT, HEX, 1/4-20 NB3350 WASHER, FLAT, 1/4", CZ NB050600 BOLT, HEX, TAP, 1/4-20 x 2-1/2"...
  • Page 34 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 EC Machinery Directive 2006/42/EC, EC Restriction of Hazardous Substances Directive (2011/65/EU) Harmonized Standards Applied: EN 12100-1, EN12100-2 LT090200 © 2022 Amano Pioneer Eclipse Corporation 350BU_A 101722...
