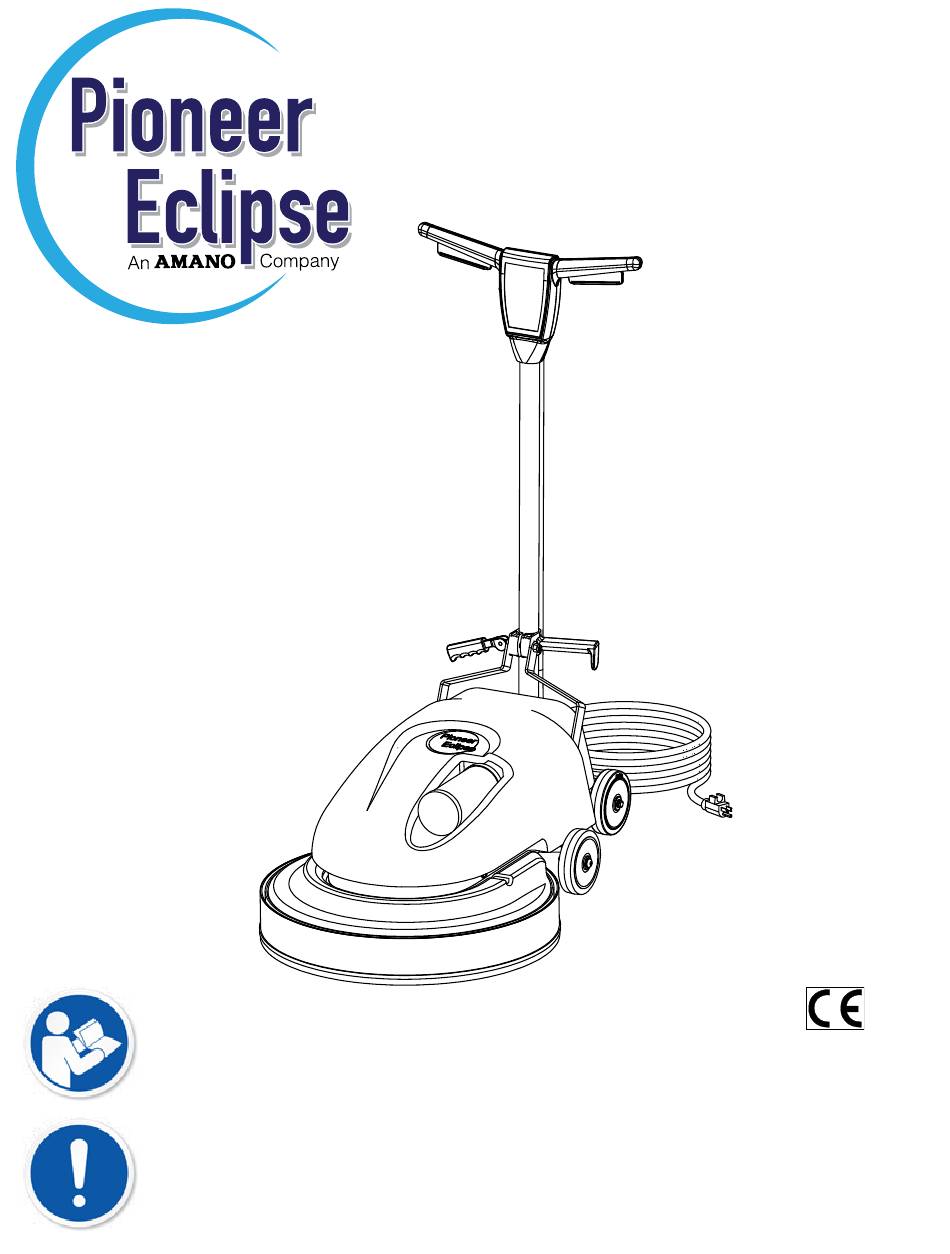

- Page 1 Floor Burnisher MANUAL - FRONT VIEW - DUST CONTROL PE225BU DUST CONTROL Operator’s Manual...
- Page 2 Section - A English - EN FOR YOUR SAFETY DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone...
-
Page 3: Table Of Contents
Modifications and additions to the cleaning machine which affect capacity and safe operation shall not be performed by the customer or user without prior written approval from Amano Pioneer Eclipse. Unapproved modifications will void the machine warranty and make the customer liable for any resulting accidents. -
Page 4: Operator Safety Instructions
Section - A English - EN Operator Safety Instructions In this Operation Manual you will find three statements that you must read and observe to ensure safe operation of this machine. DANGER means: Severe bodily injury or death can occur to you or other personnel if the DANGER state- ments found on this machine or in this Operation Manual are ignored or are not adhered to. - Page 5 Section - A English - EN Operator Safety Instructions (continued) WARNING: Electrical components of this machine can “short-out” if exposed to water or moisture. Keep the electrical components of the machine dry. Wipe the machine down after each use. For storage, keep the machine in a dry building.
-
Page 6: How To Prepare The Machine For Operation
Commercial use only. Figure 1 This machine is designed and manufactured for indoor use on hard floor surfaces. Amano Pioneer Eclipse Corporation (APEC) does not recommend use of this machine in any environment other than an indoor environment. This floor machine is designed and manufactured for commercial floor use only. - Page 7 Section - A English - EN Machine Components Operator Handle Grips Switch Lever Switch Levers Safety Lock Cord Hook Handle Release Lever MANUAL - FRONT VIEW - DUST CONTROL Power Cord...
-
Page 8: Instructions For Connection To Power Supply
Section - A English - EN Instructions for Connection to the Power Supply (120V) This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electrical shock. This product is equipped with a cord having an equip- ment-grounding conductor and grounding plug. - Page 9 Section - A English - EN Instructions for Connection to the Power Supply (230V) CAUTION: This machine will operate only on the AC frequency and electrical voltage shown on the nameplate. Make sure you have the correct frequency and voltage before connecting the power cord to an outlet. This machine must be connected to the electrical ground to protect the operator from electric shock.
-
Page 10: How To Operate The Machine
Section - A English - EN How to Operate the Machine WARNING: Machines can cause flammable materials and vapors to burn. Do not use this machine with or near matches, fuels, grain dust, solvents, thinners, or other flammable materials. CAUTION: This machine will operate only on the AC frequency and electrical voltage shown on the name- plate. - Page 11 Section - A English - EN WARNING: Control the safety interlock switch with hands only. NOTE: Make sure you hold the handle with both hands 3. Push the interlock switch first and then apply pres- sure to the levers. (see Figure 9). Figure 9 WARNING: Water solutions or cleaning materials used with this type of machine can leave wet areas...
- Page 12 DO NOT use the machine DO NOT make unauthorized modifications or alterations if it is not in proper operating condition, and report to this machine. Amano Pioneer Eclipse assumes any damage or operation faults immediately. no liabilities for injury or damage resulting from an unauthorized modification or alteration to the machine.
-
Page 13: Maintenance
If repairs to the motor are needed, do not disassemble WARNING: All electrical repairs must be done by the motor! Return the machine to the nearest Amano authorized personnel only. The machine must be Pioneer Eclipse Distributor or Amano Pioneer Eclipse tested after electrical repairs are made to make sure Authorized Service Center. - Page 14 Check machine wiring for fray or cut Check the carbon brushes of motor These items must be performed with the proper tools and training. Contact an Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and technical proficiency.
-
Page 15: Machine Specifications
Section - A English - EN Technical Specifications: Description 225BU20V 225BU20VE 225BU20VEA Voltage (V) Frequency (Hz) Current (A) Pad / Brush Speed 1500 rpm 1500 rpm 1500 rpm Power 1.5 hp (1.1 kW) 1.5 hp (1.1kW) 1.5 hp (1.1kW) Pad Size 20”... -
Page 16: Notes
Section - D English - EN PE225BU DUST CONTROL Floor Burnisher Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________... -
Page 17: 115V Electrical Schematic
Section - D English - EN Electrical Schematic - 120V Electrical Schematic - 230V ADD THIS PAGE TO PAGE 13 WITH EXISITNG WIRING SCHEMATIC THIS ONE IS FOR 127V AND 230V 225BU20EB AND 225BU20E MODELS... -
Page 18: Main Assembly (225Bu20V)
Section - D English - EN Main Assembly (225BU20V) RF068100 093021... - Page 19 Section - D English - EN Main Assembly (225BU20V) Parts List ITEM PART NUMBER DESCRIPTION NB9267 WASHER, FLAT, 5/16" NB6111 WASHER, LOCK, 5/16" NB3265 NUT, LOCK, 5/16"-18, NC NB9745 SCREW, CAP, 5/16"-18 X 3/4" NB9505 WASHER, FLAT, 5/16" X 1 1/2" MX1080 WASHER, FLAT, 3/8 MX1075...
-
Page 20: Main Assembly (225Bu20Ve & 225Bu20Vea)
Section - D English - EN Main Assembly (225BU20VE & 225BU20VEA) RF070100 093021... - Page 21 Section - D English - EN Main Assembly (225BU20VE & 225BU20VEA) Parts List ITEM PART NUMBER DESCRIPTION NB9267 WASHER, FLAT, 5/16" NB6111 WASHER, LOCK, 5/16" NB3265 NUT, LOCK, 5/16"-18, NC NB9745 SCREW, CAP, 5/16"-18 X 3/4" NB9505 WASHER, FLAT, 5/16" X 1 1/2" MX1080 WASHER, FLAT, 3/8 MX1075...
-
Page 22: Main Assembly (225Bu202V)
Section - D English - EN Main Assembly - 2000 RPM MODEL (225BU202V) RF071400 093021... - Page 23 Section - D English - EN Main Assembly - 2000 RPM MODEL (225BU202V) Parts List ITEM PART NUMBER DESCRIPTION NB9267 WASHER, FLAT, 5/16" NB6111 WASHER, LOCK, 5/16" NB3265 NUT, LOCK, 5/16"-18, NC NB9745 SCREW, CAP, 5/16"-18 X 3/4" NB9505 WASHER, FLAT, 5/16" X 1 1/2" MX1080 WASHER, FLAT, 3/8 MX1075...
-
Page 24: Handle Assembly (225Bu20V)
Section - D English - EN Handle Assembly (225BU20V) RF067800 030317... - Page 25 Section - D English - EN Handle Assembly (225BU20V) Parts List ITEM PART NUMBER DESCRIPTION HANDLE TUBE 61373A MP506600 CORD, INTERCONNECT, 5 CONDUCTOR, UL 21075A HANDLE, REAR - CFP 50781A CLAMP HANDLE C2K 21074A HANDLE, FRONT - CFP 10687A INTERLOCK ASM. 80290A SCREW, 10-32 UNF X .375 80291A...
-
Page 26: Handle Assembly (225Bu20Ve & 225Bu20Vea)
Section - D English - EN Handle Assembly (225BU20VE & 225BU20VEA) RF071600 060917... - Page 27 Section - D English - EN Handle Assembly (225BU20VE & 225BU20VEA) Parts List ITEM PART NUMBER DESCRIPTION 80290A SCREW, 10-32 UNF X .375 AS018000 CORD, INTERCONNECT, EXPORT 50781A CLAMP HANDLE C2K 61373A HANDLE TUBE 21075A HANDLE, REAR - CFP 21074A HANDLE, FRONT - CFP 10687A INTERLOCK ASM.
-
Page 28: Frame Assembly
Section - D English - EN Frame Assembly RF070000 030317... - Page 29 Section - D English - EN Frame Assembly Parts List ITEM PART NUMBER DESCRIPTION MP504600 HOUSING, BEARING, SPINDLE, FRONT, ASM. NB3275 NUT, LOCK, 1/4" NB3350 WASHER, FLAT, 1/4" NB019100 BOLT, HEX, 1/4-20 X 3/4, GD 5 MP507100 TUBE, DUST, 225BU MP507000 FRAME, DUST CONTROL, 225BU, WELDMENT 85700A...
-
Page 30: Manufacturer's Warranty
Department at 1-800-367-3550 or 1-336-372-8080. If you are (2) The machine must have been purchased from Amano Pioneer dissatisfied with the service that you receive, call or email Amano Eclipse Corporation or an authorized Amano Pioneer Eclipse Pioneer Eclipse Corporation Customer Service Department at Corporation Distributor. - Page 32 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 Machinery Directive 2006/42/EC ROHS Directive 2011/65/EU EMC Directive 2014/30/EU Harmonized Standards Applied: EN ISO 12100:2010, EN 60335-2-67:2012 LT076300 225BU DUST CONTROL_F 102021 © 2021 Amano Pioneer Eclipse Corporation...
