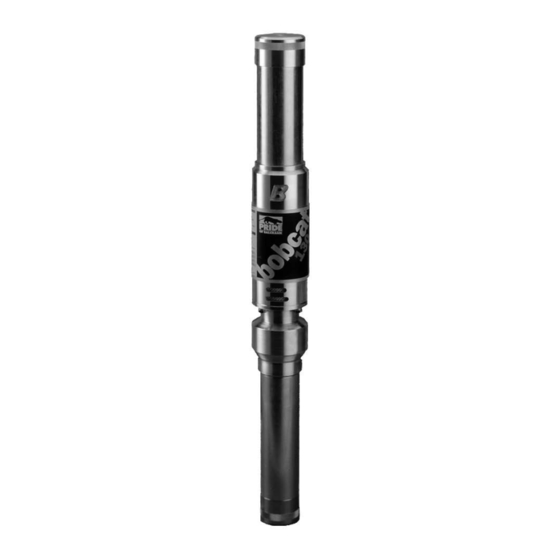

BOBCAT 130 SERIES
Multi-Purpose Transfer
Models:
1110-001
1110-003
1160-002 Antifreeze
1160-003 Antifreeze
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1028
REV. K 10/14
1:1 Ratio Pump
General Lube
General Lube

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOBCAT 130 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Balcrank BOBCAT 130 Series

Summary of Contents for Balcrank BOBCAT 130 Series

  • Page 1: Cover

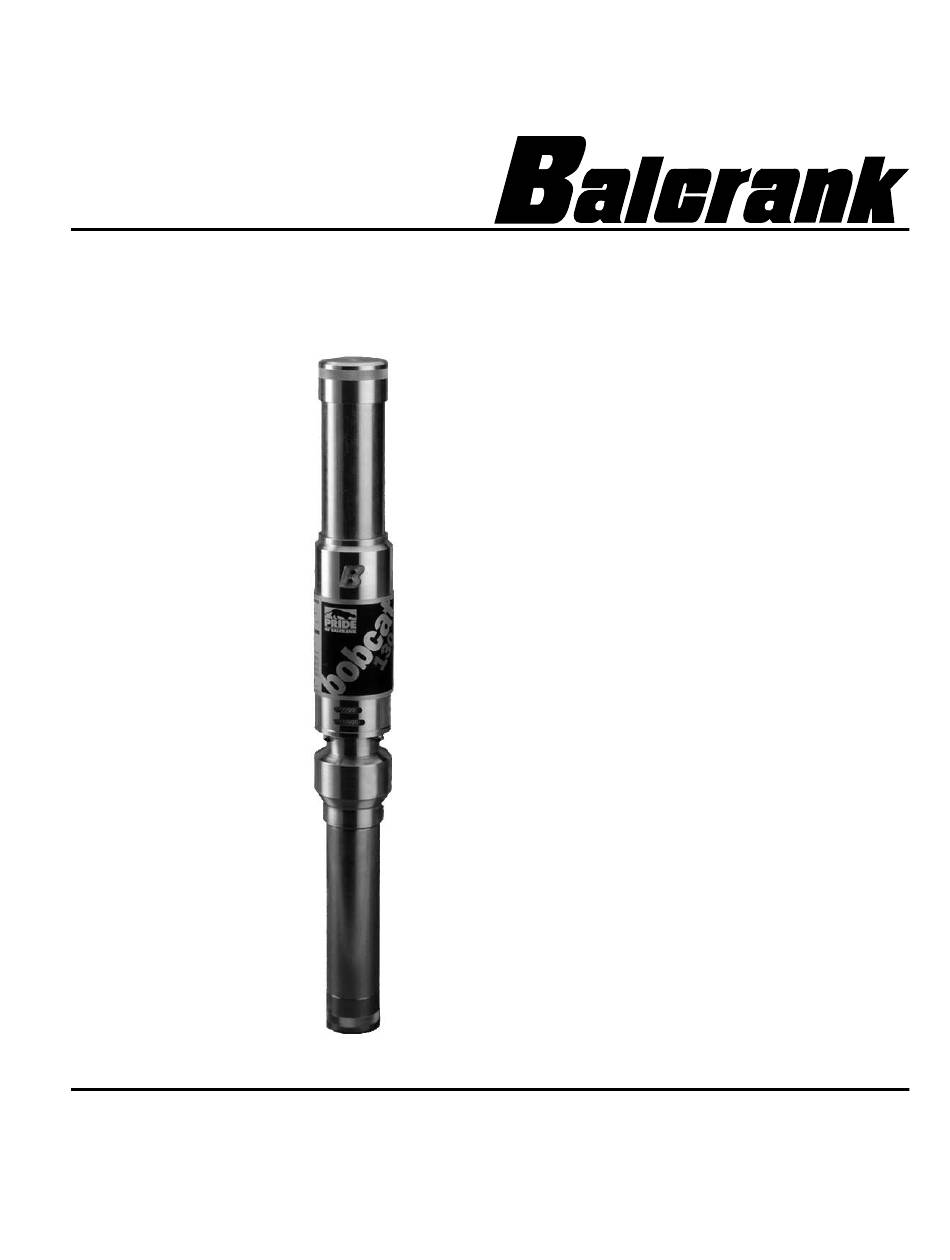

    SERVICE BULLETIN SB1028 REV. K 10/14 BOBCAT 130 SERIES 1:1 Ratio Pump Multi-Purpose Transfer Models: 1110-001 General Lube 1110-003 General Lube 1160-002 Antifreeze 1160-003 Antifreeze Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION,...

  • Page 2: General Safety Information

    General Safety Thoroughly read and understand this manual WARNING before installing, operating or servicing the described products. WARNING: Bobcat ™ pump (1130-005) develops IMPORTANT 450 psi (30.7 Bar) maximum working pressure at 150 psi (10.3 Bar) maximum inlet air pressure and stall conditions. Be Because this pump can be sure that any components or accessories incorporated into a pressurized...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TECHNICAL DATA Cover ...............1 Pressure Ratio ...........1.3:1 General Safety Information......2 Air Pressure Operating Range ..40-150 psi Technical Data ..........3 Maximum Fluid Working PRessure ..195 psi Dimensional Data ..........4 Effective Air Piston Area ....1.77 sq. in. Installation ............5 Effective Fliud Piston Area ....

  • Page 4: Dimensional Data

    These mufflers also act as filters, inhibiting air line debris from exiting the pump where cleaner environments are required. The 1 -piece pumpair motor is factory-lubricated OVERALL LENGTH with a life-tested, synthetic grease (Balcrank MODEL “A” “B” “C” #826733). This grease coats all internal parts and (Stub Length) repels air line moisture to inhibit corrosion.

  • Page 5: Installation

    INSTALLATION TYPICAL INSTALLATIONS Remove pump from carton and attach to cover, bung fitting or other mountings. Blow out any foreign material from the air supply line before connecting to pump. An air line filter/regulator is recommended for all applications; wet and dirty air will shorten the life of the pump. NOTE: For severe duty applications, an air line lubricator is recommended for better performance and longer pump life.

  • Page 6: Operation

    OPERATION WARNING: Pump develops 195 NOTE: All fluids used in this pump must be psi (13.3 bar) maximum working pressure at chemically compatible with the materials used 150 psi (10.3 bar) maximum inlet air pressure. to manufacture the “wetted parts”. Consult your NEVER exceed the maximum working chemical supplier to ensure compatibility.

  • Page 7: Troubleshooting

    TROUBLESHOOTING GUIDE Pressure Relief Procedure: To reduce the risk of serious bodily injury, including fluid injection or splashing into the eyes and/or onto the skin, follow this procedure NOTE: Check all other possible causes before below before maintaining and/or repairing the pump, solenoid and/or impulse meter or any part of your system.

  • Page 8: Parts Listing

    Pump Schematic Bobcat 130 Series 1:1 Ratio Pump This assembly used on Model Nos. 1110-003 and 1160-003 This assembly used on Model Nos. 1110-001 and 1160-002 These assemblies used on all Bobcat 130 pumps Figure 5 Pump Schematic...

  • Page 9: Pump Servicing

    CRIMP NUT is imperative that any grease removed during 805756 WASHER routine maintenance be replaced. Contact your 826052 ADAPTOR local Balcrank Distributor, using the above part 826680 number, for replacement grease. 827414 LOWER PUMP ROD (ALUM) 827415 LOWER PUMP ROD (316SS)
  • Page 10 (28). Remove the backup rod in protective sheet material before placing in the ring (29) and seal (30). Apply Balcrank lubricating vise. Apply thread adhesive to the connecting rod grease (p/n 826733) to the seal area and install a and reassemble with the short thread length into the new seal flairedside down.

  • Page 11: Accessories

    ACCESSORIES Air Regulators Hose & Tube Kit 4410-010 1/4” nptf (mini) 3260-028 3260-029 1/4” nptf  1” npt telescoping suction tube 3230-003 3/8” notf  Air eliminator set (float and retainer)  Air hose, 1/4” npt x 3 ft.  Fluid hose, 3/4” npt x 5 ft. Air Filter/ReguIators  Bell coupling, 3/4”...

  • Page 12: Warranty

    For Warranty Information Visit: www.balcrank.com Revision Log: Rev. K - Item 14 (1” Ball Delrin) removed from repair kits (828069 & 828070) per Balcrank Corporation ECN 13719 Weaverville, NC 28787 800-747-5300 800-763-0840 Fax SERVICE BULLETIN SB1028 Rev. K 10/14...

This manual is also suitable for:

1110-0011110-0031160-0021160-003

Table of Contents
