Diesel Fuel Pumps
Multi-Purpose Transfer
Models:
1170-001 Pump Only
1170-002 Pump with Flow
!
In the presence of explosive vapors, take
action to prevent static sparking. Failure to ground the
pump, piping, valves, containers, or other miscellaneous
equipment can result in fire or explosion. A green
grounding lug is provided on the pump.
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1080
New Release 11/06
Meter
WARNING
®
Advertisement
Table of Contents
Related Manuals for Balcrank 1170-002
Summary of Contents for Balcrank 1170-002

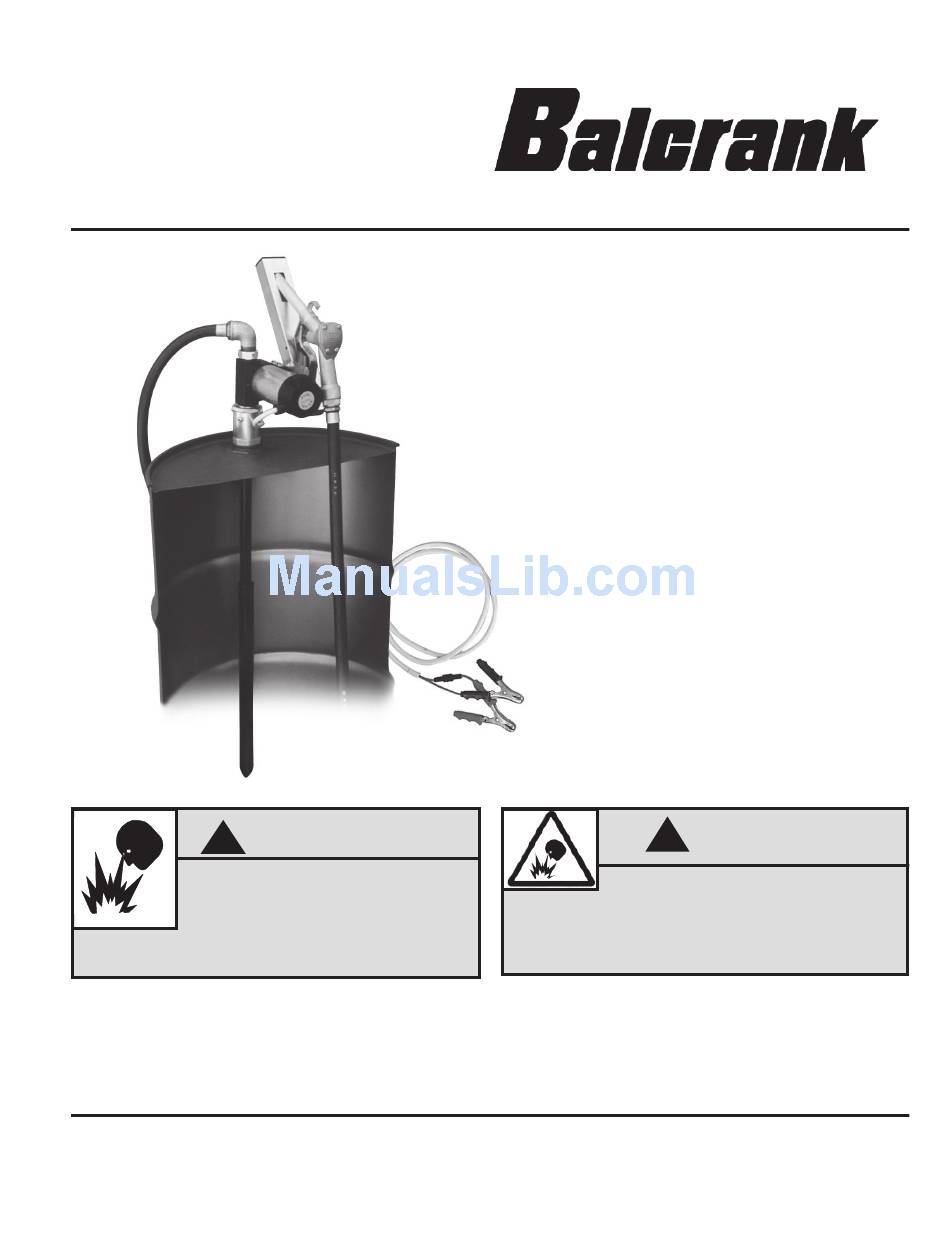

- Page 1 SERVICE BULLETIN SB1080 New Release 11/06 ® Diesel Fuel Pumps Multi-Purpose Transfer Models: 1170-001 Pump Only 1170-002 Pump with Flow Meter WARNING WARNING DANGER: Not for use with fluids In the presence of explosive vapors, take that have a flash point below 100°F action to prevent static sparking. Failure to ground the (38°C). Examples: gasoline, alcohol. pump, piping, valves, containers, or other miscellaneous Sparking could result in an explosion which could result equipment can result in fire or explosion. A green grounding lug is provided on the pump. in death. Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE...
-
Page 2: General Safety Requirements
GENERAL SAFETY REQUIREMENTS NOTE: THOROUGHLY READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. WARNING DANGER: Not for use with fluids that have a flash point below 100°F (38°C). Examples: gasoline, alcohol. Sparking could result in an explosion which could result in death. WARNING In the presence of explosive vapors, take action to prevent static sparking. Failure to ground the pump, piping, valves, containers, or other miscellaneous equipment can result in fire or explosion. A green grounding lug is provided on the pump. DANGER Complies with applicable European standards... -
Page 3: Safety Rules
Maintenance ......6 specialized in the disposal of industrial refuse. SAFETY RULES GENERAL INFORMATION Protective Gloves. Prolonged contact with Models 1170-001 and 1170-002 fuel units are hydrocarbons can cause skin irritation: when designed for the transfer of diesel fuel for private dispensing fuel always use PVC gloves conforming use. Characterized by maximum safety and to the standard EN 88 cat. -
Page 4: Hydraulic Connections
• Connect the hose and nozzle assembly to the from the electrical parameters are: Voltage ± pump and motor assembly ensuring that there are no leaks by using suitable thread tape. Connecting the 1170-001 or 1170-002 12 • Mount the nozzle holster to the pump with VDC Simply connect the clamp to a battery the aid of the screw set that accompanies the connection. pump. WARNING - Before to connect check the battery • Connect the battery cables with the aid of... -
Page 5: Start-Up Operation
START UP OPERATION How to Dispense Fuel Wetting the Pump - The pump provided with the • Rotate the reset handle in a counter-clockwise unit is a self-priming pump capable of suctioning direction to completely zero-out the batch total. with empty tube, nevertheless, the pump should The cumulative total cannot be reset. be partially filled with fluid before turning it on for • Extract the dispensing nozzle and insert it in the first time. It is left to the technician’s experience the container to be filled. to determine the best way to wet the pump. • Press the pump switch to start the pump. • Press the nozzle lever and keep it pressed until Calibrating the Meter (optional) - The meter is you have dispensed the desired quantity. already calibrated in the factory to be used with • When dispensing is finished, press the pump diesel fuel. It is possible to recalibrate on site the switch in “OFF” position to stop the pump. meter using the calibrating pin. If the meter indicate Replace the nozzle. - Page 6 NOTES...
- Page 7 NOTES...
