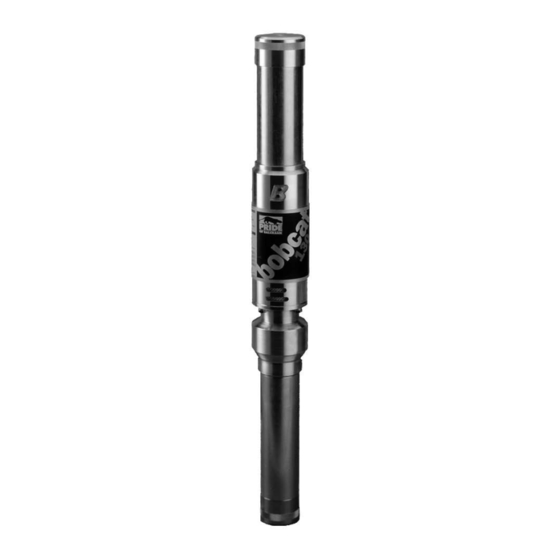

Balcrank BOBCAT 130 Series Service Bulletin
1.3:1 ratio pump multi-purpose transfer
Hide thumbs
Also See for BOBCAT 130 Series:
Table of Contents
Advertisement
Quick Links
BOBCAT
™
1.3:1 Ratio Pump
Multi-Purpose Transfer
Models:
1110-001
1110-004
1160-002 Antifreeze
1160-006 Antifreeze
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
MAINTENANCE AND REPAIR GUIDE
SERVICE BULLETIN SB1045
Rev. A
130 SERIES
General Lube
General Lube
6/03
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balcrank BOBCAT 130 Series
Summary of Contents for Balcrank BOBCAT 130 Series
-
Page 1: Cover
SERVICE BULLETIN SB1045 Rev. A 6/03 ® BOBCAT 130 SERIES ™ 1.3:1 Ratio Pump Multi-Purpose Transfer Models: 1110-001 General Lube 1110-004 General Lube 1160-002 Antifreeze 1160-006 Antifreeze Thoroughly read and understand this manual before installing, operating or servicing this equipment. OPERATION, INSTALLATION, MAINTENANCE AND REPAIR GUIDE... -
Page 2: General Safety Information
GENERAL SAFETY REQUIREMENTS WARNING NOTE: THOROUGHLY READ AND UNDERSTAND THIS MANUAL BEFORE INSTALLING, OPERATING THIS PUMP CONTAINS OR SERVICING THIS EQUIPMENT. ALUMINUM AND ZINC PARTS. DO NOT use 1-1-1 IMPORTANT Trichloroethane, methylene chloride or other halogenated hydrocarbon solvents or fluids Because this pump can containing such solvents in this pump. -
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL DATA Cover ...............1 Pressure Ratio ...........1.3:1 General Safety Information......2 Air Pressure Operating Range ..40-150 psi Technical Data ..........3 Maximum Fluid Working Pressure ..195 psi Dimensional Data ..........4 Effective Air Piston Area ....1.77 sq. in. Installation ............5 Effective Fluid Piston Area .... -
Page 4: Dimensional Data
OVERALL LENGTH The 1-piece pump air motor is factory-lubricated MODEL “A” “B” “C” with a life-tested, synthetic grease (Balcrank (Stub Length) #826733). This grease coats all internal parts and 1110-001 26.2” 9.8” 8.2” repels air line moisture to inhibit corrosion. Steel 1160-002 26.2”... -
Page 5: Installation
TYPICAL INSTALLATIONS WARNING: Attach a proper ground wire to the Bobcat’s grounding lug (item 40) before starting the pump. INSTALLATION Remove pump from carton and attach to cover, bung fitting or other mountings. Blow out any foreign material from the air supply line before connecting to pump. -
Page 6: Operation
OPERATION NOTE: All fluids used in this pump must be chemically compatible with the materials used to manufacture the “wetted parts”. Consult your WARNING chemical supplier to ensure compatibility. Pump develops 195 PSI TO START PUMP: (13.3 BAR) maximum working pressure at 150 1. -
Page 7: Troubleshooting
TROUBLESHOOTING GUIDE NOTE: Check all other possible causes before disassembling the pump. TROUBLE PROBABLE CAUSES REMEDY Pump does not operate ncrease air supply; clear nadequate air supply pressure or restricted air line Open; clear Clogged fluid lines, hoses, valves, etc. Service/replace air motor Damaged air motor Refill, reprime and/or flush... -
Page 8: Parts Listing
Pump Schematic Bobcat 130 Series 1:1 Ratio Pump ™ This assembly used on Stainless Steel Model Nos. 1160-002 and 1160-006. This assembly used on Carbon Steel Model N o s . 111 0 - 0 0 1 a n d 1110-004. -
Page 9: Pump Servicing
PUMP SERVICING 828988 Fluid Piston (316SS) NOTE: Air motor is lubricated with a life tested 816853 O-Ring, Buna-N, -223** 827065 Quad-Ring, Viton, -325*** synthetic grease (Balcrank P/N 826733) at ® 826660 Cap (Alum.) the factory. This grease coats all parts and 828529 Flat Gasket* repels air line moisture to inhibit corrosion. - Page 10 (28). Remove the backup rod in protective material before placing in the vise. ring (29) and seal (30). Apply Balcrank lubricating Apply thread adhesive to the connecting rod (6) and grease (p/n 826733) to the seal area and install a new reassemble with the short thread length into the rod.
-
Page 11: Accessories
In-Line Hand Operated Valves Bill of Material checked for current 3230-003 300 psi (air), 1/4” nptf content. 3230-002 2,000 psi, 1/2” nptf Pump was tested and met Balcrank Spigot & Tube Kit performance standards. 4410-009 I __________________________________ Gooseneck spigot ... -
Page 12: Warranty
Warranty Service Claim number ® (WSC#) clearly marked on the outside of the carton. Balcrank’s sole responsibility is for defects in material and workmanship, and Buyer’s sole and exclusive remedy hereunder, shall be limited to repair or replacement of the defective part or equipment.
