Transition Networks B-CF-01(SC) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS

Host Connection
IBM® 317x or 327x Cluster Controller
Case dimensions
4.75" x 3.0" x 1.0"
Shipping Weight
2 pounds
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
Power Supply Requirements
Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1998 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kilograms)
0-50°C (32-122°F)
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33093.A
3270 Copper/Fiber
B-CF-01, B-CF-01(SC), B-CF-01(SM)
USER'S GUIDE

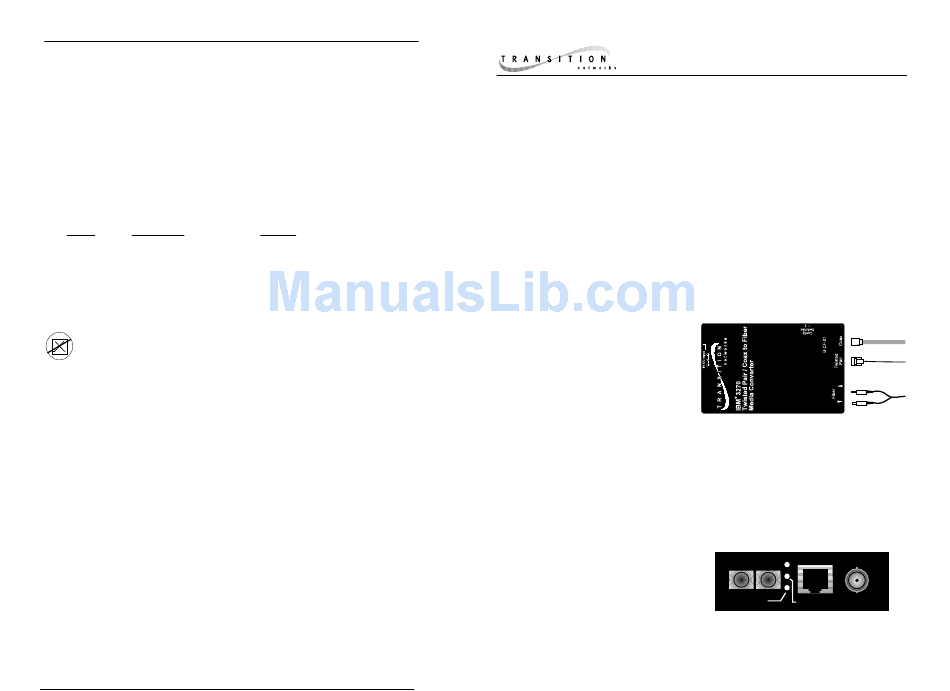

The TRANSITION Networks 3270 Twisted Pair/Coax (Copper) to Fiber
B-CF-01series media converters, designed to support all
compliant devices, extends the signal distance of a
to terminal links.
Controller
B-CF-01 series media converters allow twisted-pair copper network extension
distances up to 1524 meters (762 meters each connection on two media
converters) OR coax copper network extension distances up to 614 meters
(307 meters each connection on two media converters) AND fiber network
extension distances up to 2 kilometers on multimode fiber and up to 8
kilometers on singlemode fiber.*
B-CF-01
Provides an RJ-45 twisted-pair
connector to copper cable, a
BNC connector to coaxial cable,
and a set of RX (receive) and TX
(transmit) ST connectors to
multimode fiber-optic cable.
B-CF-01(SC)
Provides an RJ-45 twisted-pair
connector to copper cable, a BNC
connector to coaxial cable, and an
RX (receive) and TX (transmit) SC
connector to multimode fiber-optic
cable.
STATUS LEDS
Power Steady green LED
indicates connection to
external AC power.
UTP/STP Blinking green LED
- Coax indicates network traffic on unshielded or shielded twisted-pair
link OR on the coaxial cable.
Fiber Blinking green LED indicates network traffic on fiber link.
*See note at top of pages 4 & 5.
Minneapolis, MN 55344 USA
Media Converter
®
3270
IBM
317x or 327x Cluster
OR
B-CF-01(SM)
Provides an RJ-45 twisted-pair
connector to copper cable, a BNC
connector to coaxial cable, and an
RX (receive) and TX (transmit) SC
connector to singlemode fiber-optic
cable.
Power
TX
RX
10BASE-T
U T P / S T P - Coax
Fiber
