Communication Ports
The RUGGEDCOM RS400F can be equipped with various types of communication
ports to enhance its abilities and performance. To determine which ports are
equipped on the device, refer to the factory data file available through RUGGEDCOM
RS400F. For more information on how to access the factory data file, refer to the
"RUGGEDCOM ROS Configuration Manual" for the RUGGEDCOM RS400F.

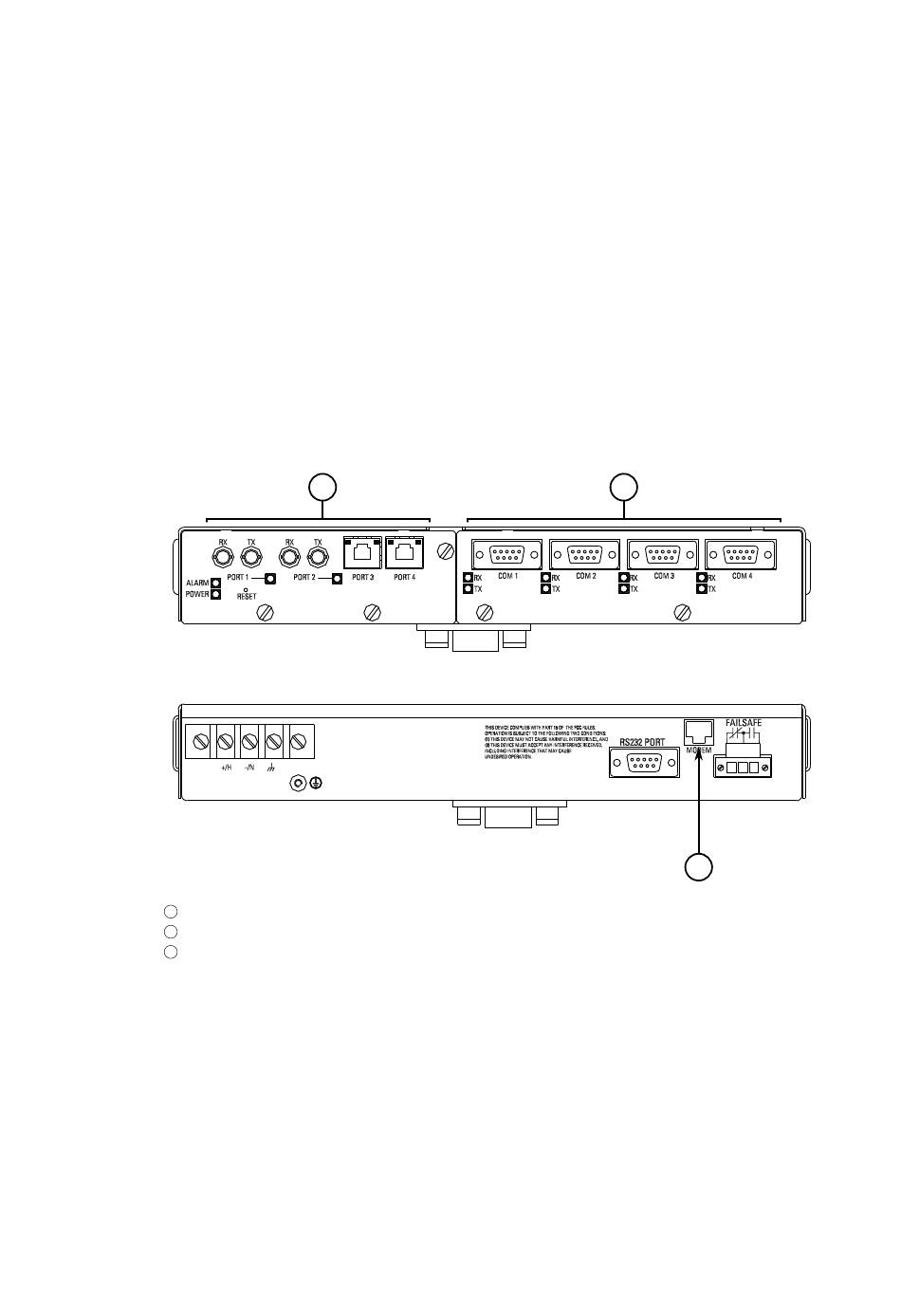

Each communication port type has a specific place in the RUGGEDCOM RS400F
chassis.
1
2
3
Figure 4.1
4.1
Copper Ethernet Ports
The RUGGEDCOM RS400F supports several 10/100Base-TX Ethernet ports that allow
connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP) cables with
RJ45 male connectors. The RJ45 connectors are directly connected to the chassis
ground on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
RUGGEDCOM RS400F
Installation Manual, 11/2022, C79000-G8976-1341-06
1
Copper or Fiber Ethernet Ports
Serial Ports
Modem Port (Optional)
Port Assignment
2
3
4
19
