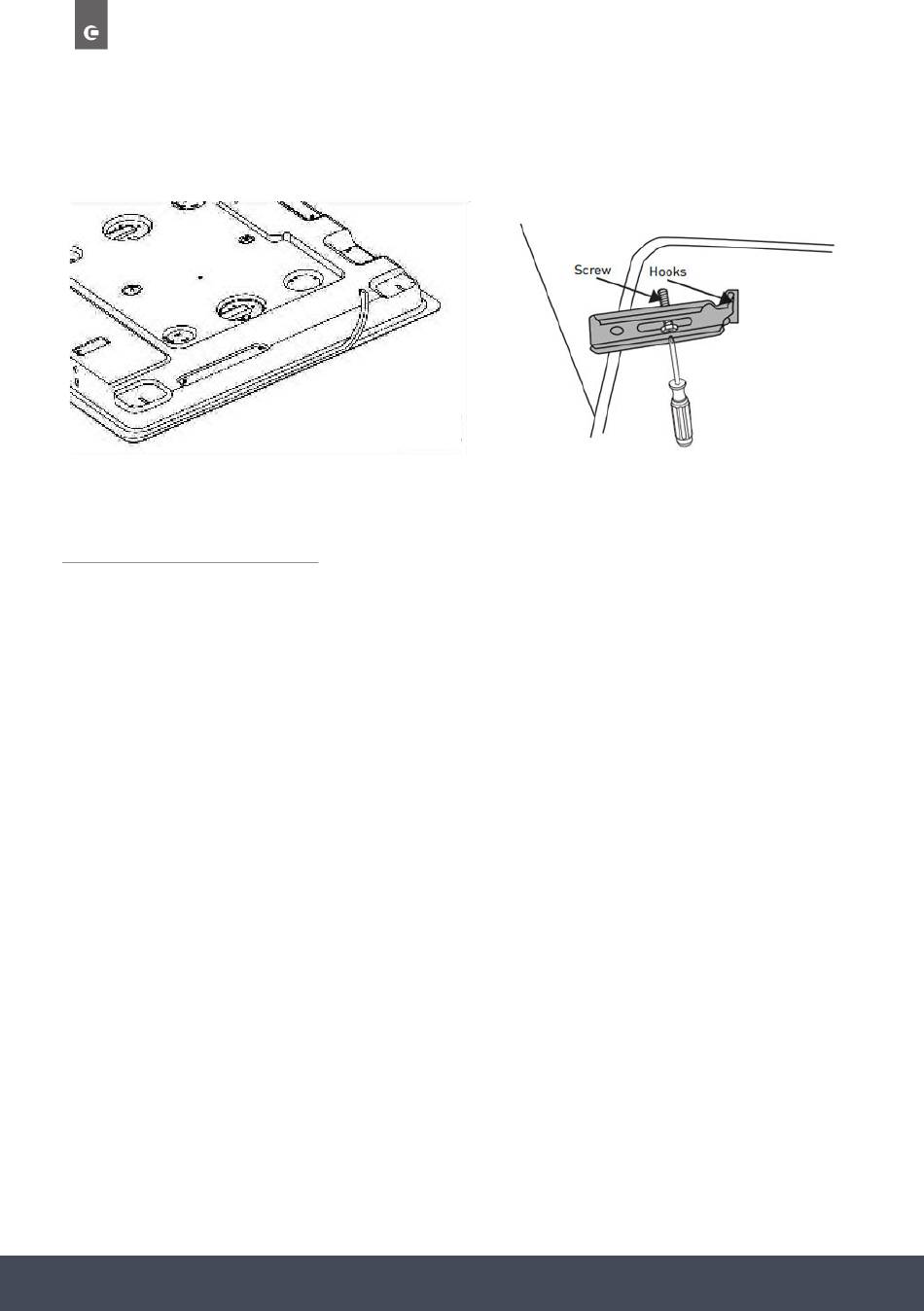

Apply the seal to the underside edge of the hob. Press carefully into place.
Fixing hooks are provided to secure the hob to your worktop. It is advisable
to use all the fixings supplied.
G A S C O N N E C T I O N
The hob should be connected to the gas supply by a Gas safe registered installer. During
installation of this product it is essential to fit an approved gas tap to isolate the appliance
from the supply for the convenience of any subsequent removal or servicing. Connection of
the appliance to the gas mains or liquid gas must be carried out in compliance with current
regulations, and only after it is ascertained that it is adaptable to the type of gas to be used. If
not, follow the instructions indicated in the paragraph headed "Adaptation to different gas types".
In the case of connection to liquid gas, by bottle/tank, use pressure regulators that conform to
current regulations in force.
I M P O R TA N T:
For safety, for the correct regulation of gas use and long life of the appliance, ensure that the gas
pressure conforms to the indications given in "Burners and injector specifications".
(Copper or steel)
› Connection to the gas source must be done in such a way as to not create any stress points in
any part of the appliance.
› The appliance is supplied with a 1/2" gas male 'L' shaped union and a gasket for the
attachment to the gas supply.
› Should this union have to be re-positioned, the gasket must be replaced.
