Summary of Contents for Caple C824C

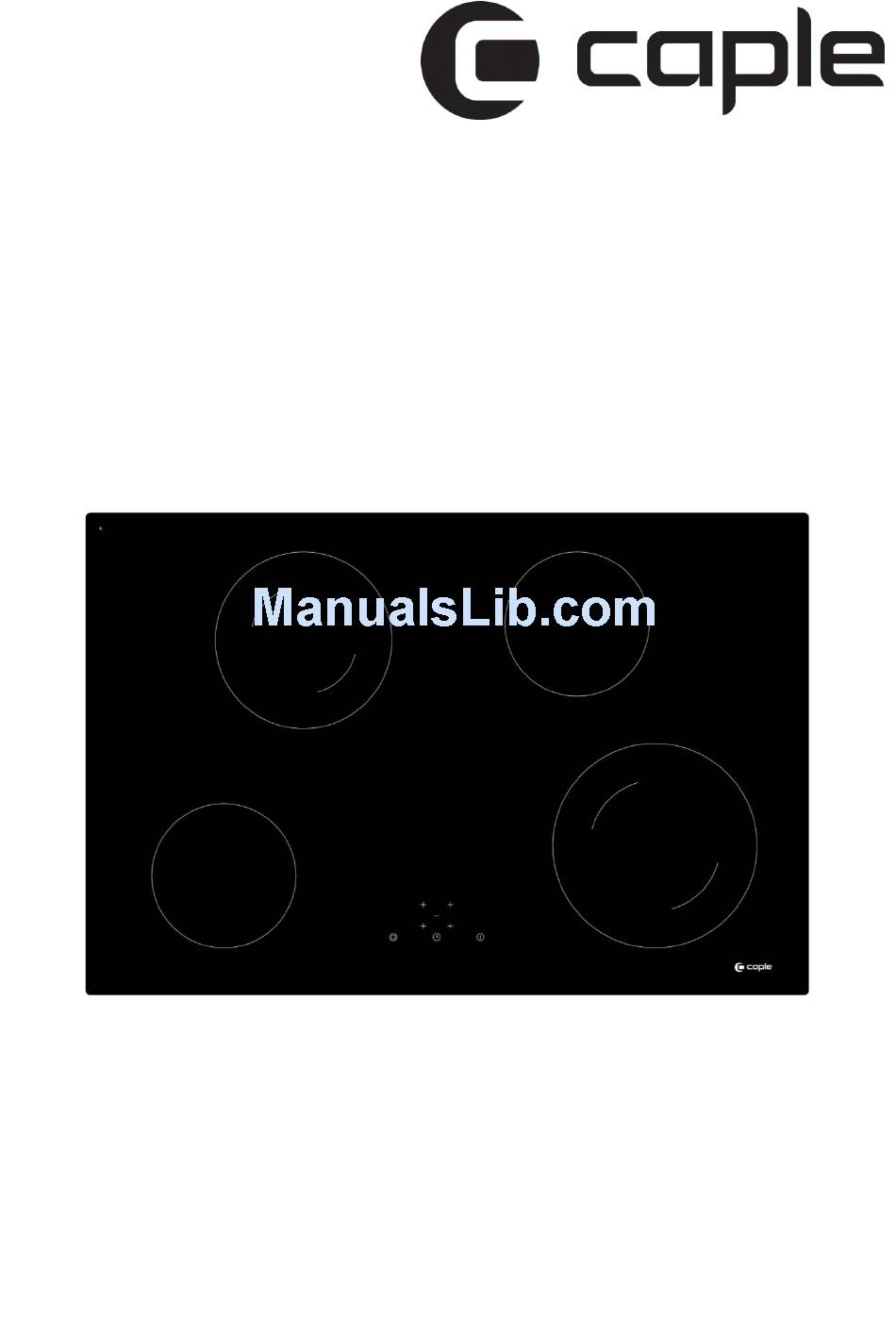

- Page 1 Instruction manual for hob Model: C824C Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
Dear customers, Thank you for having chosen our ceramic hob. In order to make the best use of your appliance, we would advise you to carefully read the following instructions and keep them to refer to later. SUMMARY SAFETY ..........................3 RECAUTIONS BEFORE USING ......................3 SING THE APPLIANCE... -
Page 3: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance should only be done by approved specialists. The manufacturer can not be responsible for damage caused by installation or connection errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Precautions Not To Damage The Appliance
Do not place any metallic object except heating containers. In case of untimely engaging or residual heat, this one may heat, melt or even burn. Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire. ... -
Page 5: Precautions In Case Of Appliance Failure
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact Caple service. • If the supply cord is damaged, it must be replaced by the manufacturer, it's service agent or a similarly qualified person in order to avoid a hazard. -
Page 6: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Technical data Model C824C Total power 6300 W Energy consumption for the hob EChob** 175.5 Wh/kg 155 mm Front left heating zone Nominal power* 1200 W Standardised cookware category** Energy consumption ECcw** 173.8 Wh/kg 115/190 mm... -
Page 7: Control Panel
Control panel Timer display Power display [ + ] key Control light cooking zone [-] key for all 4 heating zones Dual zone indicator light cooking zone On/Off key Dual zone key Timer key USE OF THE APPLIANCE Touch controls Your ceramic hob is equipped with electronic controls with sensitive touch keys. -
Page 8: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before the first use Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted color on the glass surface. Starting-up Start-up/ switch off the hob Action Control panel Display... -
Page 9: Automatic Cooking
Automatic cooking “go and stop” All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power for a certain time, then reduces it's power automatically to the preselected level. Start-up: Action Control panel Display... -
Page 10: Cooking Advices
Egg timer function : Action Control panel Display Activate the hob Press key [ 3 or 4 x [ 0 ] or [ H ] Select« Timer » Press key [ Timer [ 00 ] min Decrease the time Press key [ - ] [ 00 ] wents to 60,59…... -
Page 11: Troubleshooting
The control panel displays [ U400 ], [ Er25 ]or [ U4 ] : The hob is not connected to the network. Check the connection and reconnect the hob. If one of the problems above persists, call Caple service - 0117 938 7420... -
Page 12: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. -
Page 13: Installation Instructions
Reference Cut-size C824C 750 x 490 mm • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 14: Electrical Connection
ELECTRICAL CONNECTION The installation of this appliance and the connection to the electrical supply should be performed by an authorised electrician. After the installation, make sure that all the parts under tension are well protected. The data regarding connection to the network are summarized on the rating label, underneath the hob. - Page 16 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference 23060/0...
