Summary of Contents for Caple C772G

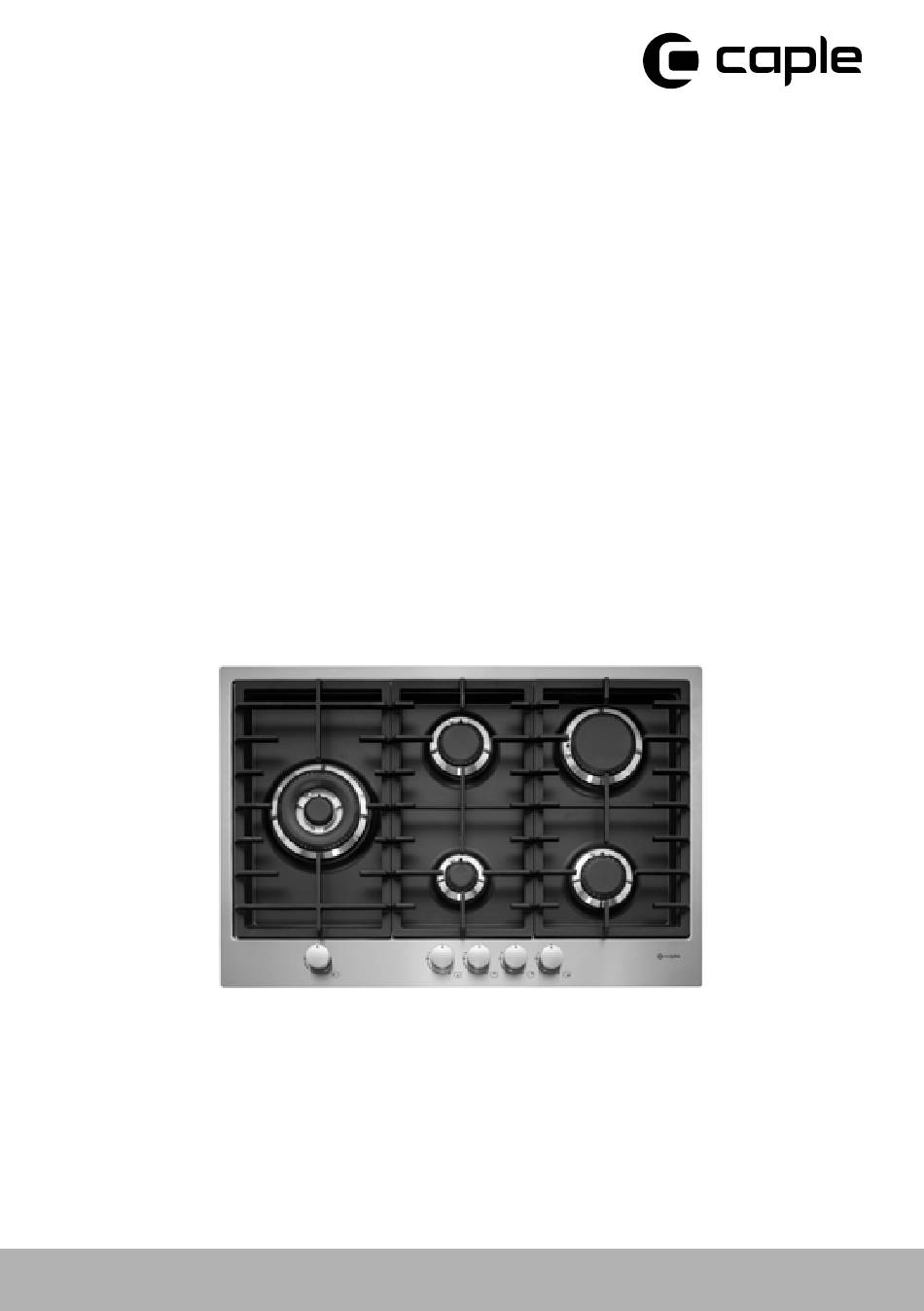

- Page 1 Gas hob Instruction manual C772G...
-
Page 2: Table Of Contents
CONTENTS Safety Warnings Installation Warnings Environmental Protection Warranty Operating Instructions Installation Overview Technical Characteristics Installation Dimensions Please keep this instruction manual for future reference Instruction manual C772G... -
Page 3: Safety Warnings
- Cleaning and user maintenance should not be carried out by children without supervision. - The appliance is not intended to be operated by means of an external timer or separate remote control system. Please keep this instruction manual for future reference Instruction manual C772G... - Page 4 • Staff kitchen areas in shops, offices and other working environments. • Bed and breakfast type environments. • By clients in hotels, motels and other residential type environments. Please keep this instruction manual for future reference Instruction manual C772G...
- Page 5 - When connecting the power cable, make sure it is not in direct contact (eg. through the use of insulation sleeves) with parts that can reach temperatures of over 50° C. Please keep this instruction manual for future reference Instruction manual C772G...
-
Page 6: Installation Warnings
- The products of combustion must be discharged outside through an extractor hood or an electric fan Please keep this instruction manual for future reference Instruction manual C772G... - Page 7 - For any possible repair or modification, Contact Caple service directly for help, and ensure original spare parts only are used. - The rating label, with the serial number and model number included, is located on the underside of the hob.
-
Page 8: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 9: Operating Instructions
The gas supply can be interrupted by turning the knob clockwise up to the closing position. If there is no power supply, it is possible to light the burners with matches, setting the knob to the start-up point (large flame, fig. 1). Please keep this instruction manual for future reference Instruction manual C772G... - Page 10 - When the burner is started up, check that the flame is regular, and before taking pans away, always lower the flame or put it out. Please keep this instruction manual for future reference Instruction manual C772G...
- Page 11 (see the arrows drawn in the burner and lid). - The burner cap must be positioned flat on the burner base. ✗ ✓ Please keep this instruction manual for future reference Instruction manual C772G...
- Page 12 - Make sure that the flame-dividing ducts on the burner base are not clogged. - Check that the thermocouple and the ignition electrode are always perfectly cleaned to ensure optimum operation. Please keep this instruction manual for future reference Instruction manual C772G...
-
Page 13: Installation
THE OPERATIONS INDICATED BELOW MUST BE FOLLOWED BY QUALIFIED PERSONNEL ONLY, IN CONFORMITY WITH THE REGULATIONS IN FORCE. CAPLE REFUSES ALL RESPONSIBILITY FOR DAMAGES TO PEOPLE, ANIMALS OR OTHERS, RESULTING FROM THE FAILURE TO COMPLY WITH SUCH PROVISIONS. INSTALLING THE HOB The appliance is designed to be installed into heat-resistant furniture. - Page 14 If there are other fuel burning appliances in the same room BS 5440: Part 2 should be consulted to determine the air vent requirements. Please keep this instruction manual for future reference Instruction manual C772G...
- Page 15 GROUNDING IS COMPULSORY. This device must be at a suitable opening distance from the contacts in order to allow the entire disconnection in case of overvoltage category III, in accordance with Please keep this instruction manual for future reference Instruction manual C772G...
- Page 16 - Fit the corresponding gas injectors (U) instead, in accordance with the marking of the injectors and the gas characteristics table. - Tighten the injectors. - Fit the cover (C) and tighten the screws. fig 8 fig 8.A Please keep this instruction manual for future reference Instruction manual C772G...
- Page 17 , type H05VV-F or H05RR-F, complying with the regulations in force. The connection to the terminal block must be as shown in fig. 10: brown cable L (phase) blue cable N (neutral) green-yellow cable (ground) fig 10 Please keep this instruction manual for future reference Instruction manual C772G...
-
Page 18: Overview
✗ ✓ OVERVIEW Burners Watts 1 Rapid burner 3000 W 2 Semi-rapid burner 1750 W 3 Auxiliary burner 1000 W 4 Dual ring burner 4000 W Please keep this instruction manual for future reference Instruction manual C772G... -
Page 19: Technical Characteristics
- Use a suitable size pan according to the size of the zone. - Use pans with lids, minimize the amount of liquid or fat, when liquid starts boiling, reduce the setting. Please keep this instruction manual for future reference Instruction manual C772G... -
Page 20: Installation Dimensions
INSTALLATION DIMENSIONS Low profile inset installation Please keep this instruction manual for future reference Instruction manual C772G... - Page 21 Do not use a permanent sealant if flush installing, as the hob will need to be removed for servicing, as it cannot be serviced from underneath. If the hob is sealed into position the product will be deemed unserviceable and Caple cannot be held responsible.
- Page 22 Notes: Please keep this instruction manual for future reference Instruction manual C772G...
- Page 23 Notes: Please keep this instruction manual for future reference Instruction manual C772G...
- Page 24 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual C772G...
