Summary of Contents for Caple C824C

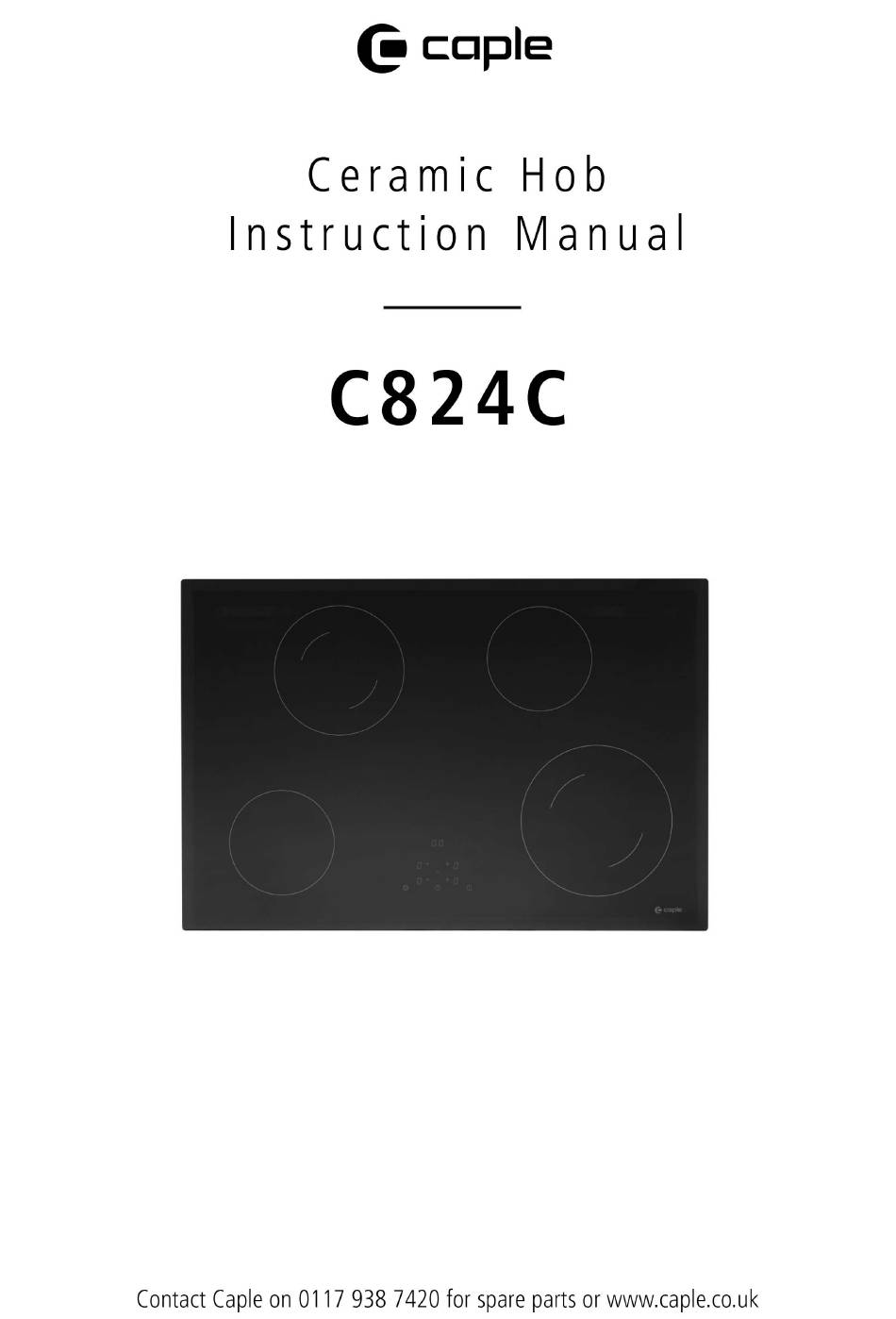

- Page 2 Dear customers, Thank you for having chosen our ceramic hob. In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.
-
Page 3: Table Of Contents
SUMMARY ............................. 3 SUMMARY ............................4 SAFETY ....................4 RECAUTIONS BEFORE USING ....................... 5 SING THE APPLIANCE ................. 6 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................7 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................ 7 THER PROTECTIONS ....................... 8 ENVIRONMENTAL PROTECTION .................... -
Page 4: Safety
SAFETY Precautions before using • Unpack the hob and all associated components, taking care not to lose or mishandle any parts. • The appliance must be installed by a suitably qualified professional and connected to the electricity supply by a qualified electrician who will comply with the local regulations. -
Page 5: Using The Appliance
Using the appliance • Always switch cooking zones off after use. • Take particular care when cooking with oils or fats that may ignite. • Cooking pans and ustensils and the hob itself become hot during use. Caution, risk of injury to people and pets both during and after use. -
Page 6: Precautions Not To Damage The Appliance
Precautions not to damage the appliance • Use of damaged pans or those with raw cast iron bottoms may damage the hob ceramic glass. • Abrasive materials such as scouring cleaners and grits may damage the ceramic glass. • Avoid dropping objects onto the ceramic glass. •... -
Page 7: Precautions In Case Of Appliance Failure
Precautions in case of appliance failure • If a fault is noticed, switch off the appliance and turn off the electricity supply. • There are no user-serviceable parts inside the appliance. Don’t open the appliance by yourself. All repairs must be performed by a suitably qualified service engineer or similar. -
Page 8: Environmental Protection
Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges. Spare parts are only available from Caple Service and spare parts authorised centres. -
Page 9: Description Of The Appliance

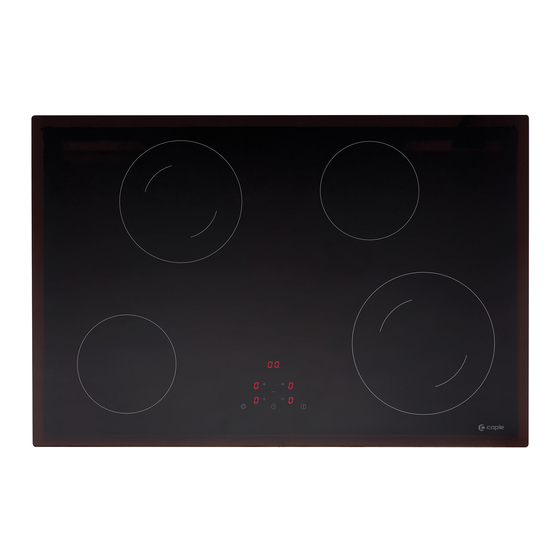

DESCRIPTION OF THE APPLIANCE Technical data Type C824C Total power 6300 W Energy consumption for the hob EChob* 175.5 Wh/kg Front left heating zone Ø 155 mm Nominal power 1200 W Standardised cookware category* Energy consumption ECcw* 173.8 Wh/kg Rear left heating zone Ø... -
Page 10: Control Panel
Control panel Timer display [ + ] key Power display Control light cooking zone [ - ] key for all 4 heating zones Extension zone control light Extension zone key On/Off key Timer key USE OF THE APPLIANCE Display Display Designation Function Zero... -
Page 11: Starting-Up And Appliance Management
STARTING-UP AND APPLIANCE MANAGEMENT Before Using Your New Ceramic Hob Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent, as this risks causing blue-tinted colour on the glass surface. Touch Control Your induction hob is equipped with electronic controls with touch control keys. When your finger presses the key, the corresponding command is activated. -
Page 12: Control Panel Locking
Control panel locking To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ Locking: Action Control panel Display Start Touch key [ [ 0 ] or [ H ] on 4 displays Hob locking Touch simultaneous [ - ] and [ + ]... -
Page 13: Timer
Timer The timer is able to be used simultaneous with all 4 heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone. • Setting and modification of the cooking time: Action Control panel Display Zone selection Press key [ + ] from the zone... -
Page 14: Cooking Advices
COOKING ADVICES Examples of power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforhand 2 to 3 Simmering Rice, pudding, sugar syrop Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5... -
Page 15: Troubleshooting
The control panel displays [ U400 ], [ Er25 ]or [ U4 ]: • The hob is not connected to the network. Check the connection and reconnect the hob. If one of the symbols above persists, contact Caple Service. T - 0117 938 7420... -
Page 16: Installation Instructions
INSTALLATION INSTRUCTIONS The installation comes under the exclusive responsibility of specialists. The installer is held to respect the legislation and the standards enforced in their country. How to stick the gasket The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation has to be done carefully, in conformity of the following drawing. - Page 17 • The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions, use a minimum distance of 760mm. • After installation, make sure the connection cord is not being constrained e.g. by the drawer.
-
Page 18: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should only be carried out by a qualified electrician. • When installing, make sure no part of the hob is under stress or tension. • Necessary Connection data is placed on the hob casing near the connection box. •... - Page 19 Notes:...
- Page 20 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk 23060-1 Please keep this instruction manual for future reference...
