INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT
PLACE THESE INSTRUCTIONS IN THE VEHICLE'S GLOVEBOX AFTER INSTALLATION IS COMPLETED

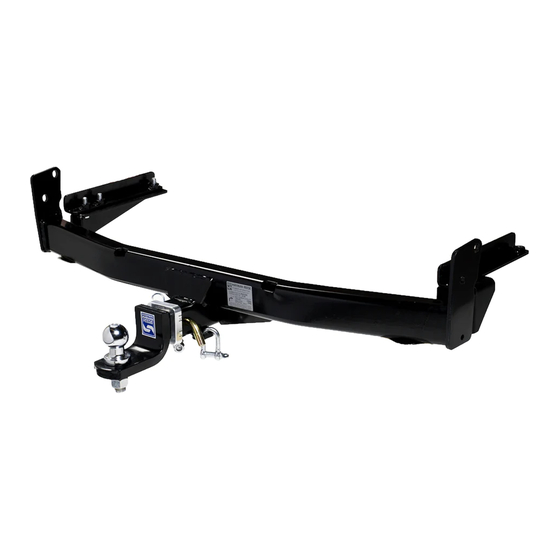

Towbar Installation Instructions
HYUNDAI SANTA FE 09/2012 ON
Part Number
HAYMAN REESE
HAYMAN REESE
HAYMAN REESE
HAYMAN REESE
PART No:
HYUNDAI SANTA FE 09/2012 ON
02967RW
02967RW
Installation Time: Approx
Towbar capacity
Max Towing Braked
Max Static Ball Load
PO Box 4050, Dandenong South VIC 3164
Phone 1800 812 017 Email info@haymanreese.com.au
40
Mins
2500 kg
150 kg
Hayman Reese (Cequent)
Advertisement
Related Manuals for Hayman Reese 02967RW
Summary of Contents for Hayman Reese 02967RW
- Page 1 Towbar Installation Instructions Towbar capacity HYUNDAI SANTA FE 09/2012 ON Part Number 02967RW Max Towing Braked 2500 kg Max Static Ball Load 150 kg Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au...
- Page 2 Towbar load rating sticker provided with this product shall be conspicuously located on inside rear end of the driver's door. (See diagram below). Hayman Reese recommends that you check your tow ball to ensure that it complies with the Australian standards AS 4177.2.
- Page 3 HAYMAN HAYMAN REESE HAYMAN HAYMAN REESE REESE REESE PART No: 02967RW HYUNDAI SANTA FE 09/2012 ON INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLES’S GLOVEBOX AFTER INSTALLATION IS COMPLETED DESCRIPTION ITEM NO.
-
Page 4: Installation Instructions
HAYMAN HAYMAN HAYMAN HAYMAN REESE REESE REESE REESE PART No: 02967RW HYUNDAI SANTA FE 09/2012 ON INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLES’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 1. - Page 5 HAYMAN HAYMAN HAYMAN HAYMAN REESE REESE REESE REESE PART No: 02967RW HYUNDAI SANTA FE 09/2012 ON INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLES’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 4.
- Page 6 HAYMAN HAYMAN HAYMAN HAYMAN REESE REESE REESE REESE PART No: 02967RW HYUNDAI SANTA FE 09/2012 ON INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLES’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 7.
- Page 7 HAYMAN HAYMAN REESE HAYMAN HAYMAN REESE REESE REESE PART No: 02967RW HYUNDAI SANTA FE 09/2012 ON INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS PLEASE ENSURE THAT ALL INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT PLACE THESE INSTRUCTIONS IN THE VEHICLES’S GLOVEBOX AFTER INSTALLATION IS COMPLETED 10.
- Page 8 Part No: 100863-WL Tail Harness Length Required: 1200mm Wiring Loom Installation Time: Approx. 45 minutes Issue Date 08-11-12 Part No: 100863-WL Page 1 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 9 (3) in front of the third row of the passenger seats (2). Remove the third row passenger seats (2) from the vehicle. Issue Date 08-11-12 Part No: 100863-WL Page 2 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 10 Remove the door sill trim (2). 10. On the driver’s side, remove the door sill trim (1). Issue Date 08-11-12 Part No: 100863-WL Page 3 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 11 13. On the outside of the vehicle, remove the RHS tail light (1) by first removing the two screws (2). Issue Date 08-11-12 Part No: 100863-WL Page 4 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 12 17. Route the trailer harness (1) towards the RHS of the vehicle tail light. Issue Date 08-11-12 Part No: 100863-WL Page 5 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 13 22. Route the ‘ORANGE’ power wire (1) along the RHS existing vehicle harness (2). Issue Date 08-11-12 Part No: 100863-WL Page 6 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 14 28. Connect the power patch 1-way connector (5) into the add-a-fuse harness mating connector (6). Issue Date 08-11-12 Part No: 100863-WL Page 7 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
- Page 15 36. Place the fitting instructions in the glove box after fitment. Issue Date 08-11-12 Part No: 100863-WL Page 8 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au www.haymanreese.com.au www.haymanreese.com.au...
