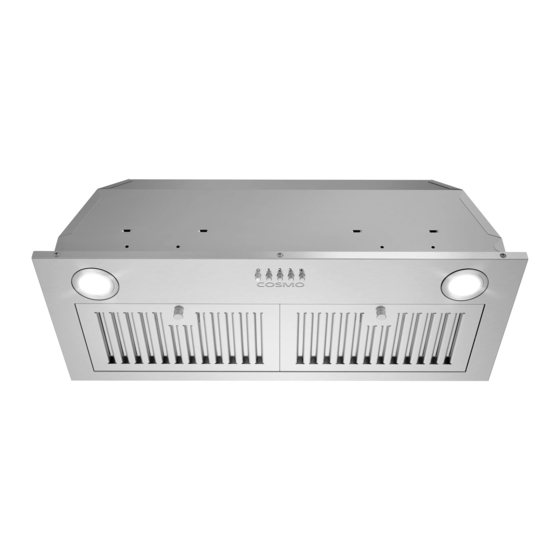

INSERT RANGE HOOD
COS-30IRHP
COS-36IRHP
IRHP RANGE HOOD SERIES
INSTALLATION INSTRUCTIONS
AND USE & CARE GUIDE
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev.22.05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cosmo IRHP Series
Summary of Contents for Cosmo IRHP Series
- Page 1 INSERT RANGE HOOD COS-30IRHP COS-36IRHP IRHP RANGE HOOD SERIES INSTALLATION INSTRUCTIONS AND USE & CARE GUIDE IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 3 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 4: Table Of Contents
TABLE OF CONTENTS RANGE HOOD SAFETY ................... 3 Important Safety Instructions ................. 4 INSTALLATION REQUIREMENTS ..............6 Tools and Parts ......................6 Location Requirements .................... 8 Product Dimensions ....................9 Cabinet Clearances ....................10 Venting Requirements ....................11 Electrical Requirements ................... 15 INSTALLATION INSTRUCTIONS .............. -
Page 5: Range Hood Safety
RANGE HOOD SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Sufficient air is needed for proper WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY combustion and exhausting of TO PERSONS, OBSERVE THE gases through the flue (chimney) FOLLOWING: of fuel burning equipment to prevent backdrafting. - Page 7 IMPORTANT SAFETY INSTRUCTIONS • NEVER PICK UP A FLAMING PAN - WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK. you may be burned. • DO NOT USE WATER, including WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: wet dishcloths or towels - a violent steam explosion will result •...
-
Page 8: Installation Requirements
INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools Needed • Level • Drill with 1/8" (3 mm) and 3/4" (19 mm) drill bits •... - Page 9 Parts Supplied Remove parts from packages. Check that all parts are included. • Range hood main core with LED light bulbs installed • Metal filters • Dampers • Oil tray • 4 x 30 mm wood screws (12) Optional Parts To purchase these or any other accessories, please visit www.cosmoappliances.com or reference the contact information at the end of this manual.
-
Page 10: Location Requirements
Location Requirements IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer’s responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial rating plate is located inside the range hood on the rear wall of the range hood. -
Page 11: Product Dimensions
Product Dimensions COS-30IRHP 5.9 in (15.0 cm) 8.1 in (20.5 cm) 20.3 in (51.6 cm) 1.1 in 0.6 in 11.4 in (2.8 cm) (1.5 cm) (28.9 cm) 10.2 in (26.0 cm) 2.4 in (6.2 cm) 11.8 in (30.0 cm) 17.7 in 5.5 in (45.0 cm) (14.0 cm) -
Page 12: Cabinet Clearances
Cabinet Clearances Given dimensions are minimum clearances. Insert Range Hood 12 in (30.5cm) Overhead Cabinet 12 in Height (30.5 cm) (Ductless) Overhead Cabinet Depth 25.6 in (65.0 cm) 18 in (45.7 cm) 36 in (91.4 cm) Model 30" Model: COS-30IRHP 27.8"... -
Page 13: Venting Requirements
Venting Requirements (ducted installations only) • Duct system must terminate to the outdoors, except for ductless (recirculating) installations. • Do not terminate the duct system in an attic or other enclosed area. • Do not use 4" (10.2 cm) laundry-type wall cap. •... - Page 14 Venting Methods This range hood is factory set for venting through the roof or through the wall. The duct system needed for installation is not included. A 6" (15.2 cm) round duct system is recommended. Roof Venting Wall Venting A. 6" (15.2 cm) round duct A.
- Page 15 Calculating Duct System Length The recommended duct system is 6" (15.2 cm) round duct with a maximum length of 35 ft (10.7 m). For the best performance, use no more than three 90° elbows. To calculate the length of the system you need, add the equivalent feet (meters) for each duct piece used in the system.
- Page 16 Ductless (Recirculating) Installations Through the Soffit/Cabinet If it is not possible to vent cooking fumes and vapors to the outside, the range hood can be used in the ductless (recirculating) version, using a charcoal filter. To order, see "Optional Parts" in the "Tools and Parts" section. Damper installation is not required.
-
Page 17: Electrical Requirements
Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. -
Page 18: Installation Instructions
INSTALLATION INSTRUCTIONS Prepare Location • It is recommended that the duct system be installed before the range hood is installed. • Before making cutouts, make sure there is proper clearance within the ceiling or wall for duct fittings. 1. Disconnect power. 2. - Page 19 Range Hood Cabinet Cutout 1. Determine and clearly mark the centerlines on the underside of the cabinet. 2. Measure and mark lines for the cutout area as shown. 10.83 in (27.5 cm) 30" Model: 26.75 in (67.9 cm) 36" Model: 34.45 in (87.5 cm) 3.
- Page 20 Ductless (Recirculating) Installation Through the Soffit/Cabinet The range hood can be vented inside through the top of the cabinet. Measure and mark a round duct opening in the cabinet ceiling or in the soffit above the duct opening of the range hood. Use a saber saw or keyhole saw to cut a round opening for the soffit/cabinet vent.
-
Page 21: Install Range Hood
Install Range Hood WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury. 1. Remove the blue/clear protective films and any other remaining packaging materials from the range hood and the metal filters. -
Page 22: Complete Installation
Complete Installation WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Plug into a grounded 3-prong outlet. Failure to do so can result in death, fire, or electrical shock Connect the Duct System Ducted Installations 1. -
Page 23: Range Hood Use
RANGE HOOD USE The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. - Page 24 Metal Grease Filter The metal filter should be washed frequently. Place metal filter in dishwasher or hot detergent solution to clean. Let metal filter dry thoroughly before replacing it. 1. Turn off fan and lights. Check that the LED lights are cool. 2.
-
Page 25: Replacing The Led Light
Replacing the LED Light Turn off the range hood and allow the LED Lights to cool. Replace the LED lights using tissue or wearing cotton gloves to handle them. 1. Disconnect power. 2. Remove the metal filters. See "Metal Grease Filter" in the "RANGE HOOD CARE"... -
Page 26: Limited Warranty
LIMITED WARRANTY WARRANTY AND SERVICE TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER CUSTOMER SUPPORT TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT: WWW.COSMOAPPLIANCES.COM/CHAT SCAN TO CHAT... - Page 27 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
- Page 28 MEMO...
- Page 30 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
