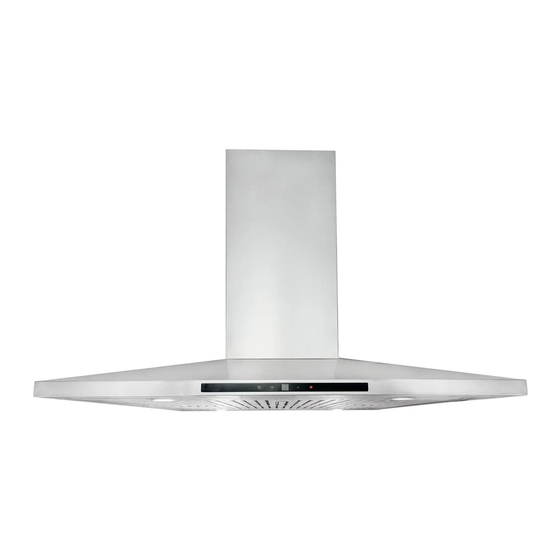

Fig.25 Fig.26 GENERAL Carefully read the following important information regarding installation, safety, and maintenance. Keep this manual accessible for further consultations. This appliance has been designed to be ducted (air exhaust to the outside – Fig.1B), filtering version (air re-circulation – Fig.1A) or with an external motor (Fig.1C).
voltage and power corresponding to the network and the socket is suitable. When in doubt, ask a qualified electrician. 2. WARNING ! Electrical appliances can be a dangerous hazard. A) Do not check the status of the filters while the cooker hood is operating. B) Do not touch bulbs or adjacent areas, during or immediately after prolonged use of the lighting installation.
Page 8
The appliance has been manufactured as a class I appliance, therefore earth cable is necessary. The connection to the mains is carried out as follows: IEC227 North America L=live Brown Black N=neutral Blue White E=earth Green/Yellow Green If not provided, connect a plug for the electrical load indicated on the description label.
Page 9
- Please make sure that the arrow is positioned on the same side as the appliance controls. Make 4, Ø8 holes in the ceiling and drive in 3 screws without completely tightening them(Fig2). Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall).
- If the cooker hood is supplied with a lower chimney piece that must be fixed to the hood body with screws, remove the anti-grease filters from the hood by releasing the filter latches (Fig.12). Then screw the lower chimney piece pipe to the inside of the hood, using screws P (Fig.13).
Page 11
of every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking, and the regularity of cleaning the grease filters. (Fig.14) To remove the charcoal filters, remove the baffle filters, reach hand inside the unit to grasp one carbon filter at a time and rotate them toward the front of the appliance.
Page 12
n FUNCTION KEYS: (Fig.18) A == OFF B == SPEED 1/―-‖Control C == SPEED 2/―+‖Control D == SPEED 4 E == LIGHT By pressing key B, C, or D, individually, the speed for each key will be the same as above table. At the same time, each corresponding button's light will flash.
Page 13
the function key buttons. To stop the speed function press key B. If Speed 3 is required, press key D and adjust ―+‖. At Speed 3, both key C and key D indication lights will flash on each of the function key button. To turn on the light press key E.
Page 14
will flash, push key A to switch to set hours and minutes, and then push C or E to set the correct time. The Clock’s system is 24 hours. When the motor is on, push the key B, the light is on, at the same time it shows "...
Page 15
If the motor and light or only motor are on, pushing A turn on the automatic timer and it will count down 15 minutes before turning off the motor and light/ motor. Push B or D to adjust the time, and push A again to stop the timer.
Troubleshooting Problems Possible reasons Solutions Hood doesn’t work No electric supply Check the plug is connected Check the main switch is turned on Poor airflow Aluminum grease Clean the filters and replace when filters clogged Charcoal filters Replace the charcoal filters clogged Motor running but no Butterfly valve jammed Contact technician...
Page 17
Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of its materials.
