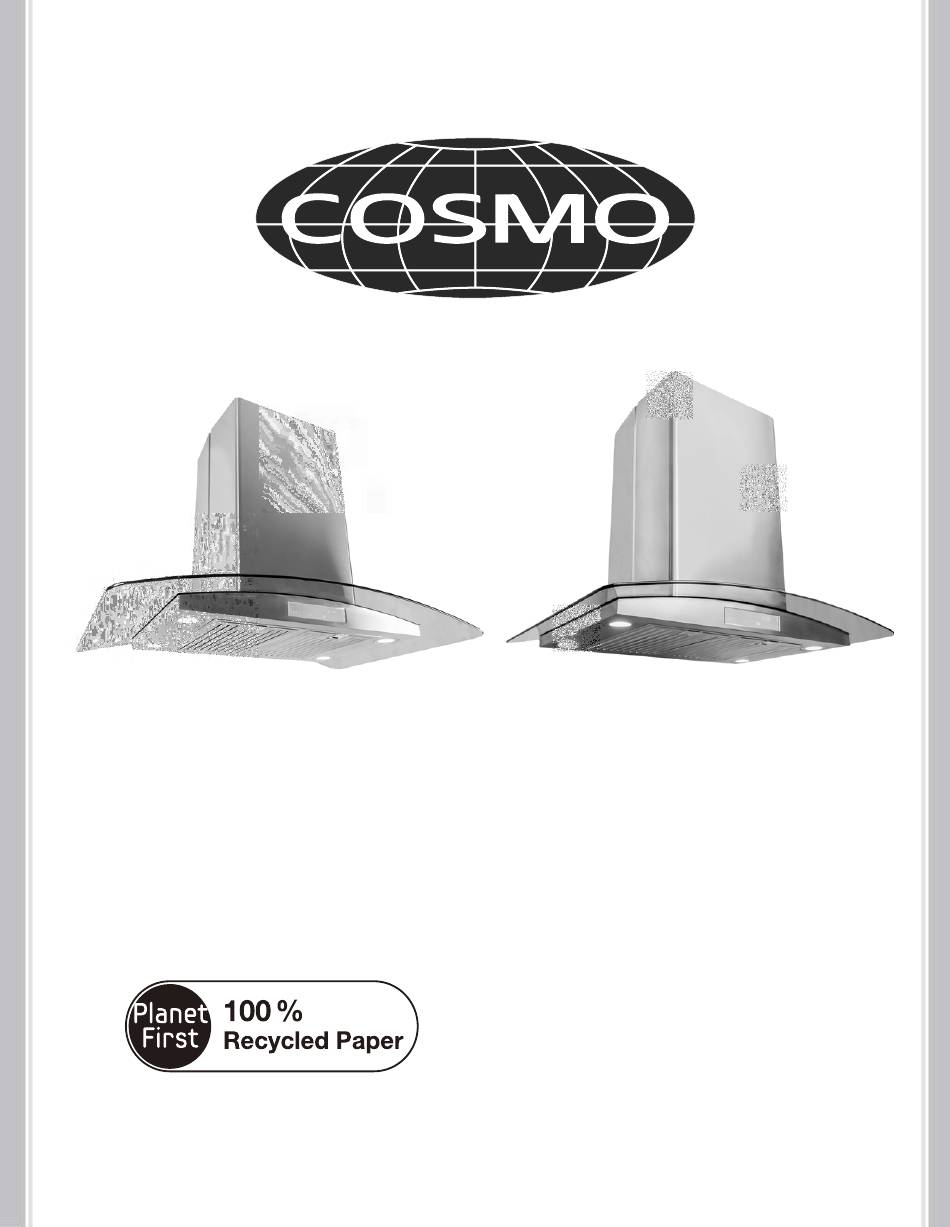

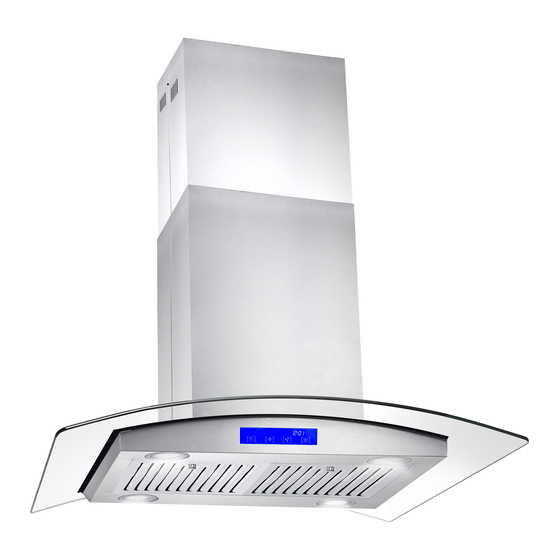

- Page 1 ISLAND MOUNT RANGE HOOD This manual is made with 100 % recycled paper. Electronic version of this manual is available at: www.cosmoappliances.com...
- Page 2 Thank You Thank you for your purchase. We know that you have many brands and products to choose from and we are honored to know that you have decided to take one of our products into your home and hope that you enjoy it.
- Page 3 STAINLESS STEEL BAFFLE FILTERS About Your New Filters Stainless Steel Baffle Filters do not need linings or mesh inside of the filters and are completely constructed out of stainless steel. The stainless steel construction allows them to be used again after being cleaned or going through the dishwasher. How do Baffle Filters Work? They function by forcing the grease filled air to quickly and continuously change direction as it passes through the filter.
-
Page 4: Table Of Contents
TABLE OF CONTENTS PARTS DIAGRAM INSTALLATION REQUIREMENTS INSTALLATION PROCEDURES OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING WARRANTY AND SERVICE... -
Page 5: Parts Diagram
PARTS DIAGRAM 668ICS 750 / 900 MAIN PARTS Ceiling Mount Upper Support Frame Lower Support Frame Inner Chimney Outer Chimney Blower Assembly Tempered Glass Grease Filters... -
Page 6: Installation Requirements
INSTALLATION REQUIREMENTS 1. Do not install the range hood where there are many open doors or windows.This will cause reduced performance. (Fig. 1) 2. Install the range hood right above the cooktop. The optimal distance between the cooktop and lower edge of the range hood is 24”... -
Page 7: Installation Procedures
INSTALLATION PROCEDURES CAUTION: HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES WHENEVER IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Step 1: This Island Range Hood has an adjustable height. Measure from the ceiling to a height of 24”... - Page 8 Step 4: Using the Ceiling Mount as a guide drill 4 holes (8mm or 5/16 drill bit) into the ceiling area Anchor Screws Anchors where you will be mounting your range hood. Fill the holes with the provided anchors. Screw the Ceiling Mount securely into place.
- Page 9 Step 9: Inner Chimney Back Ceiling Mount Take the back piece of the Inner Chimney, align and securely screw into the sides of the Ceiling Inner Chimney Front mount. Now take the front piece of the Inner Chimney, align and securely screw into the side of the Ceiling mount.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Soft Touch Controls 668ICS 750 / 900 A. Timer Button When unit is turned on press to increase timer minutes up to 59 minutes. B. Light Button. Press to turn lights on / off C. Fan Speed Button When unit is turned on press to change fan speed. -
Page 11: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INSIDE OF THE UNIT WHILE ITS OPERATING THE BEST PERFORMANCE CLEAN YOUR RANGE HOOD REGULARLY CLEANING 1. Use only mild soap or cleaning solutions to clean the range hoods outer surface. Dry surfaces using a soft cloth. 2. -
Page 12: Troubleshooting
TROUBLESHOOTING CAUTION: ALWAYS UNPLUG UNIT FROM POWER BEFORE SERVICING PROBLEM SOLUTION TOOLS My range hood is A. Check inside the range hood Phillips Screwdriver noisy. for any loose debris and remove. A. The range hood and cooktop are My range hood has Phillips Screwdriver too far away from each other. -
Page 13: Warranty And Service
B. The maximum liability of the warranty for product replacement or repair shall not exceed the original purchase price of the product. C. Cosmo reserves the right to repair or replace the covered product with a comparable feature model of like kind.
