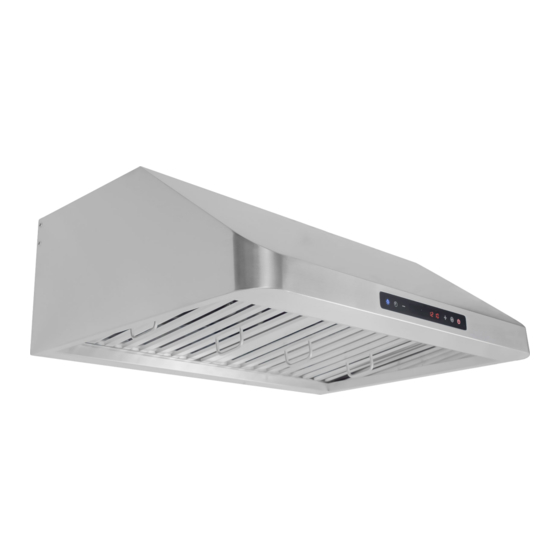

Under cabinet range hood

Advertisement

UNDER CABINET RANGE HOOD
This manual is made with 100 % recycled paper.
Electronic version of this manual is available at: www.cosmoappliances.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the COS-QS 75 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cosmo COS-QS 75

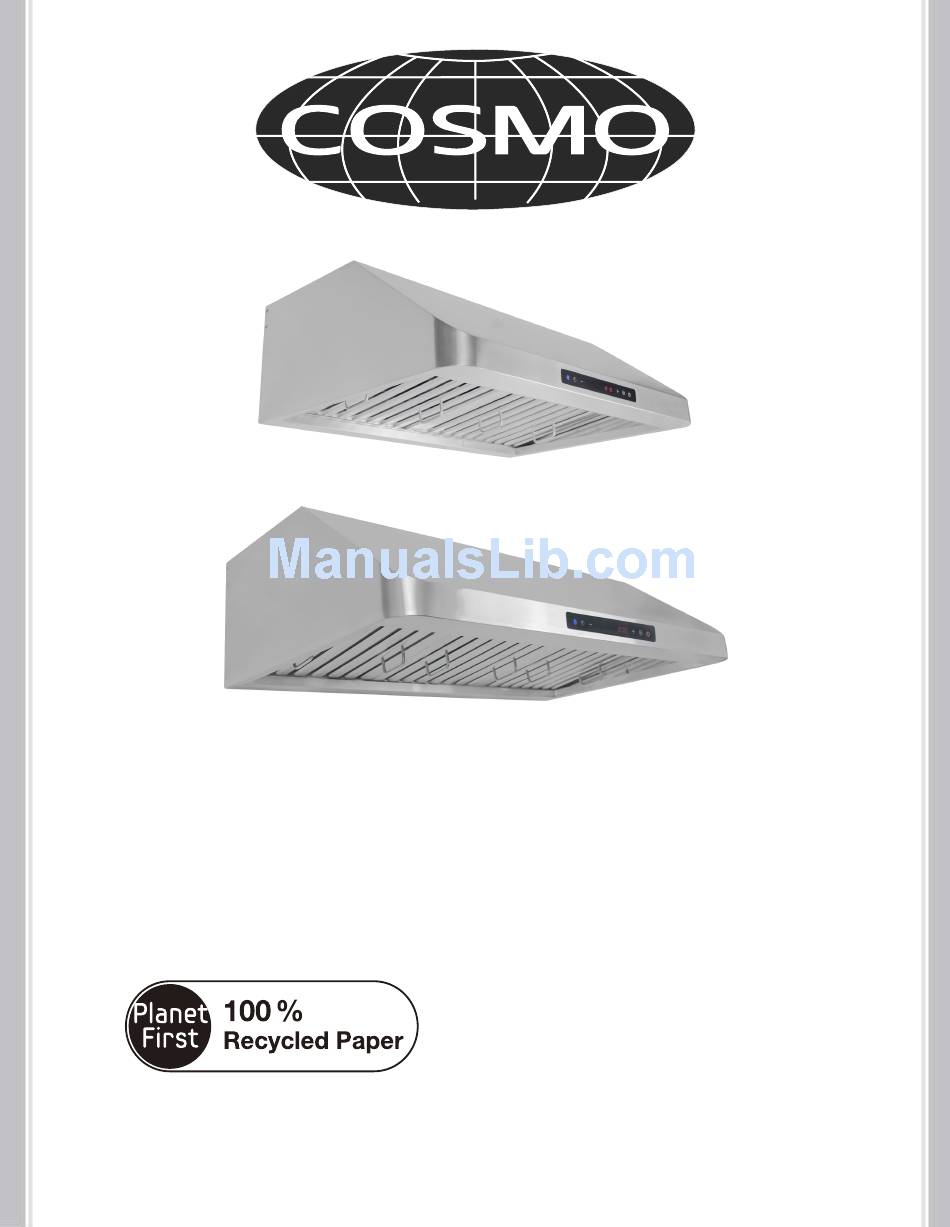

  • Page 1 UNDER CABINET RANGE HOOD This manual is made with 100 % recycled paper. Electronic version of this manual is available at: www.cosmoappliances.com...
  • Page 2 Thank You Thank you for your purchase. We know that you have many brands and products to choose from and we are honored to know that you have decided to take one of our products into your home and hope that you enjoy it.
  • Page 3 STAINLESS STEEL BAFFLE FILTERS About Your New Filters Stainless Steel Baffle Filters do not need linings or mesh inside of the filters and are completely constructed out of stainless steel. The stainless steel construction allows them to be used again after being cleaned or going through the dishwasher. How do Baffle Filters Work? They function by forcing the grease filled air to quickly and continuously change direction as it passes through the filter.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS PARTS DIAGRAM INSTALLATION REQUIREMENTS INSTALLATION PROCEDURES OPERATING INSTRUCTIONS MAINTENANCE TROUBLESHOOTING WARRANTY AND SERVICE...
  • Page 5: Parts Diagram

    PARTS DIAGRAM COS-QS 75 / 90 MAIN PARTS Mount Damper Mount Drip Tray Baffle Filters Ductwork is NOT included and needs to be purchased separately (8" Diameter Round).
  • Page 6: Installation Requirements

    INSTALLATION REQUIREMENTS 1. Do not install the range hood where there are many open doors or windows.This will cause reduced performance. (Fig. 1) 2. Install the range hood right above the cooktop. The optimal distance between the cooktop and lower edge of the range hood is 24”...
  • Page 7: Installation Procedures

    INSTALLATION PROCEDURES CAUTION: HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES WHENEVER IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. Step 1: A height of 24” to 36” is recommended for optimal performance. Rear Mounted Installation Anchor A.
  • Page 8 Duct Step 2: Damper Connect the duct into the damper. Step 3: Connect installed duct to existing ductwork. For best performance avoid steep angles in duct work. Step 4: A. Install the Drip Tray inside the bottom rear of the range hood. B.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Soft Touch Controls COS-QS 75 / 90 A. Light. Press to turn light on / off. B. Timer Button - When range hood is on touch once. The timer is default at 3 minutes. Use plus or minus to increase or decrease time upto 60 minutes.
  • Page 10: Maintenance

    MAINTENANCE CAUTION: NEVER PUT YOUR HAND INSIDE OF THE UNIT WHILE ITS OPERATING THE BEST PERFORMANCE CLEAN YOUR RANGE HOOD REGULARLY CLEANING 1. Use only mild soap or cleaning solutions to clean the range hoods outer surface. Dry surfaces using a soft cloth. 2.
  • Page 11: Troubleshooting

    TROUBLESHOOTING CAUTION: ALWAYS UNPLUG UNIT FROM POWER BEFORE SERVICING PROBLEM SOLUTION TOOLS My range hood is A. Check inside the range hood Phillips Screwdriver noisy. for any loose debris and remove. A. The range hood and cooktop are My range hood has Phillips Screwdriver too far away from each other.
  • Page 12: Warranty And Service

    B. The maximum liability of the warranty for product replacement or repair shall not exceed the original purchase price of the product. C. Cosmo reserves the right to repair or replace the covered product with a comparable feature model of like kind.

This manual is also suitable for:

Cos-qs 90
