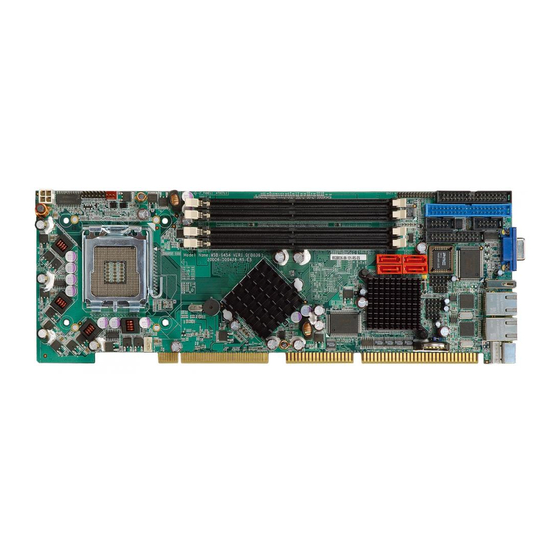

PICMG 1.0 LGA775 Intel
Quick Installation Guide
Package Contents
WSB-9454 package includes the following items:
1 x WSB-9454 single board computer
1 x mini jumper pack
1 x ATA 66/100 flat cable
1 x Dual RS232 cable
1 x SATA Power cable
2 x SATA cable
1 x KB/MS Y cable
1 x USB cable
1 x Utility CD
1 x QIG (quick installation guide)
©2006 Copyright by IEI Technology corp.
All manuals and user guides at all-guides.com
®
Pentium
Daul PCIE GbE, SATAII and Audio
WSB-9454
Version 1.0
Nov. 20, 2006
All rights reserved.
®
D CPU wih VGA / DVI,
1
Advertisement
Table of Contents
Related Manuals for IEI Technology WSB-9454
Summary of Contents for IEI Technology WSB-9454
- Page 1 WSB-9454 Quick Installation Guide Version 1.0 Nov. 20, 2006 Package Contents WSB-9454 package includes the following items: 1 x WSB-9454 single board computer 1 x mini jumper pack 1 x ATA 66/100 flat cable 1 x Dual RS232 cable 1 x SATA Power cable...
- Page 2 All manuals and user guides at all-guides.com Specifications ® ® ® CPU: LGA 775 Intel Pentium D/4/Celeron D with 533/800/1066 MHz FSB ® System Chipset: Intel 945G + ICH7 BIOS: AMI Flash BIOS System Memory 4x 240-pin Daul channel DDRII 400/533/667 MHz up to 4GB Ethernet: Daul Broadcom BCM5787 PCI express GbE I/O Interface 2 x RS232...
- Page 3 All manuals and user guides at all-guides.com Ordering Information WSB-9454-R10 ® ® PICMG1,0 Intel Pentium D 1066MHz processor, VGA, Daul PCIE GbE, and SATAII WSB-9454DVI-R10 ® ® PICMG1,0 Intel Pentium D 1066MHz processor, VGA/DVI, Daul PCIE GbE, and SATAII AC-KIT08R-R10 5.1 Channel Audio Kit with Realtek ALC655...
- Page 4 All manuals and user guides at all-guides.com FDD1: FDC Connector PIN DESCRIPTION DESCRIPTION REDUCE WRITE INDEX# MOTOR ENABLE A# DRIVE SELECT B# DRIVE SELECT A# MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0# WRITE PROTECT# READ DATA# SIDE 1 SELECT# DISK CHANGE# COM1,COM2 : 10-pin external connector...
- Page 5 All manuals and user guides at all-guides.com CPU12V1 : CPU POWER Connector ATX-12V1 (CPU) DESCRIPTION DESCRIPTION +12V +12V DIO1 : Digital Input / Output Connector DESCRIPTION DESCRIPTION Ground Output 0 Output 1 Output 2 Output 3 Input 0 Input 1 Input 2 Input 3 LPT1 : Parallel Port Connector...
- Page 6 All manuals and user guides at all-guides.com J_AUDIO1: AC’97 Connector PIN DESCRIPTION DESCRIPTION SYNC BITCLK SDOUT PCBEEP SDIN RST# +12V KB1: 5-pin Mini-DIN Keyboard Connector DESCRIPTION Keyboard Clock Keyboard Data DVI1 : DVI Connector DVI Connector PIN DESCRIPTION PIN DESCRIPTION Data 2- Data 2+ Hot Plug Detect.
- Page 7 All manuals and user guides at all-guides.com PIDE1: IDE Interface Connector DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15...
- Page 8 All manuals and user guides at all-guides.com Board Layout: Jumper and Connector Locations...
