HelixNet Partyline
Quick Start Guide
The following quick start guide provides basic installation instructions for your HelixNet Partyline system. It
also provides a quick reference to possible topologies and cable capacitance.
For in-depth information about HelixNet Partyline, see the HelixNet Partyline User Guide.
Tip:

1.1 Before installing

To ensure that HelixNet Partyline delivers the desired performance, review the cable specifications for the
venue or application space before installing. To safely interface two-wire and four-wire audio source with
HelixNet Partyline, use the optional two-wire (HLI-2W2) and four-wire (HLI-4W2) interface modules for the
HMS-4X Main Station.
Warning:
HelixNet Partyline operates at a different voltage than two-wire partyline
systems (such as Clear-Com Encore or PL-Pro). Do not connect any analog two-wire
partyline equipment to the Main Station powerlines as severe damage may occur.

1.2 Installing HelixNet Partyline

To install HelixNet Partyline:

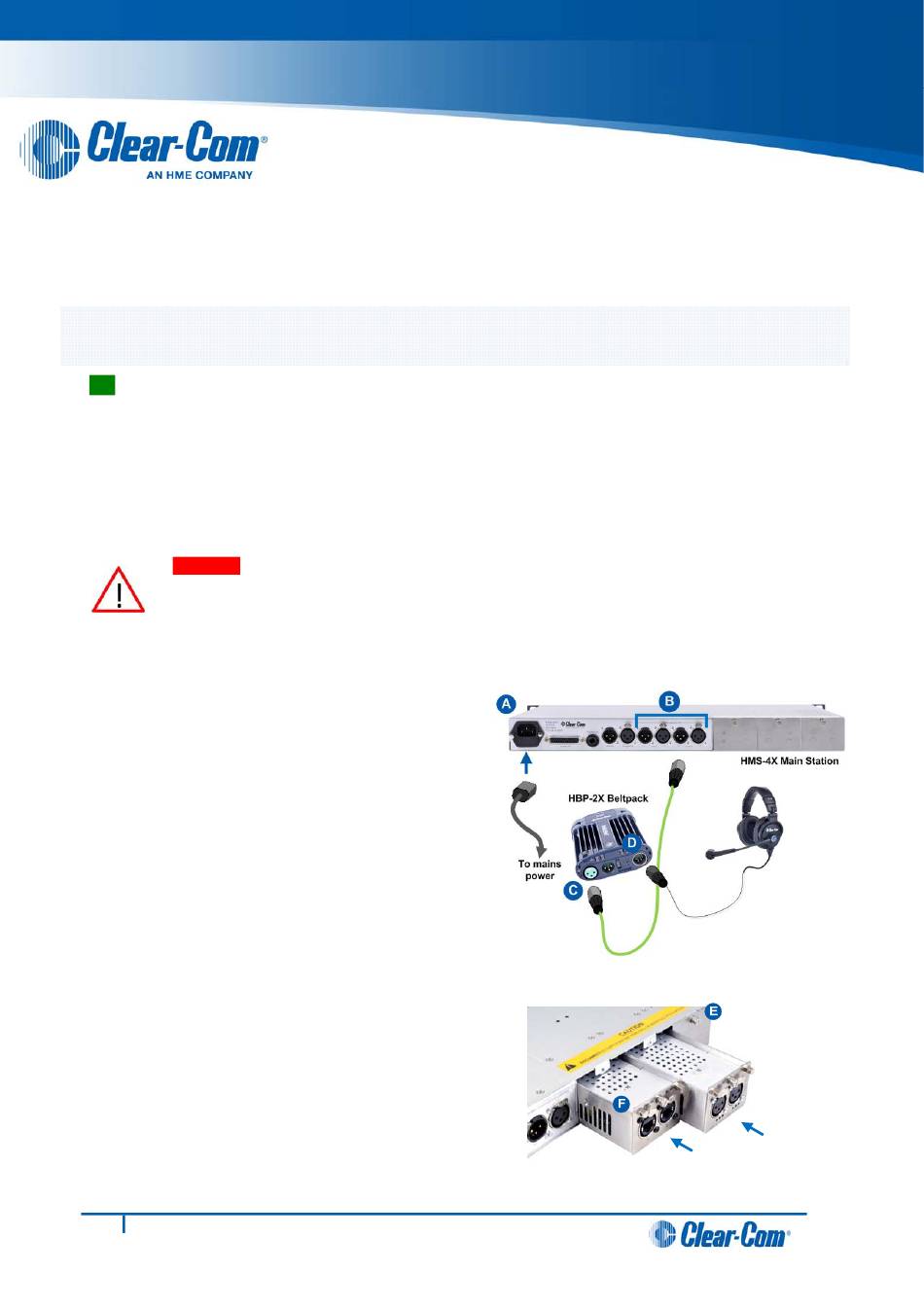

1. Connect the supplied power cord to the
HMS-4X Main Station power connector (A).
2. Connect the power cord to mains power.
3. Connect the cable from a powerline port
to the XLR-3 port on the HBP-2X Beltpack (C).
4. Connect the headset to the HBP-2X Beltpack (D).

1.3 Installing Interface Modules

To install either a two-wire (HLI-2W2) or four-wire (HLI-4W2) interface module to the HMS-4X Main Station:
1. Disconnect the HMS-4X Main Station
from mains power.
2. Remove the blanking plate (E) and insert the
interface module (F) into the module bay.
3. Reconnect the HMS-4X Main Station
to mains power.
To configure the interface module, navigate to Menu > Module Settings.
1
PN: 810589Z Rev: A 04/03/12
