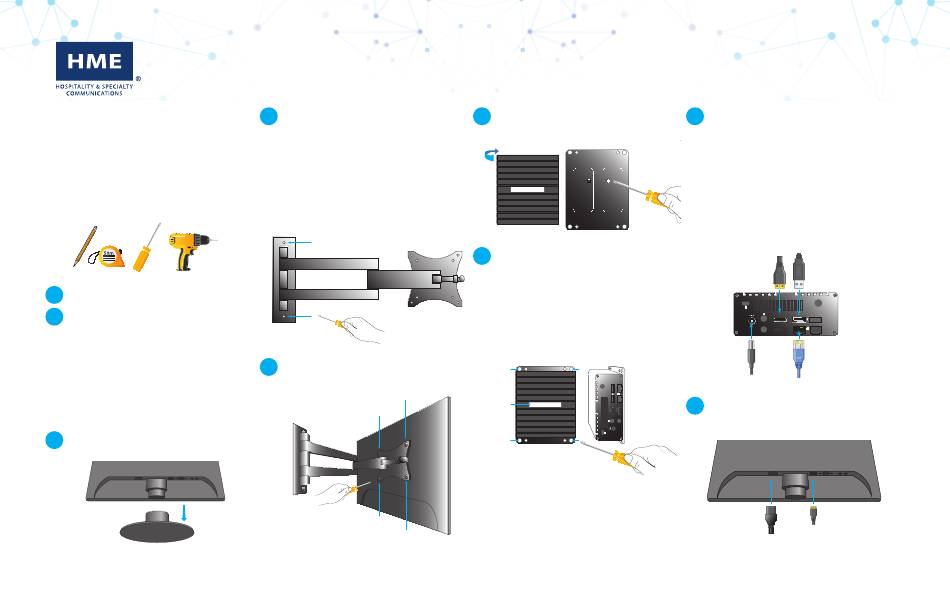

HME ZOOM Nitro Quick Reference Installation Manual

I :
nstallatIon
Tools, Equipment, & Material Required:
• General hand tools, screwdrivers, etc.
• Tape Measure, pencil/marker
• Drill with drill bit set
• Fish sticks/tape for routing cables (if necessary)
• Cable ties for bundling cables and strain relief
• Belden 8723 audio cable or equivalent
• Protective equipment such as safety glasses.
Fig. 1.1
1
1. Check the packing list! Verify you have received
everything listed.
2
2. Survey the premises with store manager to de-
termine the optimal mounting location for the
ZOOM Nitro. Take into consideration:
• User accessibility
• Appropriate space for mounting all system
components
• Proximity to a power outlet
• Cable lengths required between connections
• Clearance from obstructions like electrical
and plumbing obstructions when drilling
• Mount the system high enough on a wall to
be out of the way but still visible/accessible.
3
3. Remove (if attached) and discard the monitor
base stand (see Fig1.2).
Fig. 1.2
© 2022 HM Electronics, Inc. All rights reserved.
ZOOM Nitro® QUICK REFERENCE INSTALLATION GUIDE
4
4. Mount the monitor bracket to the wall. To do this,
find an appropriate location (preferably along a
stud if wall construction is a wood stud frame).
• Hold the wallplate level against the wall,
and mark the wall through the two mounting
holes.
• Drill holes at the marked locations.
• Mount the bracket to the wall using the nec-
essary hardware (screws and wall anchors or
toggle bolts if necessary); see Fig. 1.3.
BRACKET attached to
WALL with two screws
Fig. 1.3
5
5. Attach the monitor to the faceplate with the pro-
vided hardware (see Fig. 1.4).
3 2
DCIN
BRACKET HDMI 1
HDMI 2
attached to
MONITOR 4 1
with four screws
Attach wallplate at
CU 60 rear
FOR SALES & SERVICE CALL:
1-800-848 4468
Fig. 1.4
COM
Outer
3 2
Mounting
Holes (x4)
DCIN
HDMI 1
CU50 Sales
HDMI 2
& Service
Sticker
6 4 1
6. Attach the CU to the CU wallplate using the pro-
vided hardware (see Fig. 1.5).
Attach wallplate at
CU 60 rear
FOR SALES & SERVICE CALL:
1-800-848 4468
Fig. 1.5
7 7. Mount the CU on the wall.
COM
• Hold the plated CU against the wall, and
mark the wall through the four outside
mounting holes.
• Drill holes at the marked locations.
• Mount the plated CU to the wall using the
necessary hardware (screws and wall anchors
if necessary); see Fig. 1.6
Note: The HME Sales and Service sticker should
be right side up.
Outer
Mounting
Holes (x4)
CU60 Sales
FOR SALES & SERVICE CALL:
& Service
1-800-848 4468
Sticker
Fig. 1.6
Lorem ipsum
FOR SALES & SERVICE CALL:
1-800-848 4468
8
8. Connect the cables (reference Fig. 1.7 for each
step):
1. Connect the network cable to the network
port (verify it is also connected at the network
router end).
2. Connect a mouse (and keyboard if desired)
to the USB port (see all connections in the
following diagram).
3. Connect the HDMI cable for the primary moni-
tor to the port labeled HDMI 1.
4. Connect the power adapter.
Note: HDMI 2 is for the Drive-Thru Leaderboard
display (if desired). Remove port cap to access.
3 2
DCIN
HDMI 1
HDMI 2
4 1
Fig. 1.7
Attach wallplate at
CU 60 rear
9
9. Connect the power cable and the HDMI cable to
MONITOR REAR
the monitor (see Fig. 1.8). Connect the other end
of the power cable to an electrical outlet.
FOR SALES & SERVICE CALL:
1-800-848 4468
POWER CABLE HDMI CABLE
Fig. 1.8
COM
PUB-00066
Rev B 05/05/22
Outer
Mounting
Holes (x4)
CU60 Sales
& Service
Sticker
