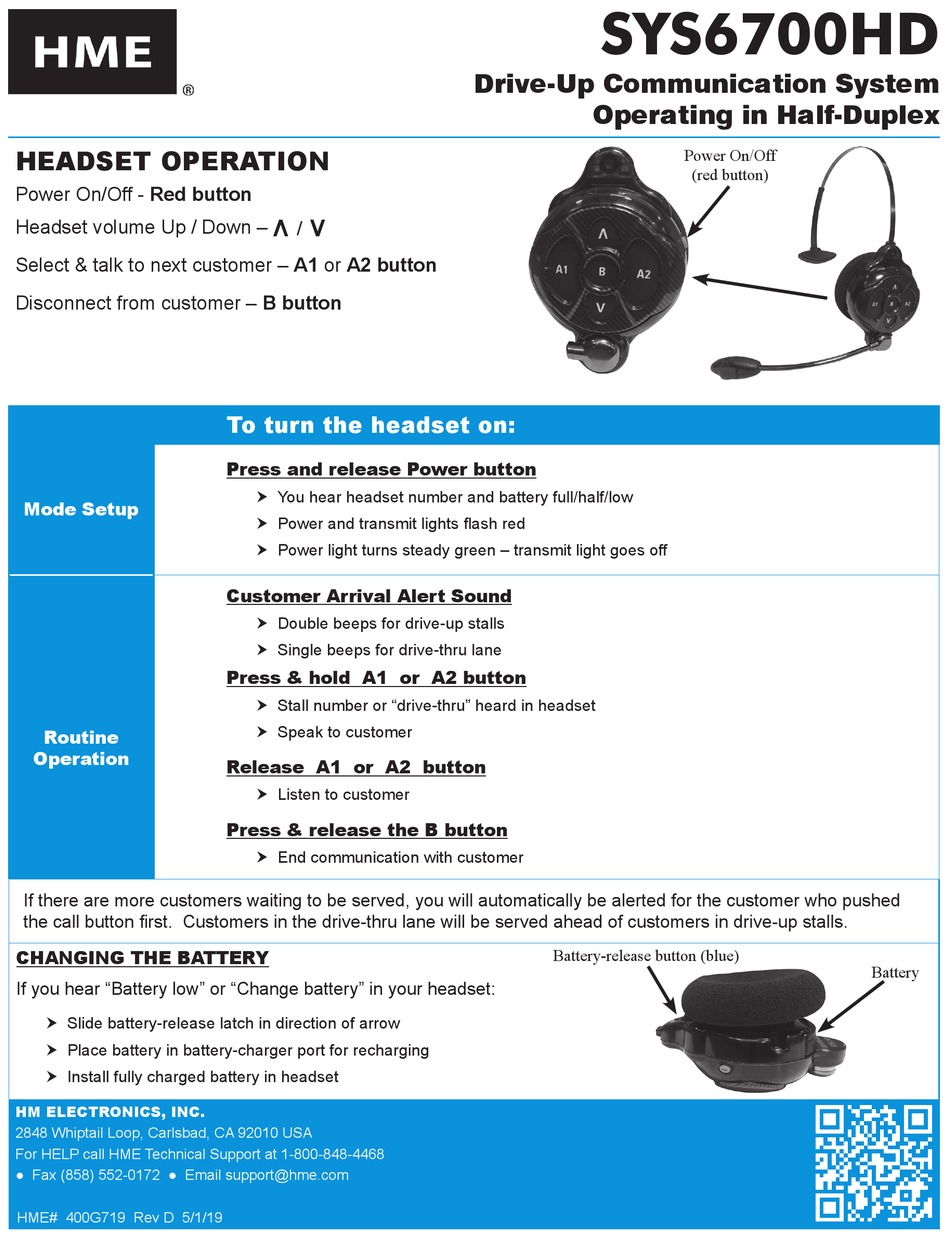

HME SYS6700HD Manual

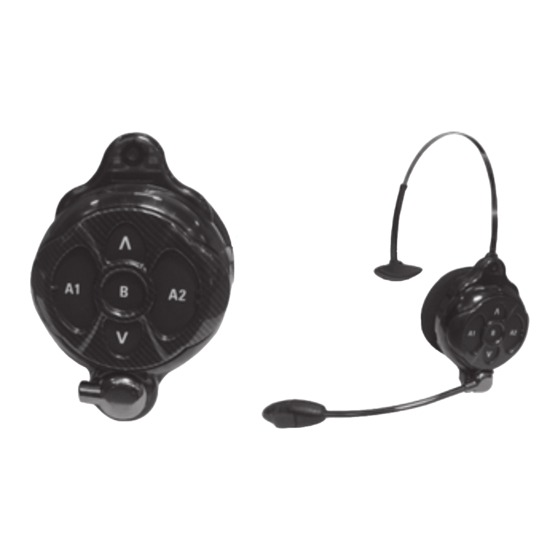

HEADSET OPERATION

Power On/Off - Red button
Headset volume Up / Down –
Select & talk to next customer – A1 or A2 button
Disconnect from customer – B button
Mode Setup
Routine
Operation
If there are more customers waiting to be served, you will automatically be alerted for the customer who pushed
the call button first. Customers in the drive-thru lane will be served ahead of customers in drive-up stalls.

CHANGING THE BATTERY

If you hear "Battery low" or "Change battery" in your headset:
h Slide battery-release latch in direction of arrow
h Place battery in battery-charger port for recharging
h Install fully charged battery in headset
HM ELECTRONICS, INC.
2848 Whiptail Loop, Carlsbad, CA 92010 USA
For HELP call HME Technical Support at 1-800-848-4468
● Fax (858) 552-0172 ● Email support@hme.com
HME# 400G719 Rev D 5/1/19
˄ ˅
/
To turn the headset on:
Press and release Power button
h You hear headset number and battery full/half/low
h Power and transmit lights flash red
h Power light turns steady green – transmit light goes off
Customer Arrival Alert Sound
h Double beeps for drive-up stalls
h Single beeps for drive-thru lane
Press & hold A1 or A2 button
h Stall number or "drive-thru" heard in headset
h Speak to customer
Release A1 or A2 button
h Listen to customer
Press & release the B button
h End communication with customer
SYS6700HD
Drive-Up Communication System
Operating in Half-Duplex
Battery-release button (blue)
Power On/Off
(red button)
Battery
