All manuals and user guides at all-guides.com O P E R A T I N G M A N U A L FIBARO SINGLE/DOUBLE SWITCH 2 FGS-2x3 CONTENTS v1.0 #1: Description and features #7: Associations #2: Supported loads #8: Z-Wave range test...
Page 2
All manuals and user guides at all-guides.com...
Page 3
Danger of electrocution! FIBARO Switch 2 is designed to operate in electrical home in- stallation. Faulty connection or use may result in fire or electric shock. All works on the device may be performed only by a qualified and licensed electrician.

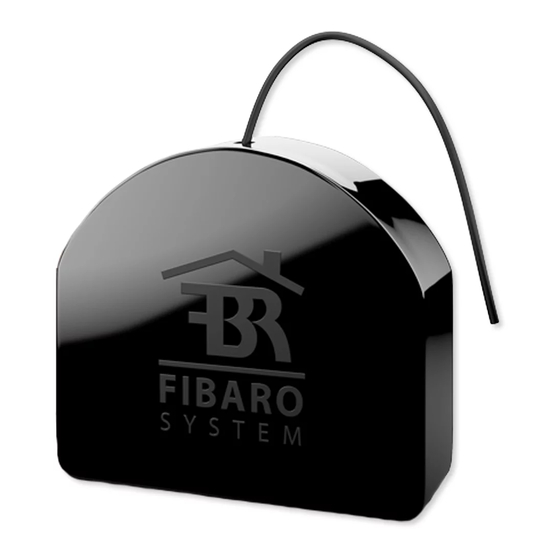

All manuals and user guides at all-guides.com #1: Description and features FIBARO Switch 2 is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. FIBARO Switch 2 allows to control connected devices either...
All manuals and user guides at all-guides.com #2: Supported loads The Switch 2 may operate under the following loads: • Conventional incandescent light sources, • Halogen light sources, • Electrical appliances which power consumption does not exceed the limit for a specified device. Applied load and the Switch 2 itself may be damaged if the applied load is inconsistent with the technical specifi- cations!
All manuals and user guides at all-guides.com #3: Installation Connecting the Switch 2 in a manner inconsistent with this manual may cause risk to health, life or material damage. When connecting the Switch 2 act in accordance with the following rules: •...
Page 7
All manuals and user guides at all-guides.com Installation of the Switch 2: NOTE 1. Switch off the mains voltage (disable the fuse). Switch connected to 2. Open the wall switch box. the S1 terminal is a master switch. It acti- 3.
All manuals and user guides at all-guides.com #4: Adding/removing the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add NOTE the device to existing Z-Wave network. In case of problems To add the device to the Z-Wave network: with adding/remov- ing using S1 switch,...
All manuals and user guides at all-guides.com #5: Operating the device Controlling Switch using momentary switch NOTE and parameter 20 set to 0: Momentary switch 1x click: After releasing • Change the state of the connected load to the opposite one switch a spring auto- (S1 switches 1st channel, S2 switches 2nd channel), matically pushes back...
Page 10
All manuals and user guides at all-guides.com Controlling the Switch 2 using the B-button: The Switch 2 is equipped with a B-button, which allows to use the menu and perform the following actions: 1x click: • Cancel alarm mode (flashing alarm). •...
Page 11
All manuals and user guides at all-guides.com Controlling the Switch 2 using FIBARO Home Center controller: After adding the Switch 2 to the network, it will be represent- ed in the Home Center interface by two similar icons, one for each channel.
All manuals and user guides at all-guides.com #6: Power and energy consumption The Switch 2 allows for the active power and energy consump- CAUTION tion monitoring. Data is sent to the main Z-Wave controller, e.g. The Switch 2 require Home Center. the power consump- Measuring is carried out by the most advanced micro-controller tech- tion of connected load...
All manuals and user guides at all-guides.com #7: Associations Association (linking devices) - direct control of other devices within NOTE the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave controller). Association ensures direct...
All manuals and user guides at all-guides.com #8: Z-Wave range test The Switch 2 has a built in Z-Wave network main controller’s CAUTION range tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler.
All manuals and user guides at all-guides.com #9: Additional functionality Overheat and overcurrent protection: The Switch 2 after detecting overheat or overcurrent will: • switch off its relay/relays, • send information about switching off the relay/relays to the controller, • send notification Report to the controller (Heat Alarm for over- heat, Power Management for overcurrent).
#10: Advanced parameters The Switch 2 allows to customize its operation to user’s needs. The settings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure the Switch 2 (using the Home Center controller): 1.
Page 17
All manuals and user guides at all-guides.com 12. First channel - time parameter for delay/auto ON/OFF modes This parameter allows to set time parameter used in timed modes. Available settings: 0 (0.1s), 1-32000 (1-32000s, 1s step) - time parameter 50 (50s) 2 [bytes] Default setting: Parameter size:...
Page 18
All manuals and user guides at all-guides.com 18. Second channel - pulse time for flashing mode (only FGS-223) This parameter allows to set time of switching to opposite state in flashing mode. Available settings: 1-32000 (0.1-3200.0s, 0.1s step) - time param- eter Default setting: 5 (0.5s)
Page 19
All manuals and user guides at all-guides.com 29. S2 switch - scenes sent NOTE This parameter determines which actions result in sending scene IDs Parameter 29 values assigned to them. may be combined, e.g. 1+2=3 means that Available settings: 1 - Key pressed 1 time scenes for single and 2 - Key pressed 2 times double click are sent.
Page 20
All manuals and user guides at all-guides.com 35. S2 switch - associations sent to 4th and 5th association groups NOTE This parameter determines which actions result in sending com- Parameter 35 values mands to devices associated in 4th and 5th association group. may be combined, e.g.
Page 21
All manuals and user guides at all-guides.com 41. Reaction to Flood Alarm This parameter determines how the device will react to Flood Alarm frame. Available settings: 0 - alarm frame is ignored 1 - turn On after receiving the alarm frame 2 - turn OFF after receiving the alarm frame 3 - flash after receiving the alarm frame 1 [byte]...
Page 22
All manuals and user guides at all-guides.com 51. First channel - minimal time between power reports This parameter determines minimum time that has to elapse before sending new power report to the main controller. Available settings: 0 - reports are disabled 1-120 (1-120s) - report interval 10 (10s) 1 [byte]...
Page 23
All manuals and user guides at all-guides.com 59. Periodic energy reports This parameter determines in what time interval the periodic energy reports are sent to the main controller. Available settings: 0 - periodic reports are disabled 1-32000 (1-32000s) - report interval 3600 (1h) 2 [bytes] Default setting:...
All manuals and user guides at all-guides.com #11: Specifications Power supply: 100-240V~ 50/60 Hz NOTE Single Switch 2 (FGS-213): Rated load current: IEC certification ap- IEC standards: 8A plies in Eu countries ul standards: 6.5A and most countries Double Switch 2 (FGS-223): using 220-240V~.
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or upda- te its products, software, or documentation without any obligation to notify any individual or entity.
Page 26
第十二條 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現 有干擾現象時,應立即停用,並改善至無干擾時方得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性 電機設備之干擾。 Declaration of conformity Hereby, Fibar Group S.A. declares that FIBARO Switch 2 is in complian- ce with the essential requirements and other relevant provisions of Directive 2014/53/Eu. REGulATIOnS...
