I N S T R U K C J A O B S Ł U G I FIBARO SINGLE/DOUBLE SWITCH 2 FGS-2x3 CONTENTS v1.0 #1: Description and features #7: Associations #2: Supported loads #8: Z-Wave range test #3: Installation #9: Additional functionality... - Page 3 10A. Ogólne informacje o systemie FIBARO FIBARO jest bezprzewodowym systemem automatyki domowej, opartym o technologię Z-Wave. Elementami systemu można sterować za pomocą komputera, smartfona lub tabletu. Urządzenia Z-Wave (niebateryjne) oprócz bycia odbiornikami i nadajnikami sygnału, pośredniczą...
-
Page 4: 1: Description And Features

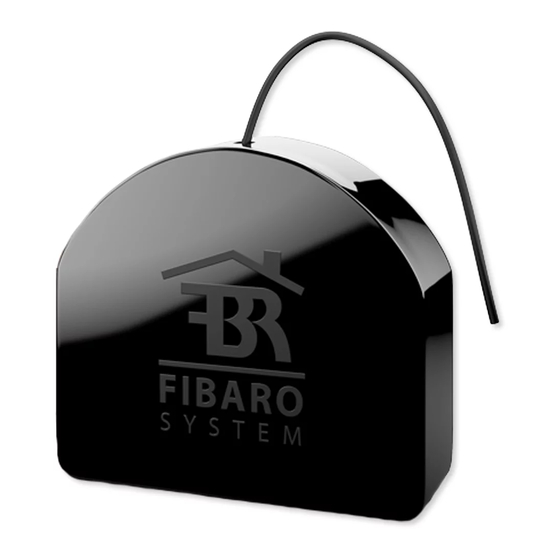

#1: Opis i funkcje urządzenia FIBARO Switch 2 is designed to be installed in standard wall switch boxes or anywhere else where it is necessary to control electric devices. FIBARO Switch 2 allows to control connected devices either via the Z-Wave+ network or via a switch connected directly to it and is equipped with active power and energy consumption metering functionality. -
Page 5: 2: Supported Loads
#2: Wspierane obiążenia Switch 2 może pracować z następującymi obciążeniami: • konwencjonalnymi żarówkami, • żarówkami halogenowymi, • urządzeniami elektrycznymi, których pobór mocy nie przekracza limitu określonego dla urządzenia. Podłączone obciążenie i sam Switch 2 mogą zostać uszkodzone, jeśli obciążenie jest niezgodne ze specyfikacją techniczną! Przy podłączaniu Switch 2 należy stosować... -
Page 6: 3: Installation
#3: Installation Connecting the Switch 2 in a manner inconsistent with this manual may cause risk to health, life or material damage. When connecting the Switch 2 act in accordance with the following rules: • connect only in accordance with one of the diagrams, •... - Page 7 Installation of the Switch 2: NOTE 1. Switch off the mains voltage (disable the fuse). Switch connected to 2. Open the wall switch box. the S1 terminal is a master switch. It acti- 3. connect with one of following the diagrams for appropriate vates the basic func- device: tionality of the device...
-
Page 8: 4: Adding/Removing The Device
#4: Adding/removing the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add NOTE the device to existing Z-Wave network. In case of problems To add the device to the Z-Wave network: related to unknown configuration or type 1. Place the Switch 2 within the direct range of your Z-Wave controller. of external switch use 2. -
Page 9: 5: Operating The Device
#5: Operating the device Controlling Switch using momentary switch NOTE and parameter 20 set to 0: Momentary switch 1x click: After releasing • change the state of the connected load to the opposite one switch a spring auto- (S1 switches 1st channel, S2 switches 2nd channel), matically pushes back and disconnects the •... - Page 10 Controlling the Switch 2 using the B-button: The Switch 2 is equipped with a B-button, which allows to use the menu and perform the following actions: 1x click: • cancel alarm mode (flashing alarm). • Select desired menu position (if menu is active). •...
- Page 11 Controlling the Switch 2 using FIBARO Home Center controller: After adding the Switch 2 to the network, it will be represent- ed in the home center interface by two similar icons, one for each channel: Turning the device ON/OFF – ON and OFF icons are used for operat- ing the load.
-
Page 12: 6: Power And Energy Consumption
#6: Power and energy consumption The Switch 2 allows for the active power and energy consump- CAUTION tion monitoring. Data is sent to the main Z-Wave controller, e.g. The Switch 2 require home center. the power consump- Measuring is carried out by the most advanced micro-controller tech- tion of connected load nology, assuring maximum accuracy and precision (+/- 1% for loads equal to 5W or greater... -
Page 13: 7: Associations
#7: Associations Association (linking devices) - direct control of other devices within NOTE the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave controller). Association ensures direct transfer control commands between devices, is performed without The Switch 2 provides the association of five groups:... -
Page 14: 8: Z-Wave Range Test
#8: Z-Wave range test The Switch 2 has a built in Z-Wave network main controller’s CAUTION range tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler. -
Page 15: 9: Additional Functionality
#9: Additional functionality Overheat and overcurrent protection: The Switch 2 after detecting overheat or overcurrent will: • switch off its relay/relays, • send information about switching off the relay/relays to the controller, • send Notification Report to the controller (heat Alarm for over- heat, Power Managment for overcurrent). -
Page 16: 10: Advanced Parameters
#10: Advanced parameters The Switch 2 allows to customize its operation to user’s needs. The settings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure the Switch 2 (using the home center controller): 1. - Page 17 12. Kanał 1. - parametr czasowy dla trybów opóźnionego/auto- matycznego włączenia/wyłączenia Parametr pozwala ustawić parametr czasowy dla trybów z parametru 10. Available settings: 0 (0,1s), 1-32000 (1-32000s; co 1s) - parametr czasowy Default setting: 50 (50s) Parameter size: 2 [bytes] 13.
- Page 18 18. Kanał 2. - czas impulsu trybu migania (tylko FGS-223) Parametr pozwala ustawić co jaki czas urządzenie przełączy stan na przeciwny w trybie migania. Available settings: 1-32000 (0,1-3200,0s; co 0,1s) - parametr cza- sowy Default setting: 5 (0.5s) Parameter size: 2 [bytes] 20.
- Page 19 Available settings: 1 - 1 x klik NOTE 2 - 2 x klik Parameter 29 values may be combined, 4 - 3 x klik e.g. 1+2=3 means that 8 - Wciśnięcie i przytrzymanie scenes for single and Default setting: 15 (all) Parameter size: 1 [byte] double click are sent.
- Page 20 33. Przełącznik S1 - wartość komendy Double Click dla 2. i 3. grupy NOTE Parametr określa wartość komendy Double click (dwuklik) wysyłanej Parameter 35 values do urządzeń z 2. i 3. grupy asocjacyjnej. may be combined, e.g. 1+2=3 means that as- Available settings: 0-255 - wysyłana wartość...
- Page 21 41. Reakcja na Alarm Zalania (Flood Alarm) Parametr określa reakcję urządzenia na Alarm Zalania (Flood Alarm). Available settings: 0 - brak reakcji 1 - włącz obciążenie 2 - wyłącz obciążenie 3 - tryb migania 1 [byte] Default setting: Parameter size: 42.
- Page 22 Available settings: 0 - raporty nie są wysyłane 1-120 (1-120s) - report interval 10 (10s) 1 [byte] Default setting: Parameter size: 53. Kanał 1. - raportowanie energii Parametr określa minimalną zmianę zużycia energii w stosunku do poprzednio zaraportowanej, która spowoduje wysłanie nowego ra- portu do kontrolera.
- Page 23 59. Okresowe raportowanie energii Parametr określa, w jakich odstępach czasu okresowe raporty zużycia energii są wysyłane do kontrolera. Available settings: 0 - raporty nie są wysyłane 1-32000 (1-32000s) - report interval Default setting: 3600 (1h) Parameter size: 2 [bytes] 60. Pomiar mocy pobieranej przez moduł Parametr określa czy mierzona wartość...
-
Page 24: 11: Specifications
#11: Specifications Power supply: 100-240v~ 50/60 hz Single Switch 2 (FGS-213): Rated load current: IEc standards: 6.5A Ul standards: 8A Double Switch 2 (FGS-223): IEc standards: 6.5A per channel, 10A overall Ul standards: 6A per channel, 9.5A overall Operational temperature: 0-35°c For installation in boxes: Ø... -
Page 25: 12: Regulations
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or upda- te its products, software, or documentation without any obligation to notify any individual or entity. - Page 26 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用 者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現 有干擾現象時，應立 停用， 改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性 電機設備之干擾。 Declaration of conformity hereby, Fibar Group S.A. declares that FIBARO Switch 2 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/Ec. REGUlATIONS...
