O P E R A T I N G
EN
M A N U A L
FIBARO WALL DOUBLE SWITCH
FGWDSEU-221
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FGWDSEU-221 and is the answer not in the manual?

Questions and answers

Related Manuals for FIBARO FGWDSEU-221

Summary of Contents for FIBARO FGWDSEU-221

  • Page 1 O P E R A T I N G M A N U A L FIBARO WALL DOUBLE SWITCH FGWDSEU-221 v1.0...

  • Page 3: Table Of Contents

    Table of contents 1: Important safety information 2: Description and features 2.1: Description 2.2: Main features 3: Specifications 4: Installation 4.1: Before installation 4.2: Preparing for installation 4.3: Electrical connection 4.4: Assembling the device 5: Adding to Z-Wave network 5.1: Adding manually 5.2: Adding using Smart Start 6: Removing from Z-Wave network 7: Operating the device 7.1: Controls 7.2: Single/double switch operating mode 7.3: Button control...

  • Page 4: 1: Important Safety Information

    1: Important safety information Read this manual before attempting to install the device! Failure to observe recommendations included in this manual may be dangerous or cause a violation of the law. The manu- facturer, Fibar Group S.A. will not be held responsible for any loss or damage resulting from not following the instructions of operating manual.

  • Page 5: 2: Description And Features

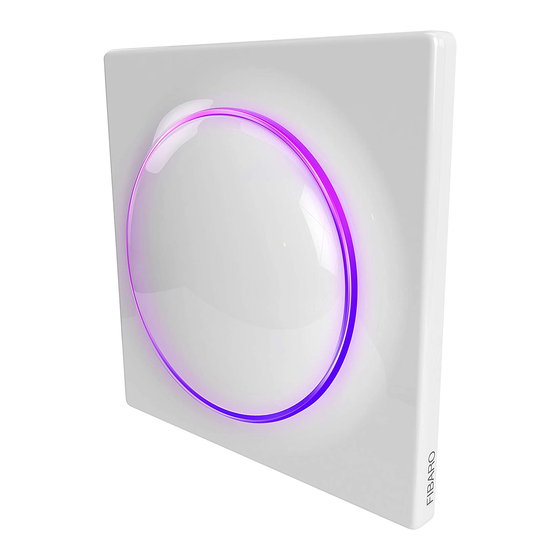

    2: Description and features 2.1: Description FIBARO Wall Double Switch is a smart wall switch designed to con- trol one or two light sources via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible.

  • Page 6: 3: Specifications

    3: Specifications Power supply 110-230V~ 50/60 Hz Rated load current 13A per one channel 16A total Compatible load types incandescent bulbs tube lamps electronic transformers ferromagnetic transformers Active element micro-gap relay μ Recommended external 10A type B circuit breaker (EU) overcurrent protection 13A type B circuit breaker (Sweden) For installation in boxes Ø...

  • Page 7: 4: Installation

    Do not connect SELV or PELV circuits. • Make sure you have all required parts when installing with covers other than FIBARO (see “Parts compatibility” on page 37). Device parts: 1 – switch button, 2 – cover plate, 3 – unit (device), 4 – mounting...

  • Page 8: Preparing For Installation

    4.2: Preparing for installation When installing with FIBARO or GIRA cover plates: 1. Pull out the switch button. 2. Take off the cover plate. When installing with Legrand or Schneider cover plates: 1. Pull out the original switch button. 2. Take off the original cover plate.

  • Page 9: Assembling The Device

    When installing the device in the mounting box orient the device with terminal screws going up or to the left (for horizontal button position) to ensure button order. When installing with cover plates other than FIBARO, we recommend disabling the LED by changing param- eter 13 to 0.
  • Page 10 When installing with Legrand cover plates: 1. Insert the device with mounting frame* into the mounting box and secure with mounting claws and screws. 2. Snap the switch button adapter* to the device. 3. Snap the new inner cover plate to the device. 4.

  • Page 11: 5: Adding To Z-Wave Network

    5: Adding to Z-Wave network Adding (Inclusion) – Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. If you want to change single/double switch operating mode (see “Single/double switch operating mode” on page 13), you must do it before adding the device to the Z-Wave network.

  • Page 12: 6: Removing From Z-Wave Network

    6: Removing from Z-Wave network Removing (Exclusion) – Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. Removing also re- sults in resetting the device to factory defaults. To remove the device from the Z-Wave network: 1. Power the device. 2.

  • Page 13: 7: Operating The Device

    7: Operating the device 7.1: Controls 1. First button, 2. Second button, 3. LED ring. 7.2: Single/double switch operating mode The device can work as single or double switch: • Double switch mode (default) – the device can control two separate loads, but they can be up to 13A per channel and 16A total.

  • Page 14: Button Control

    7.3: Button control Controlling connected loads Perform following actions on one of the buttons to change state of the connected load. Button operation is configurable using advanced parameters. Double switch mode – the 1st button controls the 1st channel and the 2nd button controls the 2nd channel: •...

  • Page 15: Menu

    • 3 red blinks – entering the menu (not added to a Z-Wave network), • Green – reset energy consumption memory, • Magenta – start Z-Wave range test, • Yellow – reset to factory defaults, • White – change or check operating mode (single or double switch), •...

  • Page 16: 8: Power And Energy Metering

    8: Power and energy metering The device allows for the active power and energy consumption mon- itoring. Data is sent to the main Z-Wave controller, e.g. Home Center. Measuring is carried out by the most advanced microcontroller tech- nology, assuring maximum accuracy and precision (+/- 1% for loads greater than 10W).

  • Page 17: 9: Z-Wave Range Test

    9: Z-Wave range test The device has a built in Z-Wave network main controller’s range tester. To make Z-Wave range test possible, the device must be added to the Z-Wave controller. Testing may stress the network, so it is recommended to perform the test only in special cases.

  • Page 18: 10: Configuration

    10: Configuration 10.1: Associations Association (linking devices) – direct control of other devices within the Z-Wave system network e.g. Dimmer, Relay Switch, Roller Shutter or scene (may be controlled only through a Z-Wave controller). Association ensures direct transfer of control commands between devices, is performed without participation of the main controller and requires associated device to be in the direct range.

  • Page 19: Advanced Parameters

    The settings can be adjusted via Z-Wave controller to which the de- vice is added. The way of adjusting them might differ depending on the controller. In the FIBARO interface parameters are presented as simple options in Advanced Settings of the device. Available parameters:...
  • Page 20 Second channel – overload safety switch Only in Double Switch Mode This function allows to turn off the controlled device in case of exceeding the defined power. Description Controlled device can be turned back on via button or sending a control frame. Parameter size 4B Default value 0 (disabled)
  • Page 21 LED frame – colour when ON This parameter defines the LED colour when the device is ON. When set to 8 or 9, LED frame colour will change Description depending on he measured power and param- eter 10. Other colours are set permanently and do not depend on power consumption.
  • Page 22 LED frame – brightness This parameter allows to adjust the LED frame Description brightness. Parameter size 1B Default value 100 (100%) 0 – LED disabled 1-100 (1-100% brightness) Available 101 – brightness directly proportional to mea- values sured power 102 – brightness inversely proportional to mea- sured power Buttons operation This parameter defines how device buttons...
  • Page 23 Outputs orientation Only in Double Switch Mode This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (e.g. Description in case of invalid connection). Changing orienta- tion turns both outputs off. Parameter size 1B Default value 0 –...
  • Page 24 1B [MSB] – Notification Type 2B – Notification Status 3B – Event/State Parameters 4B [LSB] – action: Available 0x00 – no action, 0xX1 – turn ON, 0xX2 – turn values OFF, 0xX3 – turn ON/OFF continuously, 0x0X – no action on LED frame, 0x1X – LED frame blinks red, 0x2X –...
  • Page 25 1B [MSB] – Notification Type 2B – Notification Status 3B – Event/State Parameters 4B [LSB] – action: Available 0x00 – no action, 0xX1 – turn ON, 0xX2 – turn values OFF, 0xX3 – turn ON/OFF continuously, 0x0X – no action on LED frame, 0x1X – LED frame blinks red, 0x2X –...
  • Page 26 0 – infinite Available values 1-32400 (1s-9h, 1s step) – duration First button – scenes sent This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes Description for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.
  • Page 27 Power reports for first channel – on change This parameter defines minimal change (from the last reported) in measured power that re- Description sults in sending new report. For loads under 50W the parameter is irrelevant, report are sent every 5W change. Parameter size 2B Default value 15 (15%)
  • Page 28 0 – periodic reports disabled Available values 30-32400 (30s-9h, 1s step) – time interval Energy reports for first channel – on change This parameter defines minimal change (from Description the last reported) in measured energy that re- sults in sending new report. Parameter size 2B Default value 10 (0.1kWh)
  • Page 29 150. First channel – operating mode This parameter allows to choose operating for Description the 1st channel . Parameter size 1B Default value 0 – standard operation Available 1 – delayed OFF values 2 – single pulse 151. Second channel – operating mode Only in Double Switch Mode This parameter allows to choose operating for Description...
  • Page 30 Second channel - reaction to switch for delayed OFF / 153. pulse modes Only in Double Switch Mode This parameter determines how the device in timed mode reacts to pushing the button for 2nd channel. Description The parameter is relevant only for button tog- gles modes (parameter 20 set to 1 or 3).
  • Page 31 First button – Switch ON value sent to 2nd and 3rd 156. association groups This parameter defines value sent with Switch Description ON command to devices associated in 2nd and 3rd association group. Parameter size 2B Default value 0 – turn off Available 1-99 –...
  • Page 32 Second button – Switch OFF value sent to 4th and 5th 160. association groups Only in Double Switch Mode This parameter defines value sent with Switch Description OFF command to devices associated in 4th and 5th association group. Parameter size 2B Default value 0 –...

  • Page 33: 11: Z-Wave Specification

    11: Z-Wave specification Generic Device Class: GENERIC_TYPE_SWITCH_BINARY Specific Device Class: SPECIFIC_TYPE_POWER_SWITCH_BINARY Supported Command Classes Command Class Version Secure 1.COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E] 2.COMMAND_CLASS_SWITCH_BINARY [0x25] 3.COMMAND_CLASS_ASSOCIATION [0x85] COMMAND_CLASS_MULTI_CHANNEL_ASSOCI- ATION [0x8E] COMMAND_CLASS_ASSOCIATION_GRP_INFO [0x59] COMMAND_CLASS_TRANSPORT_SERVICE [0x55] 7.COMMAND_CLASS_VERSION [0x86] COMMAND_CLASS_MANUFACTURER_SPECIFIC [0x72] COMMAND_CLASS_DEVICE_RESET_LOCALLY [0x5A] 10.COMMAND_CLASS_POWERLEVEL [0x73] 11.COMMAND_CLASS_SECURITY [0x98] 12.COMMAND_CLASS_SECURITY_2 [0x9F] 13.COMMAND_CLASS_SUPERVISION [0x6C] 14.COMMAND_CLASS_METER [0x32]...
  • Page 34 Multichannel Command Class* ROOT (Endpoint 1) Generic Device GENERIC_TYPE_SWITCH_BINARY Class Specific Device SPECIFIC_TYPE_POWER_SWITCH_BINARY Class COMMAND_CLASS_ZWAVEPLUS_INFO [0x5E] COMMAND_CLASS_SWITCH_BINARY [0x25] COMMAND_CLASS_ASSOCIATION [0x85] COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION [0x8E] COMMAND_CLASS_ASSOCIATION_GRP_INFO [0x59] Command COMMAND_CLASS_SECURITY [0x98] Classes COMMAND_CLASS_SECURITY_2 [0x9F] COMMAND_CLASS_SUPERVISION [0x6C] COMMAND_CLASS_METER [0x32] COMMAND_CLASS_NOTIFICATION [0x71] COMMAND_CLASS_PROTECTION [0x75] COMMAND_CLASS_APPLICATION_STATUS [0x22] Description Switch 1 Endpoint 2...
  • Page 35 Notification Command Class The device uses Notification Command Class to report different events to the controller (“Lifeline” group). Notification Event Parameter In endpoints Type Over-current Power Manage- Root, Endpoint detected ment [0x08] 1, Endpoint 2* [0x06/V3] Power Manage- Over-load de- Root, Endpoint ment [0x08] tected [0x08]...
  • Page 36 Meter CC Meter Type Scale Rate Type Precision Size Electric_kWh Electric Import [0x00] [0x01] [0x01] (default) Electric Electric_W Import [0x01] [0x02] [0x01] Assocation groups mapping Association group in Root Endpoint endpoint Association Group 2 Endpoint 1 Association Group 2 Association Group 3 Endpoint 1 Association Group 3 Association Group 4...

  • Page 37: 12: Parts Compatibility

    Wall Double Switch / Dimmer FG-WDSEU221-PP-0005 / Roller Shutter Lightguide Parts not included in the FGWDSEU-221 set are sold separately. Parts required for GIRA System 55 (only with non-metalised out- er surface: Standard 55, E2, Event, Event Clear) cover plates...
  • Page 38 Parts required for Schneider Odace cover plates Required FIBARO parts Name Symbol Wall Double Switch Unit FG-WDSEU221-AS-8001 Mounting Frame Schneider FG-Wx-AS-4003 parts compatIbIlIty...

  • Page 39: 13: Regulations

    FIBARO and Fibar Group logo are trademarks of Fibar Group S.A. All other brands and product names referred to herein are trademarks of their respective holders.
