SAT40S, SAT25S
Satellite 950-3000 MHz Distribution Amplifier
Optimised for digital TV signal amplification.
Thank you for selecting an Australian designed and built amplifier.

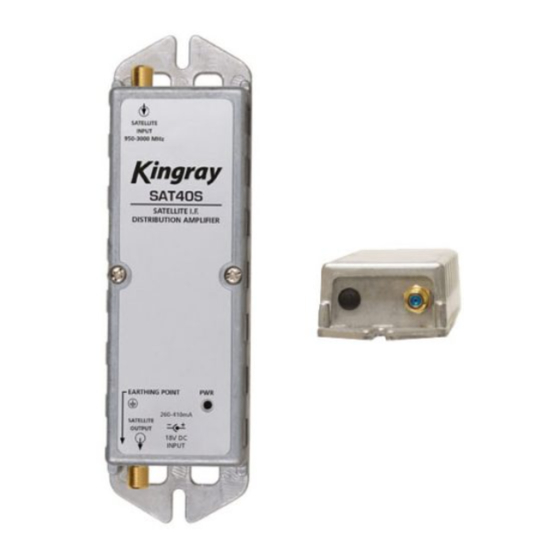

The SAT40S and SAT25S are satellite distribution amplifiers for use in SMATV multiple dwelling
applications. They feature high output with adjustable gain and equalisation control. The amplifier is
designed to be powered by an 18 volt DC power supply (see Fig .1).
CAUTION: This amplifier contains
devices that are sensitive to
Electrostatic Discharge (ESD).
Installation MANUAL
Specialists in Digital TV Distribution Solutions
Satellite
Input
Selector
Switch
18V, 12V
or 0V
0-15dB
Equalisation
Controls
950-2400 MHz
Satellite
Output

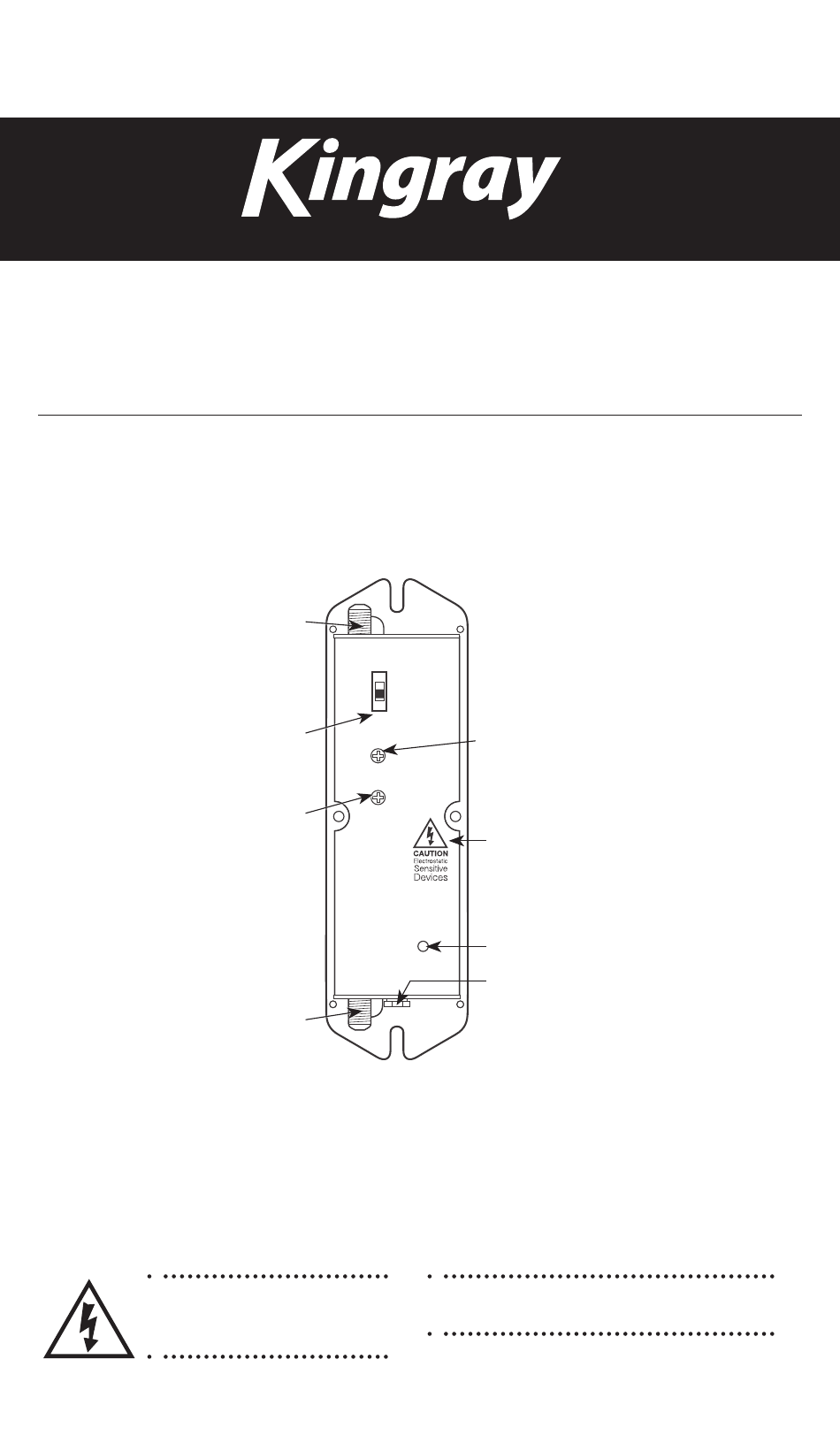

Figure 1. (Lid removed)
0-10dB (SAT25S)
0-20dB (SAT40S)
Gain Control
950-3000 MHz
Electrostatic
Warning
Power LED
18V DC
Input
WARNING: Do not connect power directly into
the input sockets otherwise damage will occur.
Advertisement
Table of Contents
Related Manuals for Kingray SAT40S
Summary of Contents for Kingray SAT40S
- Page 1 Output Figure 1. (Lid removed) The SAT40S and SAT25S are satellite distribution amplifiers for use in SMATV multiple dwelling applications. They feature high output with adjustable gain and equalisation control. The amplifier is designed to be powered by an 18 volt DC power supply (see Fig .1).
- Page 2 Figure 2. (Lid removed) INSTALLATION GME CONTRACT WARRANTY AGAINST DEFECTS The SAT40S or the SAT25S is intended for This warranty against defects is given by GME Pty reasonable care and skill and agree to investigate indoor use. Ltd ACN 000 346 814 (We, us, our or GME). Our...
- Page 3 Note: When using the SAT25S with the Kingray KMS-F1 as a launch amplifier, do not exceed 102dBµV output level. DVB-S2 DVB-S MPEG-4 YEAR WARRANTY A division of GME Pty Ltd. Head Office: PO Box 96, Winston Hills, NSW 2153, Australia.
