Proscend M366 Quick Installation Manual

Outdoor Dual SIM LTE Cellular Router
Quick Installation Guide

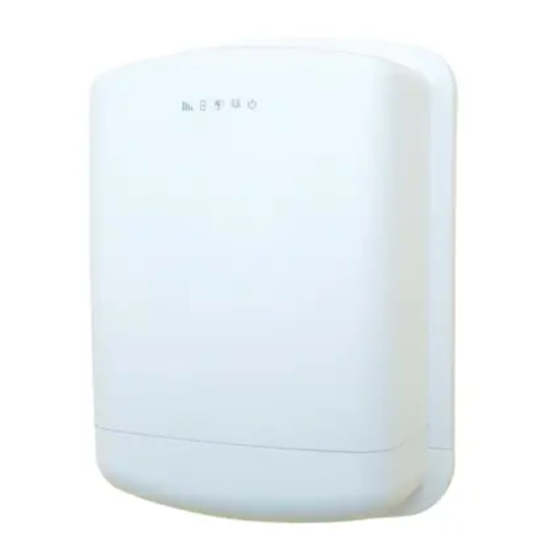

Physical Appearance

Dimension (W x H x D): 170 x 225 x 89 mm
Front View Side View

Hardware Interfaces

# Item
1 Micro SIM Card slot 1. It's the default.
2 Micro SIM Card slot 2
3 ETHERNET 10/100/1000Mbps Ethernet Port with PoE
Reboot: Press less than 5 seconds
4 RESET
Restore to factory default: Press for at least 5 seconds

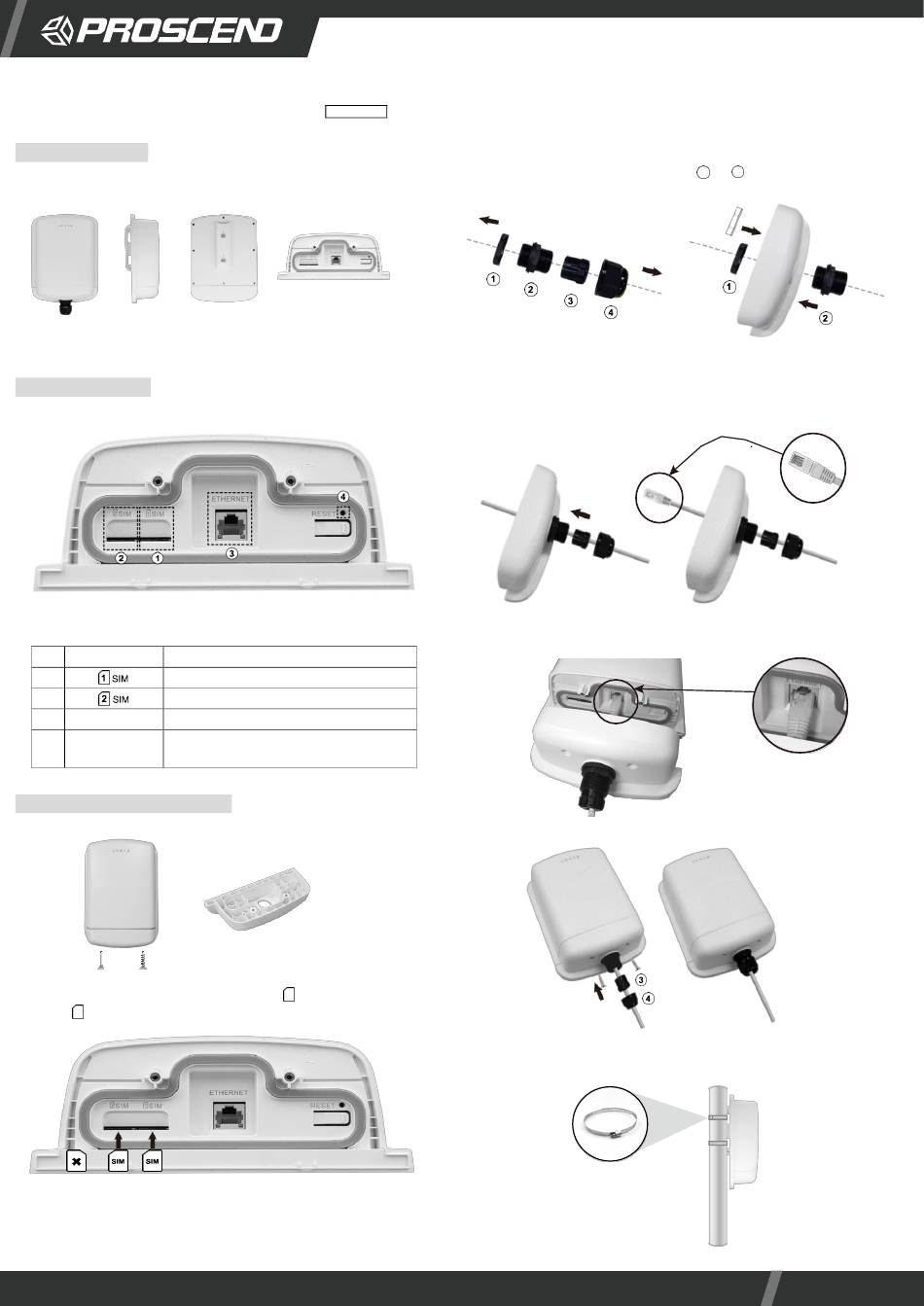

Hardware Installation Procedures

STEP 1: Unscrew 2 screws and remove the bottom cover.
STEP 2: Insert a Micro SIM into SIM holder slot 1 and the second SIM into
Slot 2 . Beware of the micro SIM orientation.
Proscend Communications Inc. All rights reserved.
Version: 1.10
Rear View Internal View
Description
STEP 3: Split the rubber plug components. Fix
1
2
3
4
STEP 4: Put the Ethernet cable through the hole of the bottom cover and make
a new RJ45 connector.
NOTE: Ethernet cable is not included in the package.
STEP 5: Insect the RJ45 connector into the Ethernet port.
STEP 6: Put the bottom cover back and screw them tightly. Lock the rubber
plug.
STEP 7: Put the device on a pole in the right height and direction. Fix the
router with the pole mounting kit.
