- Page 1 Proscend 120 VDSL2 Router User Manual Version 0.01...
-
Page 2: Table Of Contents
............................28 YNAMIC OUTES P ..............................29 ............................30 IRTUAL ERVER IP Q S ..............................32 6.7.1 QoS Scheduler ..........................32 6.7.2 QoS Policy ............................33 VLAN ........................... 34 ASED MANAGEMENT ............................35 Proscend 120 VDSL2 Router User Manual V0.01... - Page 3 ............................38 ETWORK TATUS ..........................39 ONFIGURATION .............................. 40 IAGNOSTIC ................................ 41 TROUBLESHOOTING ..........................42 ......................... 42 ROUBLESHOOTING SUGGESTIONS IP U ..................... 44 IAGNOSING ROBLEM USING TILITIES 8.2.1 Ping..............................44 8.2.2 Nslookup ............................44 Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 4: Introduction
The Proscend 120 delivers a compact, cost-effective and innovative solution to its customers. This User Manual will show you how to connect your Proscend 120 VDSL2 Router and how to customize its configuration to get the most out of your device. -
Page 5: Specification
° ° Operation Humidity: 5% ~ 95% • Storage Temperature: -20 ~ +85 • ° Storage Humidity: 5%~95% • Power AC/DC Switching supply : AC Input :100~240V 50/60Hz DC Output :12V 1.5Amp • Proscend 120 VDSL2 Router User Manual V0.01... -
Page 6: Device Requirements
1.3 Device Requirements In order to use the Proscend 120, you must have the following: DSL service up and running on your telephone line Instructions from your ISP on what type of Internet access you will be using, and the addresses... -
Page 7: Getting To Know The Device
2.1 Parts Check In addition to this document, your package should arrive containing the following: DSL Modem Package Contents The device Ethernet RJ-45 Cable USB Cable DSL RJ-11 Line Cable Power adapter User’s Manual CD Proscend 120 VDSL2 Router User Manual V0.01... -

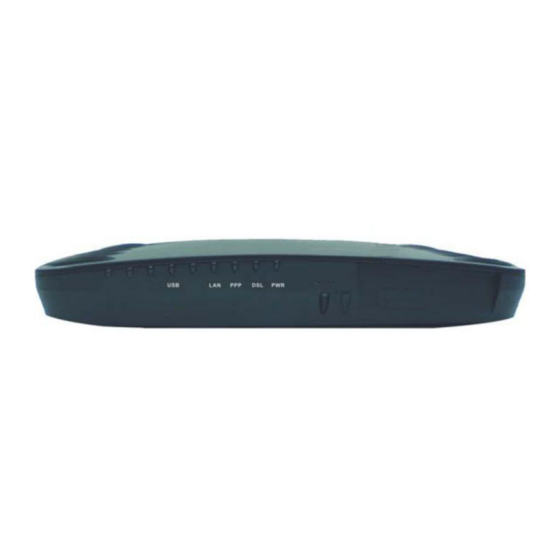

Page 8: Front Panel
Green/Red Red On: PPP disconnection On: LAN link established and active Off: No LAN link Green Blink: Data being transmitted On: USB link established and active Green Off: No USB link Rear Panel Proscend 120 VDSL2 Router User Manual V0.01... - Page 9 A reset button to reset the device or reset to default settings LAN1 ~ LAN4 Connects the device via Ethernet to your devices in LAN DSL Jack Connects to the ISP’s DSL network Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 10: Connecting Your Device
LAN hub/switch (if applicable), and the device. The diagram below illustrates the hardware connections. The layout of the ports on your device may vary from the layout shown. Refer to the steps that follow for specific instructions. Proscend 120 VDSL2 Router User Manual V0.01... - Page 11 After setting up and configuring the device and PCs, you can log on to the device by following the instructions in chapter “Getting Started with the Web pages”. The chapter includes a section called Testing your Setup, which enables you to verify that the device is working properly. Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 12: Getting Start With The Web
192.168.1.1. Then enter the default username and password: admin/admin to access the configuration web page, if you have not changed the username and password. The home page opens displaying the Internet Port Configuration page of device: Proscend 120 VDSL2 Router User Manual V0.01... - Page 13 It includes the sub menus Dynamic DNS, Firewall, Static Routes, Dynamic Routes, UPnP, Virtual Server, IP QoS, and Port-Based VLAN. Management: provides the administration utilities such as Remote Management, System Reset, Proscend 120 VDSL2 Router User Manual V0.01...
- Page 14 Firmware Upgrade, Network Status, Save Configuration, Diagnostic and Time Zone. Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 15: Commonly Used Buttons
Point the mouse arrow over the entry and left-click to select it. This does not perform an action – you will also be required to click on a button, menu entry or link in order to proceed. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 16: Help Information
4.3 Help information To view the help, click the desired menu or submenu. The related help information appears in a separated page. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 17: Testing Your Setup
If the LEDs do not illuminate as expected, you may need to configure your Internet access settings using the information provided by your ISP. If the LEDs still do not illuminate as expected or the web page is not displayed, see Troubleshooting section or contact your ISP for assistance. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 18: Default Device Settings
LAN Configuration 192.168.1.10 through computers. To use this service, you must have set Protocol) 192.168.1.250 up your computers to accept IP information dynamically, as described in DHCP Server section. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 19: Basic Setup
The Device Configuration Page of the device allows you to configure the device to work as router or bridge. Device Configuration To configure the Device Mode: Select Route Mode or Bridge Mode from the list. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 20: Internet Port
If the connection protocol is “fixed IP address”, need more information about subnet mask, default gateway, and DNS server. NAT: Disabled or Enabled Default Route: Disabled or Enabled IGMP: Disabled or Enabled PPP User Name and Password (also known as Broadband User Name and Password) Proscend 120 VDSL2 Router User Manual V0.01... -
Page 21: Pppoe Connection
Enter the VLAN ID if the traffic is tagged with VLAN ID. Click to Enable NAT. Click to Add Default Route Click to Enable IGMP if need Click Add and then click Save to save the configuration, otherwise click New to configure it again. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 22: Dhcp (Dynamic Ip Configuration)
Secondary DNS. Usually, the information of DNS sever will be given from DHCP server in ISP site. Click to enable NAT if need Click to enable IGMP if need Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 23: Static Ip Configuration
Enter the VLAN ID if the traffic is tagged with VLAN ID. Enter the IP address, Submask, Gateway, Primary DNS address and Secondary DNS address. Click to enable NAT if need Click to enable IGMP if need Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 24: Local Port
It means WINS provides easy configuration and administration of Windows-based TCP/IP networks. If you do not use WINS server, leave it as blank. Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 25: Advanced Setup
Enter your account name (full registered host name) if your DDNS service provider is not supported in the above pull down list. Enter your username and password for login which you register the account name in the DDNS service provider. Proscend 120 VDSL2 Router User Manual V0.01... - Page 26 Click to enable Backup MX if you need to back up the mail exchanger’s address while you login the DDNS service provider every time. Click Save to save the configuration. Click Update to update the DDNS service or click Refresh to refresh display. Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 27: Firewall
Besides, A DMZ (DeMilitarized Zone) host is a computer on your network that can be accessed from the Internet regardless of NAT, port forwarding and IP filter settings. A DMZ is often used to host Web servers, FTP servers etc that need to be accessible from the Internet. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 28: Static Routes
The added routing rule will be shown in the table. Click Delete All to remove all entries or click Delete to remove the specified entry. Click Routing Table to get the current routing table. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 29: Dynamic Routes
6.4 Dynamic Routes The device provides to set RIP, RIPv2 Authentication, Split-Horizon and Poison-Reverse. Dynamic Routes Configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 30: Upnp
6.5 UPnP The device provides UPnP feature.. UPnP Configuration Global Setting Check to enable “UPnP” Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 31: Virtual Server
Check if you want to forward the Single port or a Range of ports Enter the Port number (Range) from start to end Click Add to add this application into the selection list Proscend 120 VDSL2 Router User Manual V0.01... - Page 32 Virtual Server Configuration – Define Application Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 33: Ip Qos
Kbps used for QoS. Enter the Priority Percentage for High, Medium, and Low queues. The rest of percentage will be assigned to Default queue automatically. Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 34: Qos Policy
In the above figure, it shows the any packet with destination IP address,192.168.1.100 and port number, 20 will be put into medium queue. Select the specified entry in the QoS policy table and click Delete to remove the rule. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 35: Port-Based Vlan
Global Setting Enter the value of WAN VLAN ID in Bridge Group 1, 2 and 3 Select the LAN ports from LAN1 to LAN4 for each Bridge Group. Click Save to save the configuration. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 36: Management
Check to enable Restrict Management from LAN, the default is disabled. Enter the MAC addresses that you allow them to access the device if this feature is enabled. Click Save to save the configuration Proscend 120 VDSL2 Router User Manual V0.01... -
Page 37: System Reset
This page allows you to reboot the device with current settings or factory default settings. Management Configuration – System Reset Global Setting Click Reboot to reboot the device with current settings Click Default Reset to reboot the device with factory default settings Proscend 120 VDSL2 Router User Manual V0.01... -
Page 38: Firmware Upgrade
Management Configuration – Firmware Upgrade Global Setting Click Browse to specify the location of firmware Click Upgrade to start the upgrade procedure. The device will reboot automatically when the firmware is loaded completely. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 39: Network Status
7.4 Network Status This page shows the network status and most important information about LAN, WAN protocol, and VDSL. Management Configuration – Network Status Proscend 120 VDSL2 Router User Manual V0.01... -
Page 40: Save Configuration
To load the configuration profile from file, click Browse to specify the location of file and click Load to load the configuration profile into the device. The device will reboot automatically when the configuration is loaded. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 41: Diagnostic
This page allows you to ping a remote IP or domain name to test the Internet connection working fine or not. Management Configuration – Diagnostic Global Setting Enter the IP address or Host name (domain name) Click ping to start the diagnostic process. Proscend 120 VDSL2 Router User Manual V0.01... -
Page 42: Time
Enter the value of Update Interval to sync up the clock with NTP server Click Save to save your settings Click Update to get the real time clock now Proscend 120 VDSL2 Router User Manual V0.01... -
Page 43: Troubleshooting
If you statically assigned a private IP address to the computer, (not a registered public address), verify the following: Check that the gateway IP address on the computer is your public IP address. If it is not, correct the address Proscend 120 VDSL2 Router User Manual V0.01... - Page 44 IP address assigned to the LAN port on the device. My changes to the web pages Be sure to use the Confirm Changes function after any are not being retained. changes. Proscend 120 VDSL2 Router User Manual V0.01...
-
Page 45: Diagnosing Problem Using Ip Utilities
You specify the common name, and the nslookup command looks up the name in on your DNS server (usually located with your ISP). If that name is not an entry in your ISP’s DNS table, the request is then Proscend 120 VDSL2 Router User Manual V0.01... - Page 46 There may be several addresses associated with an Internet name. This is common for web sites that receive heavy traffic; they use multiple, redundant servers to carry the same information. To exit from the nslookup utility, type exit and press [Enter] at the command prompt. Proscend 120 VDSL2 Router User Manual V0.01...
