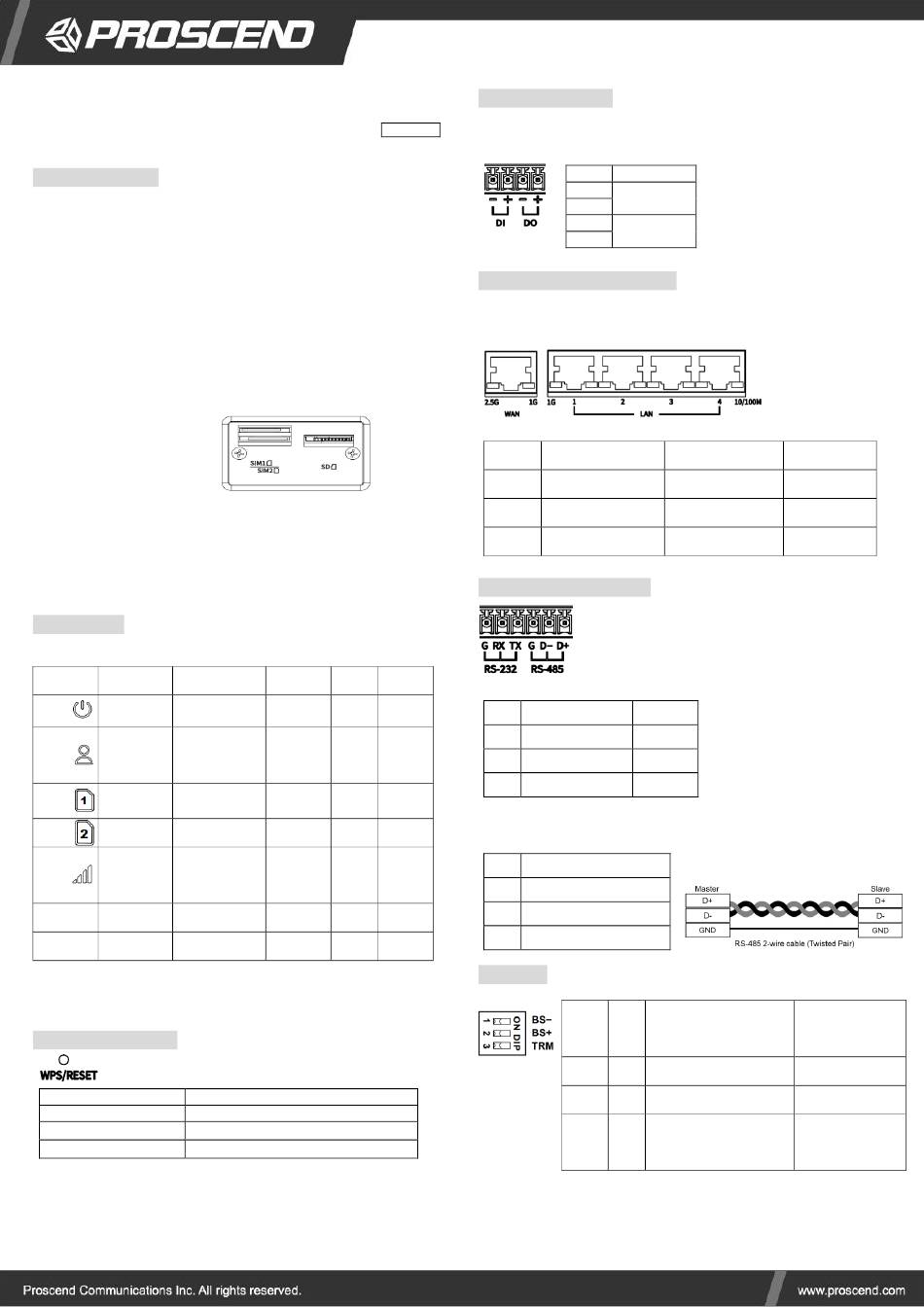

Proscend M357-5G Quick Installation Manual

M357-5G Industrial Cellular Router
Quick Installation Guide
Install the SIM Card
STEP 1: Before inserting or removing the SIM and SD cards, ensure that
the power has been turned off, or the power connector has been
removed from the M357-5G Cellular Router.
STEP 2: Using a screwdriver to remove the metal protective cover first,
insert the SIM and SD cards into the card slots. The cut-off edge
of the SD and SIM1 cards (SIM 2) is to the left (right).
STEP 3: Push the SIM and SD cards and lightly press them to lock into the
slot.
STEP 4: Remove the SIM and SD cards, lightly press them and they will
pop out of the slot.
NOTE:
 Please use the industrial SIM and SD cards operating from -40°C to +105°C to
ensure proper cellular router operation.
 SIM loose contacts: adding a layer of tape behind the SIM might increase
contact pressure for better attachment.
LED Indicators
The following table explains the LED indicators on the front panel.
LED Off
SYS Power down Power up
Internet
FN
Not working
connected
SIM1
Not working Connected
SIM2
Not working Connected
Signal No signal High signal
*2.4GHz
Not working Wi-Fi 2.4GHz on
*5GHz Not working Wi-Fi 5GHz on
NOTE:
" * " Applicable for Wi-Fi edition only.
WPS and Reset Button
Function
*WPS Processing
Reset Press the button for less than 5 seconds.
Reset to default setting Press the button for more than 5 seconds.
NOTE:
" * " Applicable for Wi-Fi edition only.
Version: 1.01
On Slow Fast Heartbeat
Booting N/A
N/A N/A
Connecting Error Reading
Connecting Error Reading
Medium Low
signal signal
N/A N/A
N/A N/A
Operation
TBD

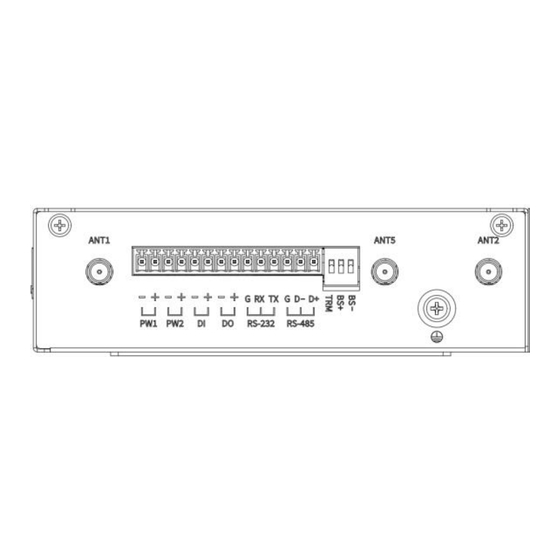

Connecting I/O Ports
There are four terminals on the terminal block with two terminals used
for digital input and two terminals used for digital output.
LED Indicators of Ethernet Port
There are two LED indicators for each of the four LAN ports and one
WAN port.
LED
2.5G Data Transmitting
1G Data Transmitting
10/100M Data Transmitting
RS-232 and RS-485 pinouts
RS-232
N/A
Pin Signal
TX Transmit Data
N/A
RX Receive Data
G Signal Ground
RS-485
Pin Description
N/A
D + Serial Port, Data+ (A) wire
D - Serial Port, Data- (B) wire
N/A
G Signal Ground
N/A
DIP Switch
Switch
NOTE:
 (D+), (D−) stands for RS-485 pinouts.
 BS−, BS+ must be in the same ON/OFF position.
-1-
Pin Description
DI +
Digital Input
DI -
DI: Low (+0 to +3V)/High (+8 to +40V)
DO + Digital
DO: Open Collect (maximum 30V/300mA)
DO - Output
Blinking On
2.5G LINK UP
1G LINK UP
10/100M LINK UP
Direction
Output
Input
-
DIP
Mode ON
1 BS− Enabled (D−) 1K ohm Pull Low
2
BS+ Enabled (D+) 1K ohm Pull High
Enabled 120-ohm Termination
3 TRM
between (D+) and (D−)
Off
LINK DOWN
LINK DOWN
LINK DOWN
OFF
Disabled (D−) Pull Low
Disabled (D+) Pull High
Disabled Termination
P/N: 604040000080
