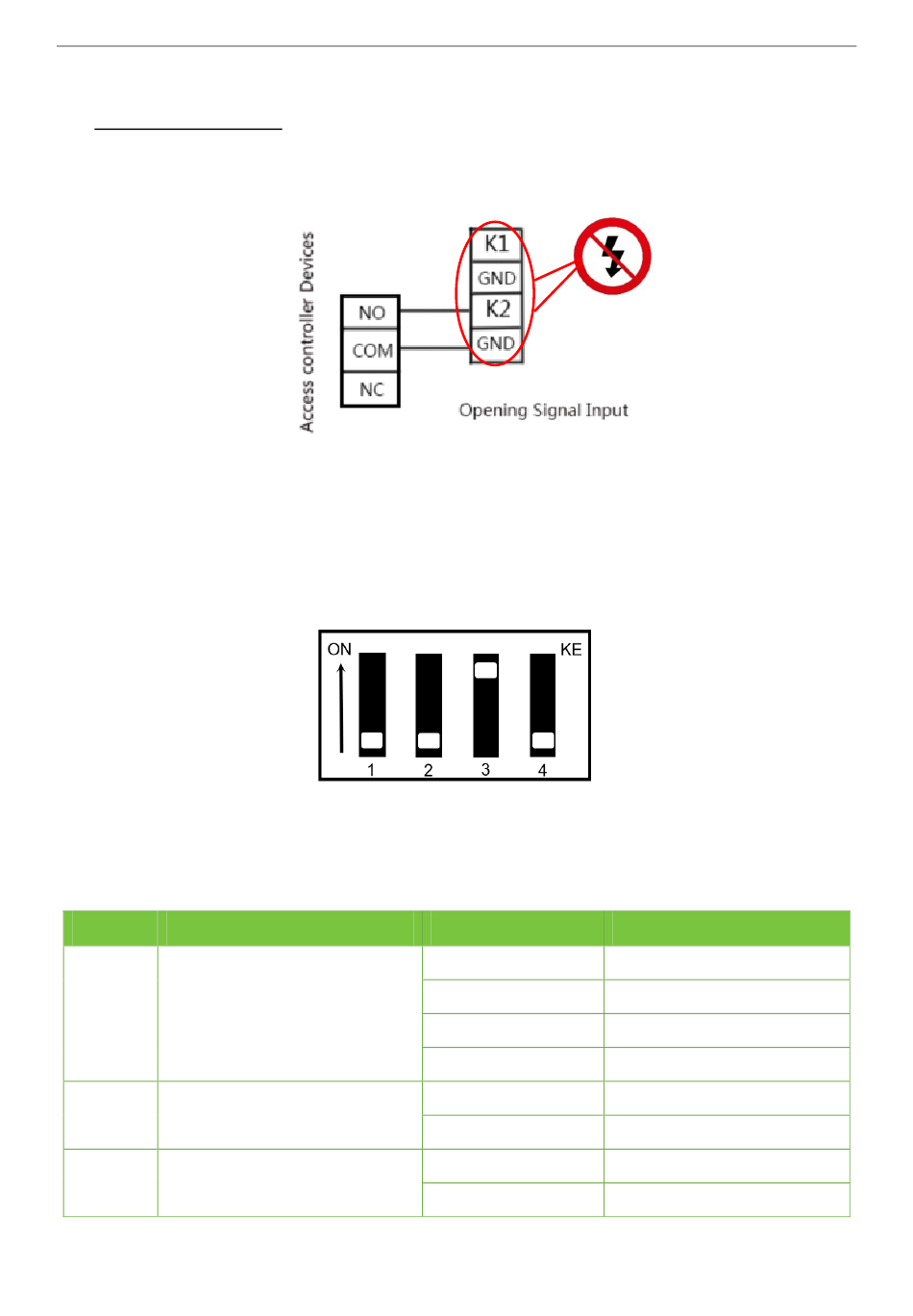

Cable Diagram

4.1

Connection Diagram of the Access Controller

Note: The lock relay duration of access controller device needs to be set to 1s. Forbidden using electrically
charged objects to connect to the port of Opening Signal Input, otherwise will damage the control board.
4.2

DIP Switch Configuration for SATT-L-V1.1

4.2.1

Function Introduction

No. Function Setting
1&2 Opening Mode
3 Opening Duration
4 Continue Passing Function
P a g e | 7
Figure 4-1
Figure 4-2
Bit Setting
00 (default)
10
01
11
0
1 (default)
0 (default)
1
User Manual
Tips
Two-way Swipe
Left Free, Right Swipe
Left Swipe, Right Free
Two-way Prohibited
10S
5S
Open
Close
