TS200 Series Tripod Turnstile

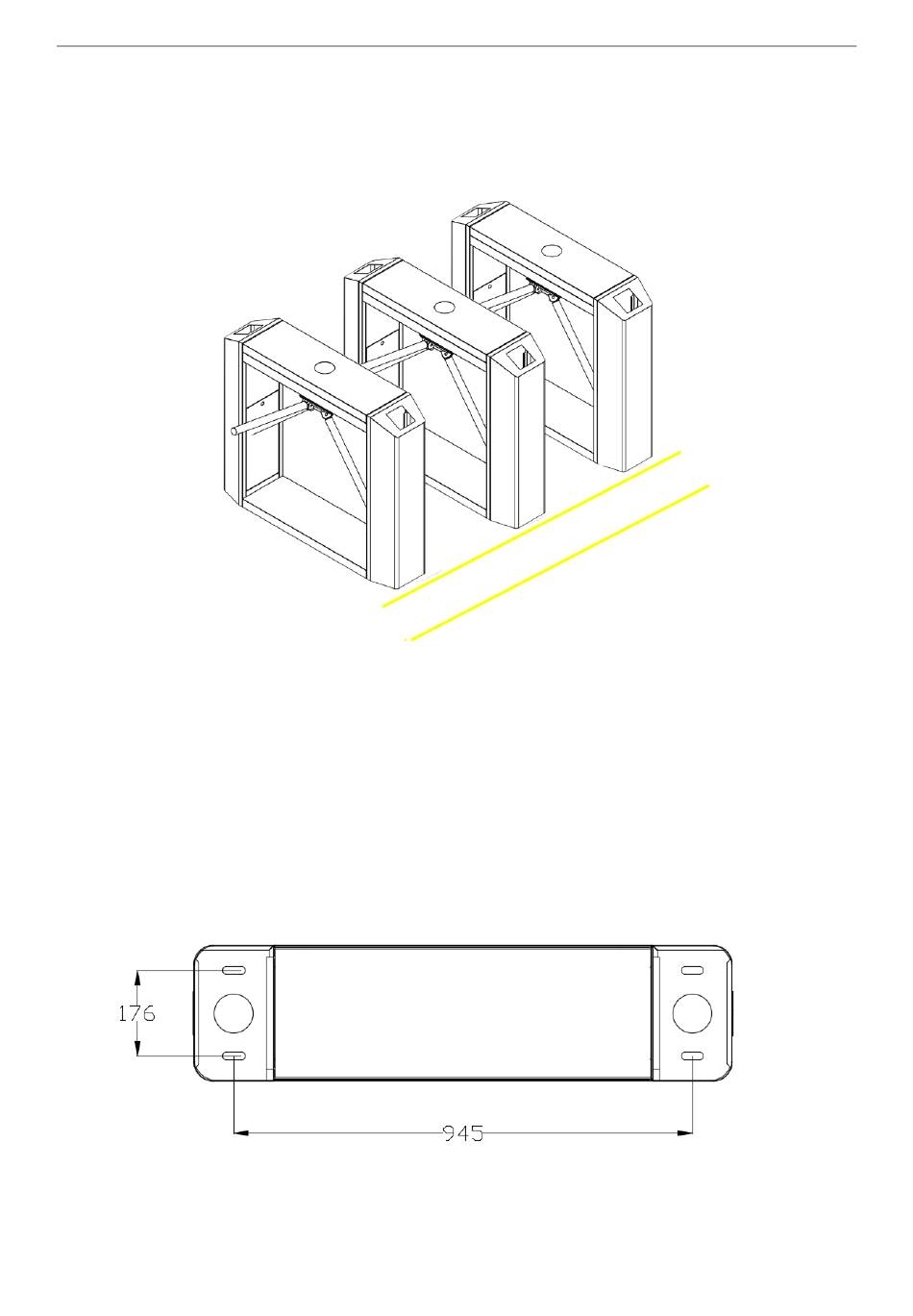

3. You are also recommended to set a warning line for card swiping (see Figure 3-2). The warning line
prompts users to swipe cards in a particular area, which would greatly reduce the probability of
equipment failure caused by improper operations.
3.2

Cabling

There are inlets in the bottom plate for cabling, as shown in Figure 3-3. Units of all data is millimeter.
Power supply and communication wire should go through the inlet. Cable protection covers are
suggested to use if it is surface mounted.
Warning: The tripod turnstile must be connected to the ground (earth); there is wiring interface near the
power switch.
P a g e | 5
Figure 3-2
Figure 3-3
