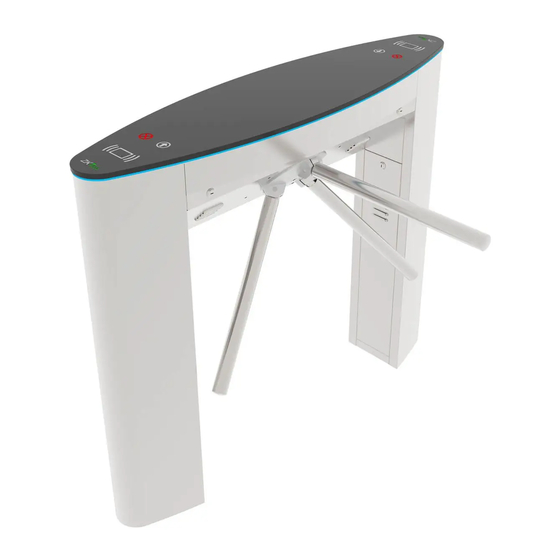

- Page 1 Quick Start Guide TS5000A Series Applicable Models: TS5000A/ TS5011A/ TS5022A Version: 1.5 Date: December 2018 1 F16 Quick Start Guide...
-
Page 2: Table Of Contents
Contents Chapter 1 Preparing ............................................1 Chapter 2 Fixing and Testing........................................1 Chapter 3 Terminal of Control Panel ....................................2 3.1 Description .......................................... 2 3.2 DIP switch configuration .................................... 2 3.3 Button board settings ....................................3 Chapter 4 Wiring Diagram ......................................... 4 Chapter 5 Troubleshooting ........................................ -
Page 3: Chapter 1 Preparing
Chapter 1 Preparing Tools: a measuring tape, an adjustable wrench, an impact drill and a small screwdriver (included in the box). Material: a PVC anti-fire and insulation tube (diameter≥25mm), standard three-core power extension wire, M12 expansion screw (included in the box). Thread the connection wire of the device through the tube before assembly. -
Page 4: Chapter 3 Terminal Of Control Panel
Chapter 3 Terminal of Control Panel ⑤ ④ ⑥ ⑦ ⑧ ① ② ③ 3.1 Descriptions System power input: 24V power input, supply power to the master panel. Buzzer: 12V power output, buzzer power supply. Indicator light: Power output related to the indicators. RS232 communication: Connect to the button board. -
Page 5: Button Board Settings
If DIPs “1” and “2” are “ON” and DIPs “3” and “4” are “OFF”, the device will be tested automatically. 3.3 Button board settings Cut off the power, connect the port of button board to RS232 port of the control panel. Power the device up after connection. -
Page 6: Chapter 4 Wiring Diagram
, the change is effective. Chapter 4 Wiring Diagram Wiring diagram of TS5000A 4 TS5000A Quick Start Guide... -
Page 7: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Sr. NO Descriptions Solutions Arms are not lifted when the device is powered on or the arms Check to see if the wiring or the cannot drop when power off. screws is loose. Please refer to the operation Turnstile’s arm is not centering properly. - Page 8 6 TS5000A Quick Start Guide © Copyright 2018. ZKTeco Inc. ZKTeco Logo is a registered trademark of ZKTeco or a related company. All other product and company names mentioned are used for identification purposes only and may be the trademarks of their respective owners. All specifications are subject to...
