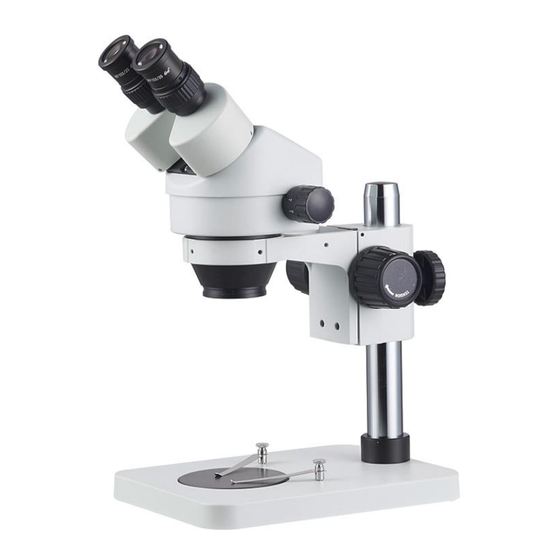

- Page 1 A23.3645 Series Zoom Stereo Microscope Instruction Manual Please read this manual carefully before use microscope! www.cnoec.com.cn Page 1 of 17 sale@cnoec.com...
-
Page 2: Before Use
1 Before use NOTICE 1) Microscope ought to be placed in a dry and clean place. Do not expose the microscope in the sun directly. Avoid high temperature and violent vibration. 2) As microscope is a precision instrument, handle with care, avoiding impact or abrupt movement during transportation. - Page 3 2 Nomenclature 2-1 A23.3645 Eyepiece shield Eyepiece Diopter adjusting ring Head Illumination device Zoom control knob Focusing Lamp lock-screw Glass stage Clip Base Top variable light control Fuse Bottom variable light control Switch www.cnoec.com.cn Page 3 of 17 sale@cnoec.com...
- Page 4 2-2 A23.3645 Diopter ad justin g ring E yep iece sh ield Zoo m con tro l knob E yepiece Head lo ck -screw Head Focu sin g knob Glass stage Base Clip www.cnoec.com.cn Page 4 of 17 sale@cnoec.com...
- Page 5 Assemble 3-1 A23.3645 Eyepiece shield Eyepiece Head Head lock-screw Clips Glass stage www.cnoec.com.cn Page 5 of 17 sale@cnoec.com...
-
Page 6: Operation
4 Operation 4-1Use the glass stage 1) Press the glass stage on the sunken place then the other side of the glass stage will be lifted. (Fig.1) 4-2 Adjust the degree of tightness of the focusing arm. 1) If you want to adjust degree of tightness of the focusing arm, you can hold one of the focusing knobs and turn another one to attain a suitable position. - Page 7 4-7 Mount and Remove the Optional Eyepiece Micrometer 1) Turn and remove the mounting ring② from the eyepiece.(Fig.5) 2) Clean the eyepiece micrometer① and mount it to the mounting ring with the inscription side downward. 3) Gently twist the mounting ring with the eyepiece micrometer into the eyepiece till tightening②...
- Page 8 3) Connect the 12V DC power with the power socket of the PVA cable. 4-13 Appear the image on the Monitor or TV 1) Connect the power supply and then turn on the Monitor or TV. 2) For the monitor, the connect sign model must be chosen (C-video or S-video) and for TV, the channel must be set to the video channel.
- Page 9 3) Geometry character measuring function, automatically analyzing function such as slightness body, grain body, line body and so on. The outcome can be kept in data and can be made into chart and so forth. 4-19 Use the white balance 1) The CCD has auto white balance when the white balance switch is on“ON”.
-
Page 10: Specification
Specification A23.3645 Zoom Stereo Microscope Specification Binocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm Head Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter Eyepiece WF10x/20mm Zoom Lens 0.7~4.5x Zoom Ratio 1:6.5 Magnification 7x-45x, Up To 3.5x-180x With Optional Eyepieces And Auxiliary Objectives Working Distance... - Page 11 www.cnoec.com.cn Page 11 of 17 sale@cnoec.com...
- Page 12 Stands & Holder Arm www.cnoec.com.cn Page 12 of 17 sale@cnoec.com...
- Page 13 www.cnoec.com.cn Page 13 of 17 sale@cnoec.com...
-
Page 14: Technical Parameter
7 Technical parameter A23.3645 Technical Data Sheet Auxiliary objectives Standard configuration 0.5X 1.5X Working Working Working distance Working distance Eyepiece distance100mm distance165mm 45mm 30mm Field Field Field Field Magnification Magnification Magnification Magnification view view view view 28.6 3.5X 57.1 10.5X 14.3 10X/20 22.5X... - Page 15 ★ Working distance is fixed regardless of the magnification factor. ★ Total mag.= Zoom mag. X Eyepiece mag. X Auxiliary objective mag. Field number of eyepiece Diameter of field of view（mm）= Zoom mag.X Auxiliary objective mag. ★ Photo adaptor mag.= Zoom mag.( ×Auxiliary objective mag.)×Eyepiece mag. ★...
-
Page 16: General Troubleshooting
8 Trouble Shooting The performance of the microscope can’t be made fully because of unfamiliar using, this table will give some advices. General troubleshooting Trouble Cause Remedy Interpupillary distance is not Readjust it correct 1、Double images Diopter adjustment is not correct Readjust it Magnification of each eyepiece Mount... -
Page 17: Video Troubleshooting
Video troubleshooting Trouble Cause Remedy The pole is not in correct Draw it to the correct position 1、Incision image appears in the position video view Dirt on the specimen Clean the specimen 2、 Dirt appears in the video view Dirt on the surface of objective Clean the surface The image is not clear in the Readjust the high magnification...
