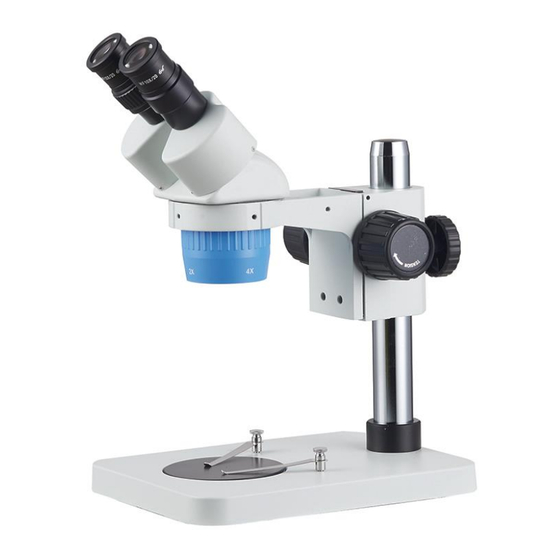

- Page 1 A22.3660N Series Stereo Microscope Instruction Manual Please read this manual carefully before use microscope! www.optoedu.com Page 1 of 13 sale@cnoec.com...
-
Page 2: Before Use
1 Before use OPERATION 1.1 The microscope should be set in dry and clean place. Do not expose in the sun directly and avoid high temperature and violent vibration. 1.2 As the microscope is precision instruments, it should be taken carefully and avoid impact during transportation. - Page 3 2 Nomenclature 2-1 A22.3660 N www.optoedu.com Page 3 of 13 sale@cnoec.com...
- Page 4 2-2 A22.3660 N www.optoedu.com Page 4 of 13 sale@cnoec.com...
- Page 5 Assemble 3-1 A22.3660 N www.optoedu.com Page 5 of 13 sale@cnoec.com...
- Page 6 3-1 A22.3660 N www.optoedu.com Page 6 of 13 sale@cnoec.com...
-
Page 7: Operation
4 Operation 4-1Use glass stage (一) Take out from the sunken place.(Fig 1) 4-2Adjust tightness of focusing 1. Hold one knob and turn another to adjust. The clockwise direction is for tight and counter-clockwise direction for loose. (Fig 2) 2. The suitable position of tightness can make the adjustment more comfortable and prevent the focusing arm slipping down by its weight during the observation. - Page 8 4-7 Mount and remove the micrometer from eyepiece Take off the mounting ring from eyepiece. (Fig6) Clean the micrometer, then put it into the mounting ring and make the inscription side up. (Fig 6) Put the mounting ring into eyepiece gently. To remove the micrometer, take off the mounting ring first.
-
Page 9: Specification
Specification A22.3660N-B1 Stereo Microscope Specification Head Binocular Head, 45° Inclined, 360° Rotatable Wide Field, High-Eyepoint Eyepiece-WF10X20mm Eyepiece (WF15X/15mm, WF20X/10mm Optional) Objective Turret Objective 1x/3x, 2x/4x or 1x/2x Magnification Range 10X-80X Inter-Pupillary Distance 54-76mm Diopter Range ± 5mm Working Distance 100mm Stand Pole Stand, No Light Source Objective Optics Parameter... - Page 10 Stands & Holder Arm www.optoedu.com Page 10 of 13 sale@cnoec.com...
- Page 11 www.optoedu.com Page 11 of 13 sale@cnoec.com...
-
Page 12: Technical Parameter
7 Technical parameter Auxi liary Objective Parameter Auxiliary objective Magnification Working distance (mm) 0.5X 1.5X ★Working distance is fixed regardless of the magnification factor. ★Total mag.= Zoom mag. X Eyepiece mag. X Auxiliary objective mag View field of eyepiece Field diameter （ mm） = Objective mag. * auxiliary objective mag. ★... -
Page 13: Troubleshooting
8 Troubleshooting The performance of the microscope can’t be made fully because of unfamiliar using, this table will give some advices: Trouble Cause Remedy Readjust it Interpapillary distance is not correct 1. Double image Diopter is not correct Readjust it Use the same eyepiece Different magnification of two eyepieces 2.
