SeaLevel Route 56 User Manual

Hide thumbs Also See for Route 56:
Table of Contents

Advertisement

Quick Links

Download this manual

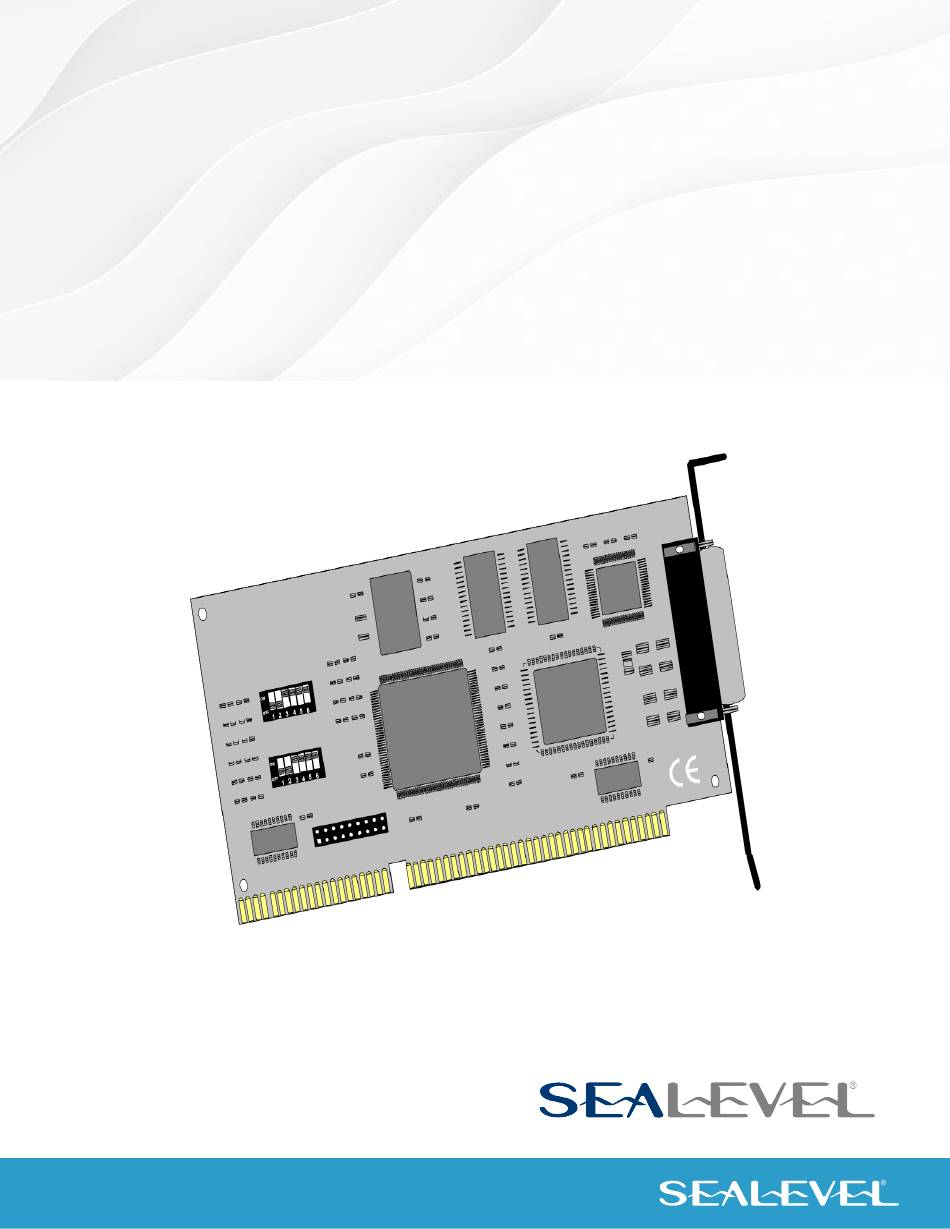

Route 56
User Manual | 5011
1
© Sealevel Systems, Inc.
5011 Manual | SL9167 12/2022

Advertisement

Table of Contents
loading

Related Manuals for SeaLevel Route 56

Summary of Contents for SeaLevel Route 56

  • Page 1 Route 56 User Manual | 5011 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 2: Table Of Contents

    APPENDIX B – HOW TO GET ASSISTANCE ..................... 23 APPENDIX C – ELECTRICAL INTERFACE ......................24 APPENDIX D – SILK SCREEN ..........................26 APPENDIX E – COMPLIANCE NOTICES ......................27 WARRANTY ................................ 28 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 3: Before You Get Started

    Before You Get Started What’s Included The Route 56 is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. Route 56 Adapter (Item# 5011) • Advisory Conventions Warning The highest level of importance used to stress a condition where damage could result to the product, or the user could suffer serious injury.

  • Page 4: Introduction

    10M bps in burst mode. By utilizing the Z16C32's 32 byte FIFO buffer coupled with 256K of on board memory, higher data rates are achieved without increasing processor overhead. What’s Included The ROUTE 56 is shipped with the following items. If any of these items are missing or damaged, contact the supplier. ROUTE 56 Adapter •...

  • Page 5: Card Setup

    The ROUTE 56 contains several jumper straps for each port, which must be set for proper operation. Address Selection The ROUTE 56 adapter occupies a total of eight consecutive I/O locations. A DIP-switch is used to set the base address for these locations. Be careful when selecting the base address as some selections conflict with existing PC ports.
  • Page 6 Interface Selection The Route 56 supports a variety of electrical interfaces. These interfaces may be selected in two ways. The determining bit is found at Base+5, bit position D4, and is identified as IFSEL (InterFace SELect). Reference the Control/Status Register Descriptions, found in the Technical Description section of this manual for this bit description.
  • Page 7 IRQ Selection Header E1 is used to select the interrupt request for each the Route 56. In the example below, IRQ12 is selected. This setting must be made prior to installing the adapter. Please query your system to determine the best available IRQ to use.

  • Page 8: Installation

    Installation The ROUTE 56 can be installed in any of the 16-bit ISA expansion slots. The ROUTE 56 contains several jumper straps for each port, which must be set for proper operation. Turn off PC power. Disconnect the power cord.

  • Page 9: Technical Description

    The Sealevel Systems ROUTE 56 adapter was designed for seamless integration into any ISA based system. The ROUTE 56 adapter requires a 80286 or higher CPU, one IRQ, a 8 byte block of I/O address and a 16K block of memory address. The memory range of this adapter is configured to reside in the lower 1Megabyte of memory and appears to the system as a bank switched 16K window.
  • Page 10 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 11 IUSC. The ROUTE 56 has 256K of on-board SRAM. The 256K bytes of SRAM appear to the host processor in the 2nd 512K bytes of the host’s memory address range, (Segment 80000 to F0000). This 256K of SRAM is in a 16K bankswitched window.
  • Page 12 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 13 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 14 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 15 I/O Signal Derivation The Route 56 input/output signals are directly generated via the Zilog 16C32 IUSC. The following table defines these signals, their origin pin and signal name following the conventions set by the 16C32 user’s manual. If using a Sealevel Systems, Inc. supplied driver, this is for informational use only.
  • Page 16 Receive Positive Input RDA RX- Receive Negative Input TXCB TXC+ Transmit Clock Positive Input TXCA TXC- Transmit Clock Negative Input RXCB RXC+ Receive Clock Positive Input RXCA RXC- Receive Clock Negative Input © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 17 Transmit Clock Negative Input RXCB RXC+ Receive Clock Positive Input RXCA RXC- Receive Clock Negative Input TDB TX+ Transmit Positive Output TDA TX- Transmit Negative Output RTSB RTS+ Request To Send Positive Output © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 18 © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 19 Request To Send Negative Output DTRA DTR- Data Terminal Ready Negative Output TSETB TSET+ Transmit Signal Element Timing Output Positive TSETA TSET- Transmit Signal Element Timing Output Negative Local Loop-back Output Remote Loop-back Output © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...
  • Page 20 TDB TX+ Transmit Positive Output TDA TX- Transmit Negative Output TSETB TSET+ Transmit Signal Element Timing Output Positive TSETA TSET- Transmit Signal Element Timing Output Negative Local Loop-back Output Remote Loop-back Output © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 21: Specifications

    Mean Time Between Failures (MTBF) Greater than 150,000 hours (Calculated) Physical Dimensions Board Length 6.095 inches (15.4813 cm) Board Height including Goldfingers 3.40 inches (8.636 cm) Board Height excluding Goldfingers 3.10 inches (7.874 cm) © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 22: Appendix A - Troubleshooting

    No two adapters can occupy the same I/O address. 3. Make sure the Sealevel Systems adapter is using a unique IRQ. While the Sealevel Systems adapter does allow the sharing of IRQs, many other adapters (i.e. SCSI adapters and on-board serial ports) do not.

  • Page 23: Appendix B - How To Get Assistance

    If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.htm...

  • Page 24: Appendix C - Electrical Interface

    0 (space) and -12 volts ( -3 to -10 volts) denotes a binary 1 (mark). The RS-232 and the EIA/TIA- 574 specification defines two type of interface circuits, Data Terminal Equipment (DTE) and Data Circuit- Terminating Equipment (DCE). The Sealevel Systems adapter is a DTE interface. RS-422 The RS 422 specification defines the electrical characteristics of balanced voltage digital interface circuits.
  • Page 25 24 data, clock, and control signals. The physical connector is defined in the ISO- 2593 standard. ITU V.35 specification defines two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The Sealevel Systems adapter is a DTE interface. © Sealevel Systems, Inc.

  • Page 26: Appendix D - Silk Screen

    Appendix D – Silk Screen © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 27: Appendix E - Compliance Notices

    Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 5011 Manual | SL9167 12/2022...

  • Page 28: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
