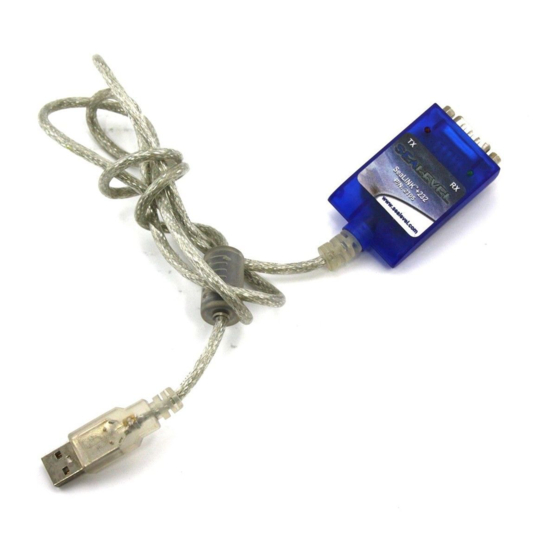

- Page 1 SeaLink+232 Users Manual Part # 2105 Sealevel Systems, Inc. Telephone: 864.843.4343 PO Box 830 Fax: 864.843.3067 Liberty, SC 29657 USA www.sealevel.com...
-
Page 2: Table Of Contents
RS-232 ..............................7 D - A ..............8 PPENDIX SYNCHRONOUS OMMUNICATIONS E - C ..................9 PPENDIX OMPLIANCE OTICES ................9 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ........................9 IRECTIVE TATEMENT ..........................10 ARRANTY © Sealevel Systems, Inc. SL9093 Revision 7/2006 Sealevel Systems, Incorporated. All rights reserved. -
Page 3: Introduction
I/O ports or IRQs. It does require a system that supports USB both in terms of hardware and operating system. What’s Included The SeaLINK+232 is shipped with the following items. If any of these items is missing or damaged, contact the supplier. -
Page 4: Installation
System Installation The SeaLINK+232 can be connected to any Upstream Type “A” port either at the PC host or an Upstream Hub, and since it is hot pluggable, there is no need to power down your computer prior to installation. The SeaLINK+232 requires no user hardware configuration. -
Page 5: Features
Technical Description Technical Description The SeaLINK+232 utilizes a USB UART. This chip features programmable baud rate, data format, 128 byte Dual Port TX Buffer, and 384 byte Dual Port RX Buffer. The RS-232 transceiver supports data rates up to 460.8K baud. -
Page 6: Specifications
Non-Condensing Non-Condensing Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Supply line +5 VDC... -
Page 7: Roubleshooting
This can be done by using either the Windows 98/ME or Windows 2000 Device Manager. 2. Ensure that the Sealevel Systems software has been installed on the machine so that the necessary files are in place to complete the installation. -
Page 8: Appendixb - Howt
3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 9: Appendixc - Ers-232
(ground) to determine binary logic states. The RS-232 and the EIA/TIA-574 specification define two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The SeaLINK+232 is a DTE device. Sealevel Systems SeaLINK+232 Page 7... - Page 10 The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). Sealevel Systems SeaLINK+232 Page 8...
-
Page 11: Emc Directive
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems SeaLINK+232 Page 9... -
Page 12: Warranty
(RMA) number. The Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.
