- Page 1 COMM+4.cPCI USER MANUAL Part # 7904 Sealevel Systems, Inc Phone: (864) 843-4343 155 Technology Place FAX: (864) 843-3067 P.O. Box 830 www.sealevel.com Liberty, SC 29657 USA...
-
Page 2: Table Of Contents
Contents ................ 1 NTRODUCTION ...................1 VERVIEW ’ ................1 NCLUDED ................2 ETUP RS-485 E ..............2 NABLE ODES Interface Mode Examples SW1 – SW4 (continued) ....4 .............4 DDRESS AND SELECTION .............5 LECTRICAL NTERFACE ELECTION ..................5 LOCK ODES ..................5 LOCK ODES ................6 NSTALLATION ............6 PERATING... - Page 3 Figure 5 - Switches SW1- SW4, RS-485 ‘RTS’ Enabled, with ‘Echo’ and no termination resistor in circuit..............4 Figure 6 - Headers E1 - E4, Electrical Interface Selection......5 Figure 7 - Asynchronous Communications Bit Diagram....... 13 © 2002a Sealevel Systems, Incorporated. All rights reserved.
-
Page 4: Introduction
COM: port. This allows the standard COM: driver to be utilized for RS-485 communications. Our on-board hardware automatically handles the RS-485 driver enable. What’s Included The COMM+4.cPCI is shipped with the following items. If any of these items is missing or damaged, contact the supplier. • COMM+4.cPCI Serial I/O Adapter •... -
Page 5: Card Setup
(RTS) is typically used to control the state of the driver. Some communication software packages refer to RS-485 as RTS enable or RTS block mode transfer. One of the unique features of the COMM+4.cPCI is the ability to be RS-485 compatible without the need for special software or drivers. This ability is especially useful in Windows and other protected mode environments where the lower level I/O control is abstracted from the application program. -
Page 6: Figure 1- Switches Sw1- Sw4, Rs-422
Figure 2 - Switches SW1- SW4, RS-485 ‘Auto’ Enabled, with ‘No Echo’ and the termination resistor in circuit. 1 2 3 4 AT RT NE T Figure 3 - Switches SW1- SW4, RS-485 ‘Auto’ Enabled, with ‘Echo’ and no termination resistor in circuit. Sealevel Systems COMM+4.cPCI Page 3... -
Page 7: Interface Mode Examples Sw1 - Sw4 (Continued)
Address and IRQ selection The COMM+4.cPCI is automatically assigned resources by your motherboard BIOS. Only the I/O addresses may be modified by the user. Adding or removing other hardware may change the assignment of I/O addresses and IRQs. -
Page 8: Electrical Interface Selection
Card Setup Electrical Interface Selection Each port on the COMM+4.cPCI has the ability to be used in either RS-232 or RS-422/485. This is selectable via eight 24 pin DIP-shunts at E1-E8. Please use the following illustration to aid in the configuration of your electrical interface. -
Page 9: Installation
Other Operating Systems Refer to the appropriate section of the Serial Utilities Software. System Installation The COMM+4.cPCI can be installed in any of the PCI expansion slots and contains configuration options for each port that must be set for proper operation. -
Page 10: Technical Description

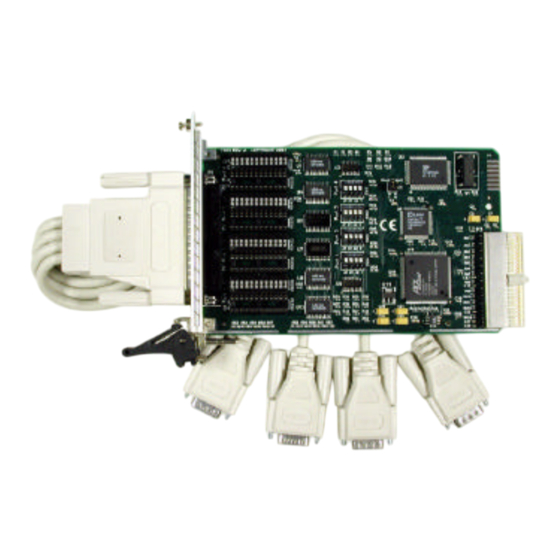

Technical Description Technical Description The Sealevel Systems COMM+4.cPCI provides a PCI interface adapter with 4 RS-232/422/485 asynchronous serial ports for industrial automation and control applications. The COMM+4.cPCI utilizes the 16C864 UART. This chip features programmable baud rates, data format, interrupt control and industry leading 128-byte transmit and receive FIFOs. -
Page 11: Specifications
Non-Condensing Non-Condensing Manufacturing • All Sealevel Systems Printed Circuit boards are built to U. L. 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption... -
Page 12: Appendixa - Troubleshooting
Appendix A - Troubleshooting Appendix A - Troubleshooting Sealevel Software is supplied with the Sealevel Systems adapter and will be used in the troubleshooting procedures. By using this software and following these simple steps, most common problems can be eliminated without the need to call Technical Support. -
Page 13: Appendixb - How T O Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com. The latest software updates, and newest manuals are available via our FTP site that can be accessed from our home page. -
Page 14: Appendixc - Electrical Interface
+3 to +10 volts) represents a binary 0 (space) and -12 volts (-3 to -10 volts) denote a binary 1 (mark). The RS-232 and the EIA/TIA-574 specification define two types of interface circuits Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The Sealevel Systems Adapter is a DTE interface. RS-422 The RS-422 specification defines the electrical characteristics of balanced voltage digital interface circuits. - Page 15 (Tx+ to Rx+ and Tx- to Rx-). Four wire mode allows full duplex data transfers. RS-485 does not define a connector pin-out or a set of modem control signals. RS-485 does not define a physical connector. Sealevel Systems COMM+4.cPCI Page 12...
-
Page 16: Appendixd - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). Sealevel Systems COMM+4.cPCI Page 13... -
Page 17: Appendixe - Silk -Screen
Appendix E - Silk-Screen Appendix E - Silk-Screen Sealevel Systems COMM+4.cPCI Page 14... -
Page 18: Appendixf - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems COMM+4.cPCI Page 15... -
Page 19: Arranty
Sealevel Systems, Inc. provides a lifetime warranty for this product. Should this product fail to be in good working order at any time during this period, Sealevel Systems will, at it's option, replace or repair it at no additional charge except as set forth in the following terms.
