- Page 1 SeaLINK+232-DB9 User Manual Item Number 2105R www.sealevel.com PO Box 830 – Liberty, SC 29657 864.843.4343...
-
Page 2: Table Of Contents
APPENDIX C – ELECTRICAL INTERFACE ............... 22 APPENDIX D – ASYNCHRONOUS COMMUNICATIONS ..........23 APPENDIX E – COMPLIANCE NOTICES ................24 ............24 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ....................24 IRECTIVE TATEMENT WARRANTY..........................25 © Sealevel Systems, Inc. SeaLINK+232-DB9 User Manual SL9208 Revision 8/2009... -
Page 3: Introduction

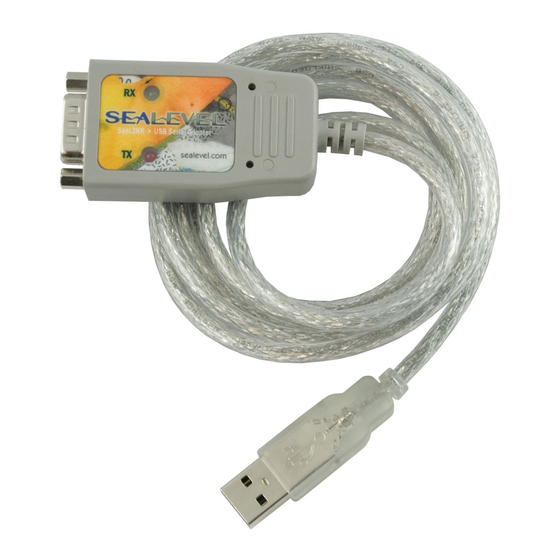

Introduction The SeaLINK® single-port USB to RS-232 serial adapter utilizes Sealevel’s expertise in military-grade designs by incorporating a ruggedized, overmolded enclosure into the 2105R. This improves the reliability and durability in industrial and mobile applications such as GPS navigation systems, barcode readers, signature input devices, serial printers, scales, and similar applications. -
Page 4: Before You Get Started
Sealevel for replacement. 2105R – USB to RS-232 1-Port Serial Interface Adapter Sealevel Software CD – SeaCOM software and user manual Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the 2105R. -
Page 5: Installation & Configuration
1. Start Windows. 2. Insert the Sealevel Software CD in to your CD drive. 3. If ‘Auto-Start’ is enabled, the installation window will automatically appear. Otherwise, navigate to the root directory of your CD drive and double-click the ‘autorun.exe’... - Page 6 9. When the ‘Ready to Install the Program’ window appears, click the ‘Install’ button to install the software onto the hard drive of your computer. The files will be automatically installed into the ‘C:\Program Files’ folder on your computer. © Sealevel Systems, Inc. - 4 - SeaLINK+232-DB9 User Manual...
- Page 7 This declaration means that SeaCOM has not been certified by Microsoft’s testing labs. Note: All SeaCOM software and drivers have been fully tested by Sealevel. Clicking ‘Yes’ will not harm your system. 12. If SeaCOM has been previously installed on your computer, you do not need to install it again.
- Page 8 Linux Installation Refer to the subdirectory D:\Software\SeaCOM\Other\Linux\ (replace “D:” with your actual CD drive letter) found on the Sealevel Software CD. This folder contains valuable information on installing your serial adapter in the various Linux releases. Also included is a series of files explaining proper Linux syntax and typical Linux serial implementations.
-
Page 9: Hardware Installation
2. A ‘Found New Hardware’ alert will appear above the system tray. 3. The ‘Found New Hardware Wizard’ will appear. 4. Choose ‘No, not this time’ and click ‘Next’ to proceed. © Sealevel Systems, Inc. - 7 - SeaLINK+232-DB9 User Manual... - Page 10 Windows certification. Click on ‘Continue Anyway’. Note: All SeaCOM software and drivers have been fully tested by Sealevel. Clicking ‘Continue anyway’ will not harm your system. 7. The appropriate drivers for your SeaLINK device and version of Windows will be installed as shown.
- Page 11 10. When the ‘Found New Hardware’ alert informs you that your hardware is installed and ready to use, you can proceed with verifying the installation to check functionality and/or locate the COM port assignments, if necessary. © Sealevel Systems, Inc. - 9 - SeaLINK+232-DB9 User Manual...
-
Page 12: Verifying Installation
5. You should now see the COM assignment with the associated COM number in parentheses. Note: Your system will assign the next available COM number, which will vary by computer (COM4 as shown in this example). © Sealevel Systems, Inc. - 10 - SeaLINK+232-DB9 User Manual... -
Page 13: Uninstall & Upgrade Instructions
3. In the left pane under ‘System Tools’, click ‘Device Manager’. 4. In right pane near the bottom, expand the ‘Ports (COM & LPT)’ section by clicking the ‘+’ symbol. 5. Locate the SeaLINK device in the listing, highlighted below. © Sealevel Systems, Inc. - 11 - SeaLINK+232-DB9 User Manual... - Page 14 Keep the device plugged in. 8. The window will refresh and the entry for the SeaLINK device will no longer appear. Proceed with removing the software on the following pages. © Sealevel Systems, Inc. - 12 - SeaLINK+232-DB9 User Manual...
- Page 15 If you want to completely remove the hardware and software from your computer, unplug the SeaLINK device from the USB port, and then reboot your computer to complete the uninstallation. © Sealevel Systems, Inc. - 13 - SeaLINK+232-DB9 User Manual...
- Page 16 Upgrade Instructions With the device still plugged in, install the latest version of SeaCOM. You can download the latest version of SeaCOM from the product page on the Sealevel website. Follow the software installation steps detailed in the preceding ‘Software Installation’...
-
Page 17: Hardware Description
USB port on a host computer or USB hub. Self-powered hubs can be used as long as they provide a minimum of 100mA to each USB port. The 2105R is USB 1.1 compliant and is compatible with USB 2.0 ports. © Sealevel Systems, Inc. - 15 - SeaLINK+232-DB9 User Manual... -
Page 18: Electrical Specifications
Electrical Specifications The SeaLINK+232-DB9 utilizes a USB UART. This chip features programmable baud rate, data format, 128-byte dual-port TX buffer, and 384-byte dual-port RX buffer. The RS-232 transceiver supports data rates up to 921.6K baud. Refer to Appendix C for cable length limitations. -
Page 19: Technical Specifications
Rating 100 mA Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc. -
Page 20: Appendix A - Troubleshooting
Technical Support. 1. Ensure that the Sealevel Systems SeaCOM software has been installed on the machine, so that the necessary files are in place to complete the installation. To confirm installation, click on the Windows ‘Start’... - Page 21 Click the ‘Settings’ button to open the COM Properties menu. Change your parameters to 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control, as pictured below. Click ‘Apply’ and ‘OK’. © Sealevel Systems, Inc. - 19 - SeaLINK+232-DB9 User Manual...
- Page 22 Technical Support If these steps do not solve your problem, please contact Technical Support. Monday – Friday 8:00 am to 5:00 pm EST Phone: +1 (864) 843-4343 Email: support@sealevel.com © Sealevel Systems, Inc. - 20 - SeaLINK+232-DB9 User Manual...
-
Page 23: Appendix B - How To Get Assistance
If possible, have your user manual and current adapter settings ready. 2. The Sealevel website is an excellent resource located at www.sealevel.com. The most current software updates and user manuals are available via our homepage by clicking on the 'Drivers' or 'Manuals' links located under ‘Technical Support.’... -
Page 24: Appendix C - Electrical Interface
(ground) to determine binary logic states. The RS-232 and the EIA/TIA-574 specification define two types of interface circuits: Data Terminal Equipment (DTE) and Data Circuit- Terminating Equipment (DCE). © Sealevel Systems, Inc. - 22 - SeaLINK+232-DB9 User Manual... -
Page 25: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e., 9600,N,8,1). © Sealevel Systems, Inc. - 23 - SeaLINK+232-DB9 User Manual... -
Page 26: Appendix E - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high-quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. - 24 - SeaLINK+232-DB9 User Manual... -
Page 27: Warranty
(RMA) number. The Customer agrees to insure the Product or assume the risk of loss or damage in transit, to prepay shipping charges to Sealevel, and to use the original shipping container or equivalent. Warranty is valid only for original purchaser and is not transferable.
