9.4. Real Mode

Slide switch position : 【UPPER】
After the opening mode finishes, the gauge shifts to the Real mode. The real-time vehicle
conditions are displayed during this mode.

Warning display

9.4.1.
If the gauge reaches or exceeds the value set for warning, the warning LED goes on. In
case of oil pressure and fuel pressure, when the gauge reaches or falls below the value set
for warning, the warning LED goes on. The zone that the warning item on a display is
highlighted. If the buzzer sound setting is on, the buzzer sounds at the same time as well.

Error displays of wire disconnection, short circuit, and serial error

9.4.2.

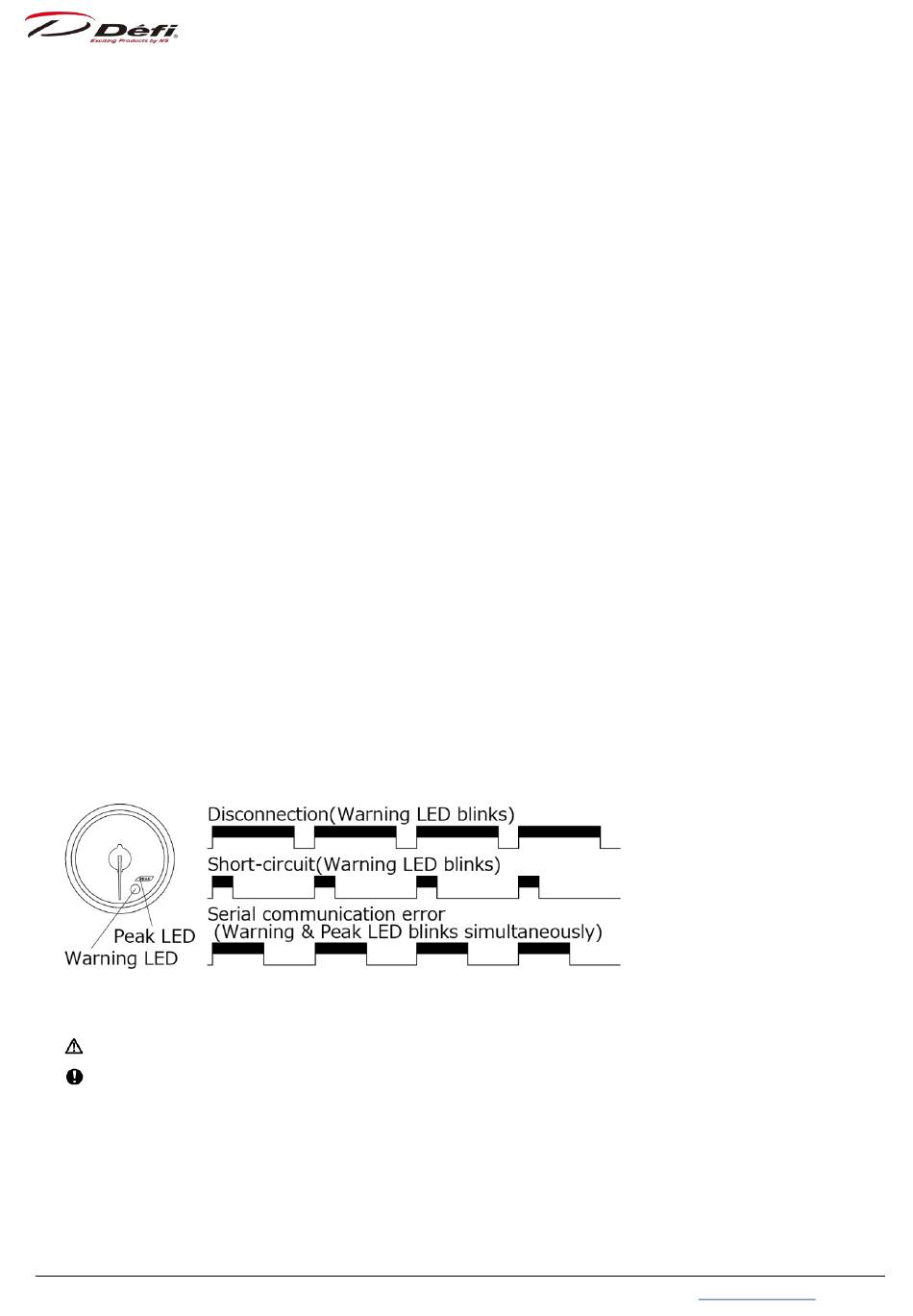

If there are disconnection of wire and/or sensor, or short circuits of wire and/or sensor, the
warning LED blinks. Error messages are displayed on displays. Once the error message is
displayed, the warning LED keeps blinking until the ignition is turned off. Please turn off the
ignition immediately and check the wiring of sensors and wires. The short-circuit error
display for oil pressure and fuel pressure are displayed only during short-circuiting.
If the communication between gauges/displays and the control unit is failed, serial error
massage is displayed and warning and Peak LEDs blink at the same time.
Caution
If an error is displayed, turn the ignition off immediately, and then confirm the wiring of
the sensor and the sensor wire. If any defects are not found, please ask the shop for
inspection.
