8. How to install <for customer and installation personnel>

8.1. Confirmation of contents

Check the contents of the package.
⇒5. Components <for customer and installation personnel>

8.2. Procedure

1. Confirm and prepare the necessary parts for installation.
Refer to the operation manual included with each gauge.
Please purchase commercially available attachment parts.

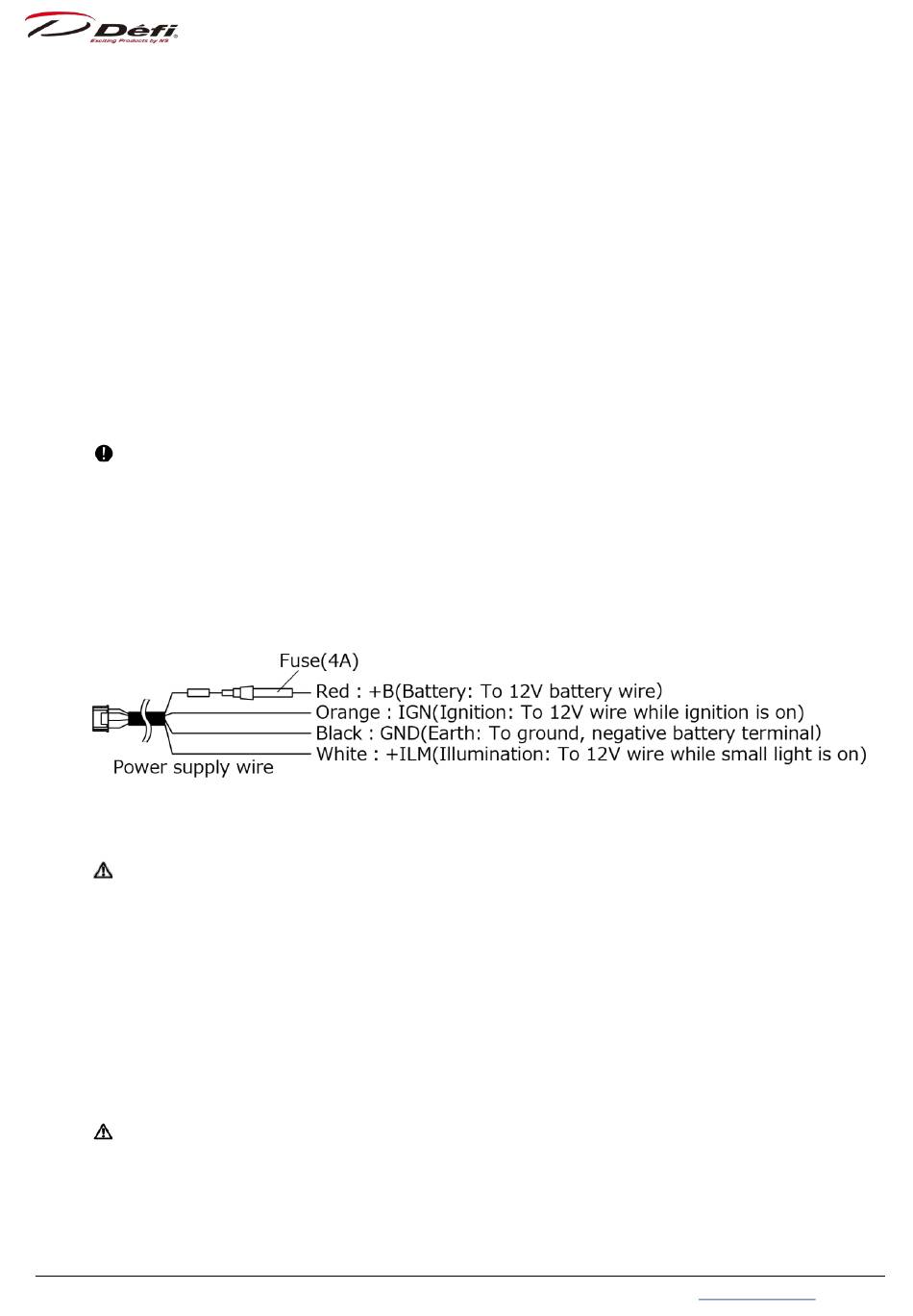

2. Confirm the location of the power source (Battery, GND, IGN, ILM) and the sensor
installation.
3. Disconnect the negative (-) battery terminal.
4. Connect the power supply wire to vehicle.
⇒8.4 How to solder / How to use the solderless connectors
Warning
Do not connect the IGN wire to the ACC (power source for accessory) wire. Failure to do
so way lead to a malfunction or accident.
5. Connect the power supply wire to the control unit. Connect the negative battery
terminal and turn the ignition on. Then confirm DC SOURCE LED lights up, which is on
the front of the control unit.
Confirmation
If the power source wire is wired incorrectly, LED won't light. If LED doesn't light,
please confirm wiring again.
6. Disconnect the negative battery terminal and install each sensor.
⇒Refer to the operation manual included with each gauge.
ADVANCE Control Unit SE Manual 20 Return to top
