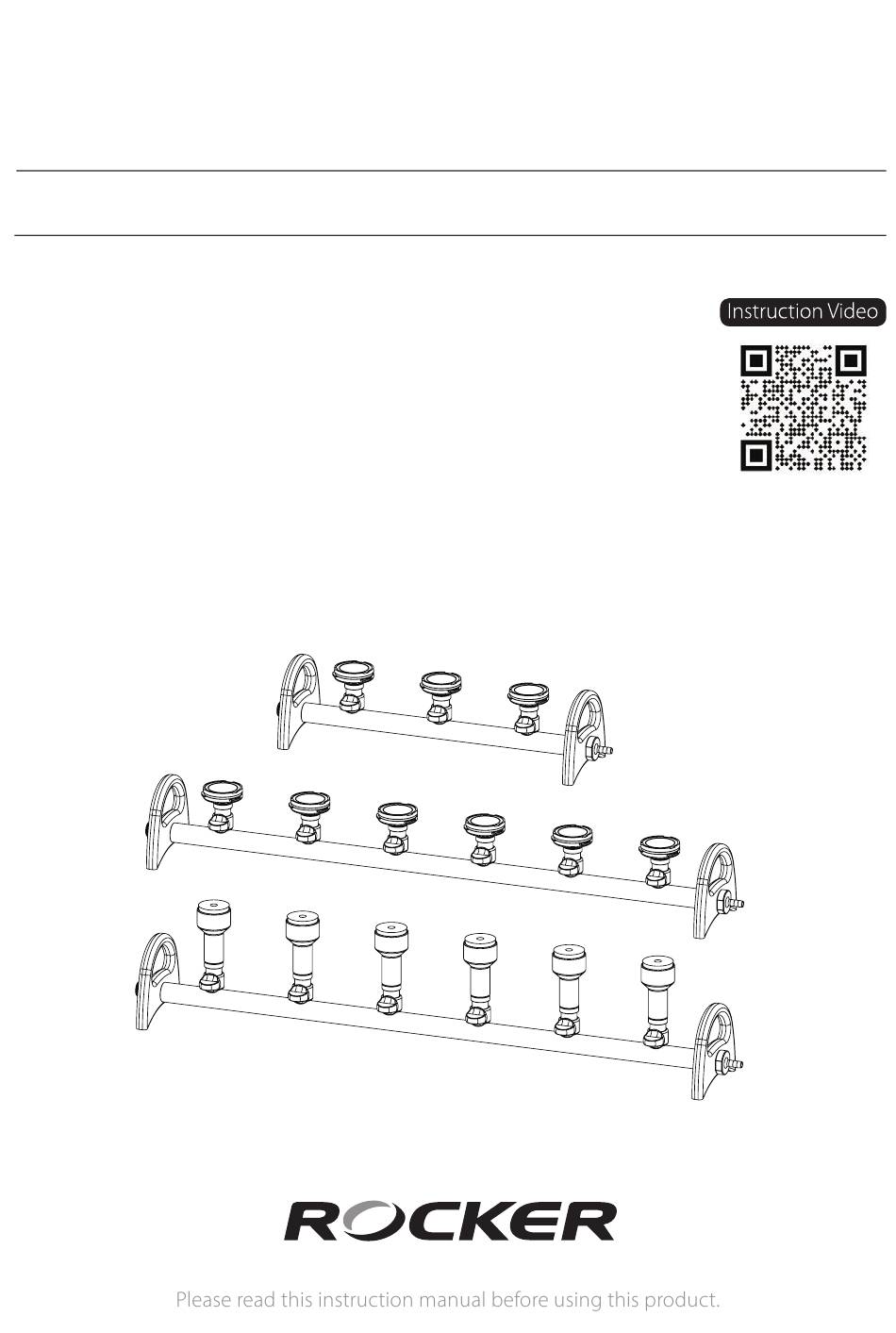

- Page 1 INSTRUCTION MANUAL Multi-Branch Manifold and Filtration System Model No. MultiVac 310 / 610 - MS MultiVac 300 / 600 - MS MultiVac 300 / 301 / 600 / 601 - MB MultiVac 310 / 610 - MS - T / A MultiVac 301 / 601 - MB - T / A...
-
Page 2: Important Notice
(a) Ambient temperature: 5~ 40 °C (b) Relative humidity: 80% RH Max. (c) Power supply of Alligator 200: 100-240V~, 50/60Hz, 44W Power supply of Rocker 400: 100-120V~, 50/60Hz or 200-240V~, 50/60Hz (d) Altitude: up to 2000 m (e) Pollution degree: II... - Page 3 Unpacking Please check if the package is complete without any damage before unpacking. When unpacking, please make sure you have all accessories that indicated on the list. If there is any problem, please keep the serial number along with packing case and contact your local distributor immediately for assistance.
- Page 4 II. Multi-Branch Manifold with Funnels MultiVac 301 - MB MultiVac 601 - MB Standard Package Includes: Model Stainless Steel Branches / Material Adaptor Funnel MultiVac 301 - MB 3 Places Stainless Steel Manifold 100 ml * 3 MultiVac 601 - MB 6 Places Stainless Steel Manifold 100 ml * 6 III.
- Page 5 Alligator 200, Diaphragm Liquid Pump MultiVac 610 - MS - A Silicone Tube Instruction Manual • Manifold with Rocker 400 Vacuum Pump MultiVac 301 / 601 - MB - T MultiVac 310 / 610 - MS - T Model Standard Package Includes:...
- Page 6 Control Valve Quick-Fit Hose Barb Handle Funnel Adaptor Adjustable Vent Valve • Adjustable vent valve exits only on stainless steel manifold. Rocker 400 Oil Free Vacuum Pump Alligator 200 Diaphragm Liquid Pump Position Designation Position Designation Power Switch Vacuum Gauge...
- Page 7 - Compatible with various kinds of filter holders with No. 8 silicone stopper. 2. Rocker SF Funnel Adaptor (Stainless Steel Manifold only) - Fitting to (left) Rocker SF 100 / 300 / 500 ml funnel and (right) Pall, Sentino® 4870 (100 ml), 4871 (250 ml) plastic funnel.
- Page 8 (1) Do not bend silicone tube or squeeze it with heavy objects to avoid poor drainage. (2) Do not pump dirty or impure solution before ltration to avoid clogging or damaging. Filtration System Assembly Diagram (Left: Alligator 200; Right: Rocker 400)
-
Page 9: Maintenance
II. With Rocker 400 Vacuum Pump A. Connect the installed manifold, vacuum bottle and Rocker 400 vacuum pump with 2 silicone tubes as shown above. B. After sample preparation, install the appropriate membrane in filter holder or funnel. C. Switch on the pump and pour the sample liquid into the funnel and open the control valve to “vertical”... -
Page 10: Troubleshooting
O-ring of O-ring of O-ring of O-ring of Funnel Adaptor Control Valve Plug Outlet Troubleshooting Problem Reason and Solution Loose plug Reconnect plug to socket firmly. Wrong voltage Reconnect to power specified on name plate. Failed to start ... -
Page 11: Ordering Information
Ordering Information 180301-02 MultiVac 301-MB, 3 Places SS Manifold with Rocker SF funnel adaptor, 100 ml SF funnel x 3 180601-02 MultiVac 601-MB, 6 Places SS Manifold with Rocker SF funnel adaptor, 100 ml SF funnel x 6 180300-01 MultiVac 300-MS, 3 Places SS Manifold with No.8 stopper funnel adaptor 180600-01 MultiVac 600-MS, 6 Places SS Manifold with No.8 stopper funnel adaptor... - Page 12 Rocker Scienti c Co., Ltd. Tel: +886-2-26033311 Fax: +886-2-26036622 E-mail:export@rocker.com.tw https://www.rocker.com.tw...
