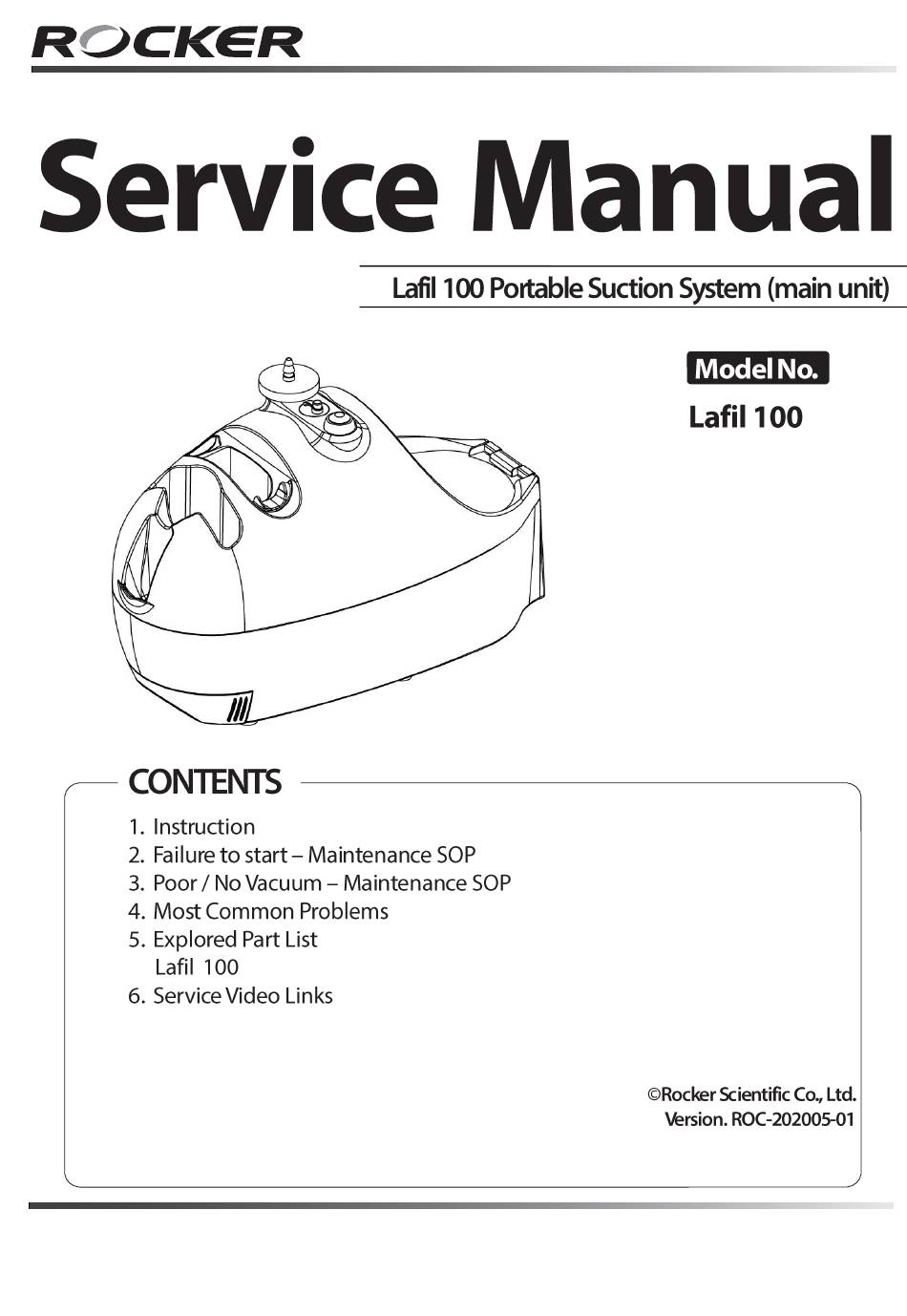

Rocker Lafil 100 Service Manual

Portable suction system (main unit)
Hide thumbs Also See for Lafil 100:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lafil 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Rocker Lafil 100

Summary of Contents for Rocker Lafil 100

  • Page 2: Applicable Models

    The main unit of Lailf 100 uses a brushless motor, please watch out for both positive terminal (+) and negative terminal (-) when wiring to avoid burning out motor.  Applicable Models: Lafil 100  Tools Preparation: Screwdriver, Allen key, needle nose pliers, soldering iron, Wire Stripper/Cutter ...

  • Page 3: Circuit Diagram

     Circuit Diagram: Power Switch DC Socket Power Switch DC Socket Socket Socket Diode 1N5817 Diode 1N5817 Vacuum Lithium Battery Vacuum Pump Module Pump With Lithium battery module W/O. Lithium battery module Lafil100 Case Outlet Inlet Connector Connector Vacuum Pump Outlet Inlet Power Socket pin diagram...
  • Page 4 Failure to start – Maintenance SOP Problem in starting pump Check Valve Check power Check Check Power Check bearing plate and transformer and shaft switch connection port diaphragm Ensure the Remove Check if the power transformer is Remove the Open side diaphragm head normal and connection port is...
  • Page 5 Poor / No Vacuum - Maintenance SOP Poor Vacuum Measure vacuum Check diaphragm level with a precise block vacuum gauge Remove diaphragm head Remove the case then disassemble diaphragm block Check if any liquid Check the vacuum residues remain level of the pump on diaphragm directly block...

  • Page 6: Most Common Problems

    Most Common Problems Common Problem Cause Solution Check if the power adaptor is connected properly; if Connect with the power adaptor and the main unit is supplied with lithium battery module switch on again. then check if the battery is running out of power Check if the power supply conforms to power specified Use the power supply specified on the on main unit.
  • Page 7 Exploded Part List Lafil 100 Index Description Quantity Index Description Quantity Index Description Quantity Upper Case Sponge for motor Disc filter Bottom Case Sponge for base Lithium battery module Liquid collection tray Sponge for battery Stand (RF012) Inlet tubing connector...
  • Page 8 Service Video Links Model No. Subject Video Link Lafil 100 Disassembly https://drive.google.com/file/d/1CRqUIAG4bSB9BaIA8RWxbiRlubbRh8fA/view?usp=sharing Lafil 100 Assembly https://drive.google.com/file/d/1yitoMNLiJVog4Sy4kwqiGQ-8bYJbOh--/view?usp=sharing Lafil 100 Replacement of valve plate https://drive.google.com/file/d/1Vzb8ix8OrJfAFFY2IQRtiLzBSLU-irgX/view?usp=sharing...
